Кожух сцепления для мотоциклов KTM 250 SXF FACTORY EDITION ENGINE (2015)

Москва и регионы России

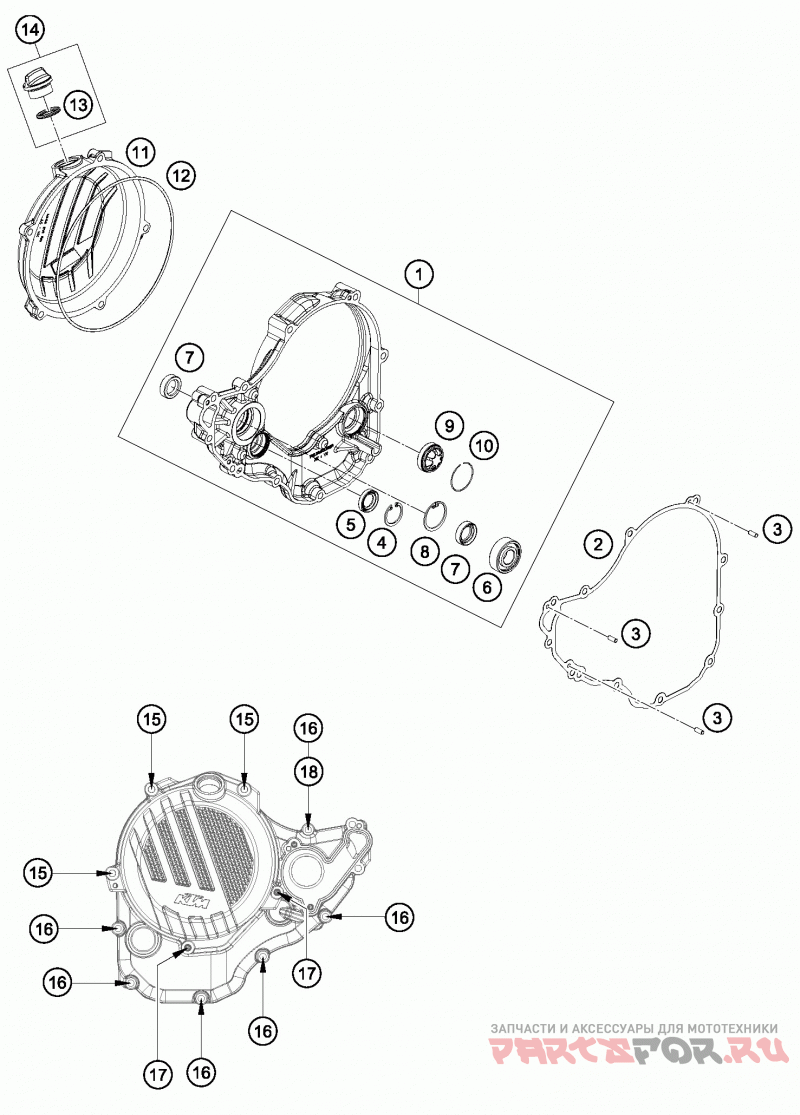

Кожух сцепления

KTM 250 SXF FACTORY EDITION ENGINE

Кожух сцепления

#

oem код

название

цена

1

Clutch Cover Cpl.

Clutch Cover Cpl.

2

Clutch Cover Gasket

Clutch Cover Gasket

3

Needle Rol.din5402 Nrb 4x9, 8

Needle Rol.din5402 Nrb 4x9, 8

4

Circlip Din0472-24x1.2

Circlip Din0472-24x1.2

5

Shaft Seal Ring 14x24x5 Viton

Shaft Seal Ring 14x24x5 Viton

6

Ball Bearing 6202 C0 2

Ball Bearing 6202 C0 2

7

Shaft Seal Ring 15x30x4.5 Baud

Shaft Seal Ring 15x30x4.5 Baud

8

Circlip 30x1, 2

Circlip 30x1, 2

9

Oil Sight Glass

Oil Sight Glass

10

Стопор

Стопор

11

Clutch Outside Cover

Clutch Outside Cover

12

Clutch Cover Gasket Outside

Clutch Cover Gasket Outside

13

Кольцо 19,00x3,00

Кольцо 19,00x3,00

14

Oil Filler Cap M24x3 With O-r

Oil Filler Cap M24x3 With O-r

15

Hh Collar Screw M6x45 Tx30

Hh Collar Screw M6x45 Tx30

16

Воротник Винт M6x25 Tx30

Воротник Винт M6x25 Tx30

17

Hh Collar Screw M6x20 Tx30

Hh Collar Screw M6x20 Tx30

18

Cu-seal Ring Din7603-6x10x1

Cu-seal Ring Din7603-6x10x1
