Рама

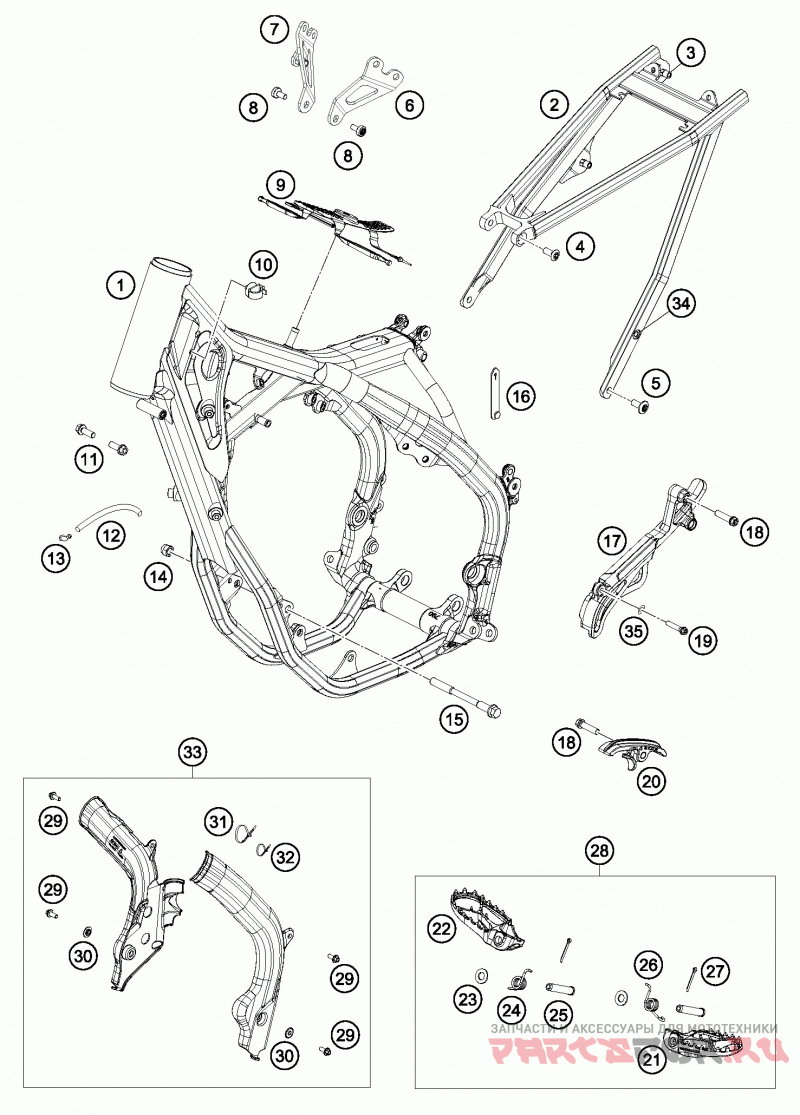

KTM 250 SXF FACTORY EDITION CHASSIS

KTM
#oem кодцена
1
79003001000EB
Frame "790p3" El.orange
2
79003002000
Subframe 2016
3
77303139000
Blind Rivet Nut Em6-60lf/hx
4
0019080206S
Flat Head Screw M. Isa45 M8x20
5
79003003000
Special Screw M8x18 Torx45 Ss
6
79003013000
Engine Brace L/s
7
79003014044
Reinforcing Right Cpl.
8
0035080156S
Ah-collar Screw M8x15 Torx45
9
79007012000
Tank Rest Rubber
10
58111076000
Cable Support Khs Nr.150-47610
11
0025080166S
Hh Collar Screw M8x16 Tx40
12
55007016001
Pvc-hose 7x10 Per Meter
13
50303089000
Angle Piece '97
14
54310086100
Self Locking Nut M10 Cu Ws=14
15
77203014000
Engine Brac.scr. M10x115
16
60011093075
Rubber Cable Tie 75mm 03
17
79003096000
Engine Sprocket Cover 250/350
18
0025080306
Hh Collar Screw M8x30 Tx40
19
0025060406
Hh Collar Screw M6x40 Tx30
20
79003053000
Chain Slider Lower Part Cpl.
21
79003040000
Footrest L/s 2016
22
79003041000
Footrest R/s 2016
23
0125100003
Washer Din0125-a10, 5
24
79003044000
Footrest Spring R/s 2016
25
54803044000
Pin For Foot Ped 51.5x9.8 Mm
26
79003045000
Footrest Spring L/s 2016
27
0094032253
Pin Din0094-3, 2x25 Steel
28
79003040033
Foot Pegs Set Cpl. 2016
29
0014050123
Hh Collar Screw M 5x12 Ws=6
30
54803092060
Bush F. Frame Protection 03
31
44011076305
Cable Tie 300/4, 8mm Black
32
44011076140
Cable Tie 140/2, 5mm Black
33
7900309400033
Frame Protection Set Black
34
79003002080
Blind Rivet Nut M6 Knurled
35
0125060003
Washer Din0125-a 6, 4
