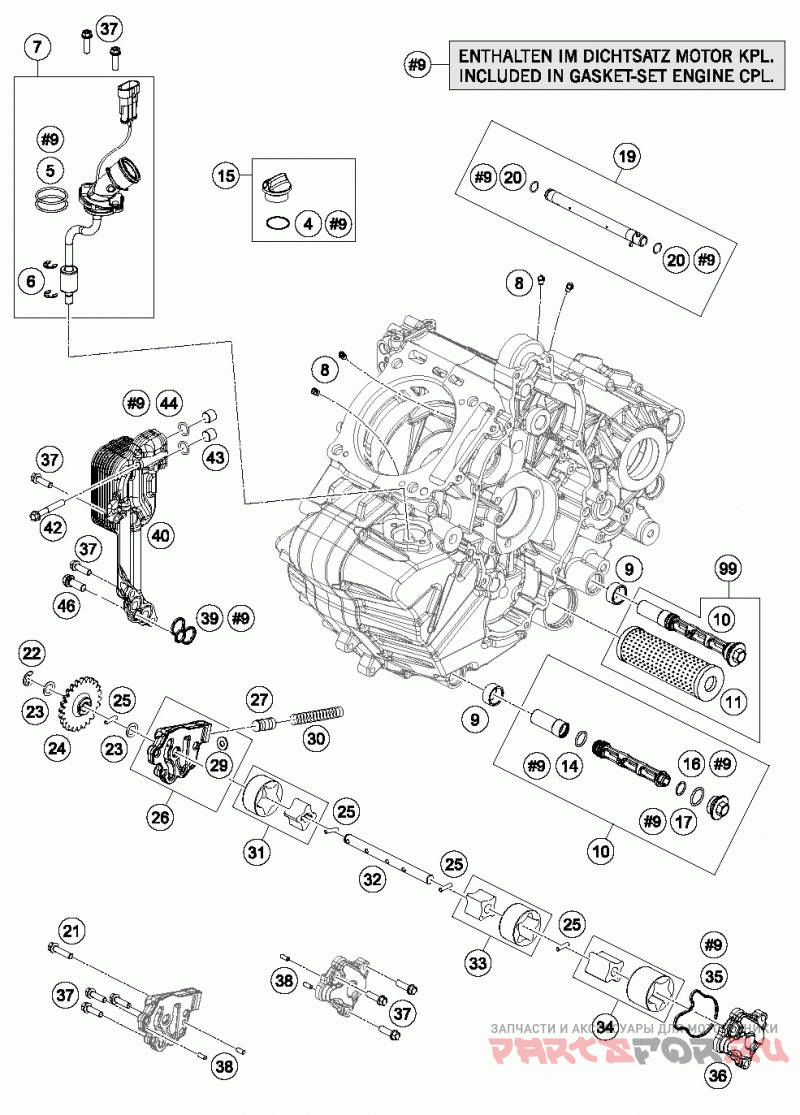

Масляная система

KTM 1290 SUPERDUKE R ORANGE ENGINE

KTM
#oem кодцена
4
0770191015
Кольцо 19,00x3,00
5
0770300020
O-ring 30x2, 0 Fpm
6
0799070000
Tab Washer Din6799-rs 7, 0
7
61338085000
Oil Infilling Pipe Cpl.
8
60030063070
Oil Jet 70 M5
9
61238017000
Oil Screen Bushing 08
10
61238021100
Oil Screen Cpl.
11
61338015100
Масляный Фильтр
14
0770140200
O-ring 14, 00x2, 00
15
58030120000
Oil Filler Cap M24x3 With O-r
16
0770125015
O-ring 12, 5x1, 5 Nbr
17
0770170200
O-ring 17, 00x2, 00
19
61230065000
Oil Injection Tube Cpl. 08
20
0770010010
Кольцо 10,00x1,00
21
0025060256
Воротник Винт M6x25 Tx30
22
0799080000
Tab Washer Din6799 Rs8
23
60038007010
Washer 10x16x0, 5 03
24*
60038001324
Oil Pump Gear 24z
25
0402041580
Needle Roller Nrb 4x15, 8 G2
26
61238009144
Pressure Pump Cover Cpl.
27
60038028000
Control Piston Lc8 03
29
50337073000
Регулировочная прокладка
30
61238026000
Control Spring
31
60038009000
Rotor-set 19mm 03
32
61238002000
Oil Pump Shaft 08
33
61238011100
Rotor Set 22mm
34
61238010100
Rotor Set 30mm
35
61238008150
Molded Ring Suction Pump Cover
36
61238008200
Suction Pump Cover
37
0025060206
Hh Collar Screw M6x20 Tx30
38
0402050980
Needle Roller Din5402 5x9, 8
39
61238051000
Molded Ring
40
6923805000033
Oil Cooler Cpl.
42
0025060506
Hh Collar Screw M6x50 Tx30
43
61238052000
Втулка
44
0770012021
O-ring 12x2 Viton Green
46
0025080206
Hh Collar Screw M8x20 Tx40
99
00050000068
Oilfilter Service Kit
