Рама для мотоциклов KTM 1290 SUPERDUKE R ORANGE CHASSIS (2015)

Москва и регионы России

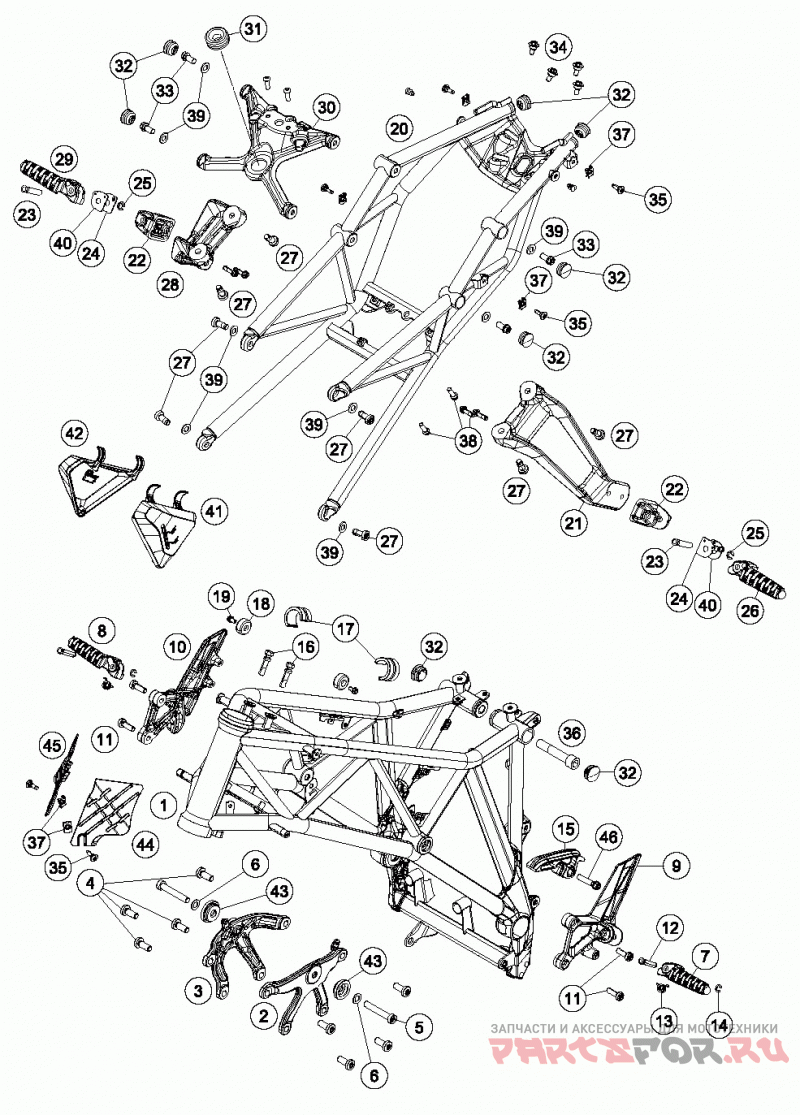

Рама

KTM 1290 SUPERDUKE R ORANGE CHASSIS

Рама

#

oem код

название

цена

1

Frame "613na" Electr.-orange

Frame "613na" Electr.-orange

2

Engine Supportl/s Black

Engine Supportl/s Black

3

Engine Support R/s Black

Engine Support R/s Black

4

Ah-collar Screw M10x24 Isa45

Ah-collar Screw M10x24 Isa45

5

Ah-collar Screw M10x60 Isa45

Ah-collar Screw M10x60 Isa45

6

Washer 18x10, 5x1, 6

Washer 18x10, 5x1, 6

7

Footrest Front L/s 13

Footrest Front L/s 13

8

Footrest Front R/s 13

Footrest Front R/s 13

9

Footrest Support Front L/s Bl.

Footrest Support Front L/s Bl.

10

Footrest Support Front R/s Bl.

Footrest Support Front R/s Bl.

11

Ah-collar Screw M8x25 Isa45

Ah-collar Screw M8x25 Isa45

12

Bolt For Footrest Rear

Bolt For Footrest Rear

13

Spring Footrest Front 05

Spring Footrest Front 05

14

Tab Washer Din6799-rs 6, 0

Tab Washer Din6799-rs 6, 0

15

Chain Sliding Block-frame

Chain Sliding Block-frame

16

Tamper-proof Screw 07

Tamper-proof Screw 07

17

Spacer Fuel Tank 05

Spacer Fuel Tank 05

18

Tank Roller 12x26x12 '98

Tank Roller 12x26x12 '98

19

Hh Collar Screw M6x10 Tx30

Hh Collar Screw M6x10 Tx30

20

Sube Frame White

Sube Frame White

21

Footrest Support Rear L/s Bl.

Footrest Support Rear L/s Bl.

22

Footrest Mounting Rear Black

Footrest Mounting Rear Black

23

Bolt For Footrest Rear

Bolt For Footrest Rear

24

Engage Panel Footrest R/s 03

Engage Panel Footrest R/s 03

25

Tab Washer Din6799-rs 6, 0

Tab Washer Din6799-rs 6, 0

26

Footrest Rear L/s Cpl.

Footrest Rear L/s Cpl.

27

Ah-collar Screw M8x20 Isa45

Ah-collar Screw M8x20 Isa45

28

Footrest Support Rear R/s Bl.

Footrest Support Rear R/s Bl.

29

Footrest Rear R/s Cpl.

Footrest Rear R/s Cpl.

30

Cross Brace Rear Black

Cross Brace Rear Black

31

Резиновый патрубок

Резиновый патрубок

32

Plug Sfl 22x0, 8-3, 0

Plug Sfl 22x0, 8-3, 0

33

Hh Collar Screw M8x16 Tx40

Hh Collar Screw M8x16 Tx40

34

Special Screw M6x15x5, 5

Special Screw M6x15x5, 5

35

Special Screw M5x17

Special Screw M5x17

36

Screw M14x1, 5 L=73mm 03

Screw M14x1, 5 L=73mm 03

37

Range Change Metal Nut M5

Range Change Metal Nut M5

38

Hh Collar Screw M8x20 Tx40

Hh Collar Screw M8x20 Tx40

39

Washer Din0125-a 8, 4

Washer Din0125-a 8, 4

40

Engage Panel Footrest L/s 03

Engage Panel Footrest L/s 03

41

Knee Pad L/s

Knee Pad L/s

42

Knee Pad R/s

Knee Pad R/s

43

Bushing Motor Mounting

Bushing Motor Mounting

44

Frame Cover L/s

Frame Cover L/s

45

Frame Cover R/s

Frame Cover R/s

46

Hh Collar Screw M8x35 Tx40

Hh Collar Screw M8x35 Tx40

47

Cable Tie 200/3, 6mm Black

Cable Tie 200/3, 6mm Black

47

Orange Cable Ties 100pk

Orange Cable Ties 100pk
