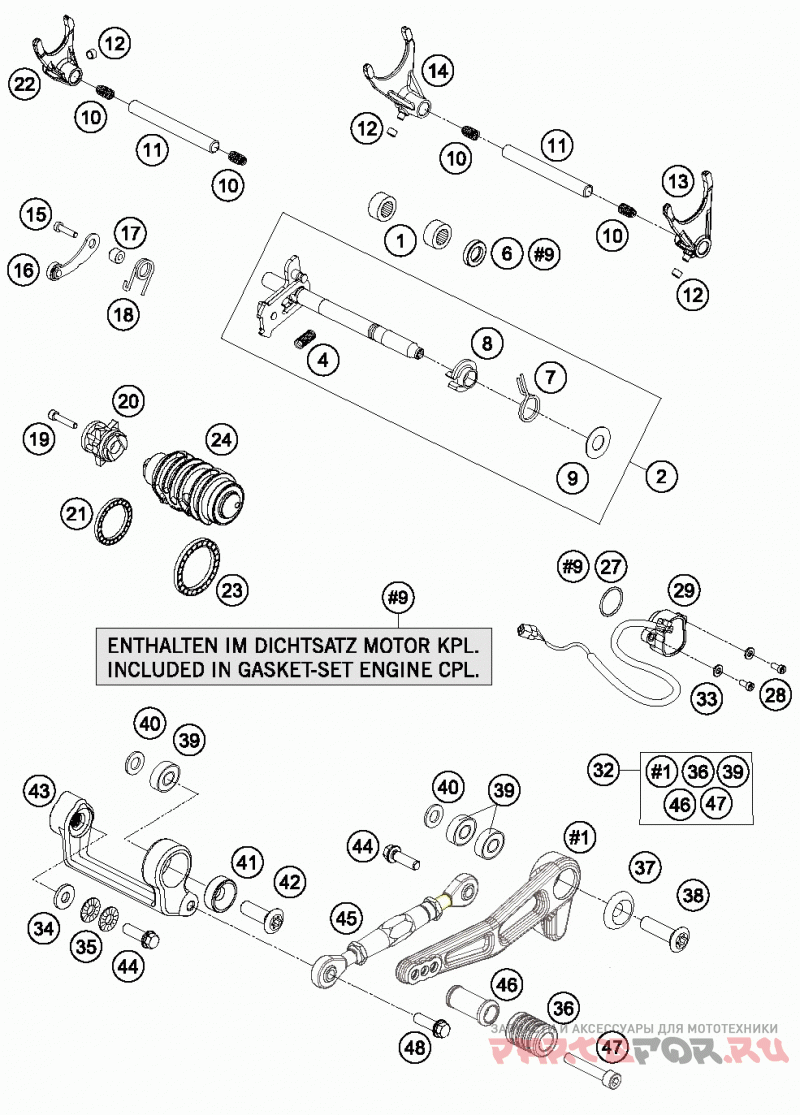

Механизм переключения

KTM 1290 SUPERDUKE R BLACK ENGINE

KTM
#oem кодцена
1
54632095000
Needle Bear.hk 1412 14x20x12
2
61234005333
Shift Shaft Cpl.
4
56534013100
Tensioning Spring 0, 8mm
6
0760142460
Shaft Seal Ring 14x24x6 B
7
61234014000
Returnspring 2mm
8
54634020000
Spring Guide
9
54634050000
Stop Disk 14x30x1
10
58038023200
Pressure Spring 0, 9mm
11
59034020000
Shift Rail 11, 8x105mm
12
50334018100
Shifting Roller 6x8x5, 2
13
61234002100
Shift Fork 2-3 Gear
14
61234001000
Shifting Fork 08
15
0024060206
Hh Collar Screw M6x20 Tx30
16
75034024044
Locking Lever Cpl. 07
17
75034052000
Sleeve For Locking Lever 07
18
61234023000
Spring - Locking Lever
19
0912060303
Ah Screw Din0912-m 6x30
20
61234015444
Shift Drum Locating Cpl.
21
0625618050
Ball Bearing 61805 C3
22
61234003200
Shift Fork 5-6 Gear
23
0625068080
Grooved Ball Bearing 6808 Jrc3
24*
60334012100
Shifting Drum Cpl.
27
07700240251
Уплотнительное кольцо 24x2, 5 витон
28
0984050163S
Cyl. Screw Din6912 M5x16 8.8
29
60211023100
Gear-position Sensor
32
6133403104433S
Shift Lever Cpl.
33
0125050003
Шайба Din0125-в 5, 3
34
50232050001
Steel Washer 6, 4x17x3
35
50233041000
Pair Of Washers M 6 Nordlock
36
61034035000
Rubber For Shift Lever 05
37
61334041000
Special Washer D=23x7, 2mm
38
0035080306S
Ah-collar Screw M8x30 Isa45
39
0625006087
Grooved Ball Bear. 608 2rs C3
40
0125080003
Washer Din0125-a 8, 4
41
61334040000
Special Washer D=20x6, 8mm
42
0019080266S
Counter-sunk Screw Isa45 M8x26
43
6103403000033S
Relay Lever Black 07
44
0025060206S
Hh Collar Screw M6x20 Tx30
45
61334036044
Shift Rod Cpl.
46
69034032000
Step Plate Shifting Lever
47
0912060353
Ah Screw Din0912-m 6x35
48
0025060166S
Hh Collar Screw M6x16 Isa 30
