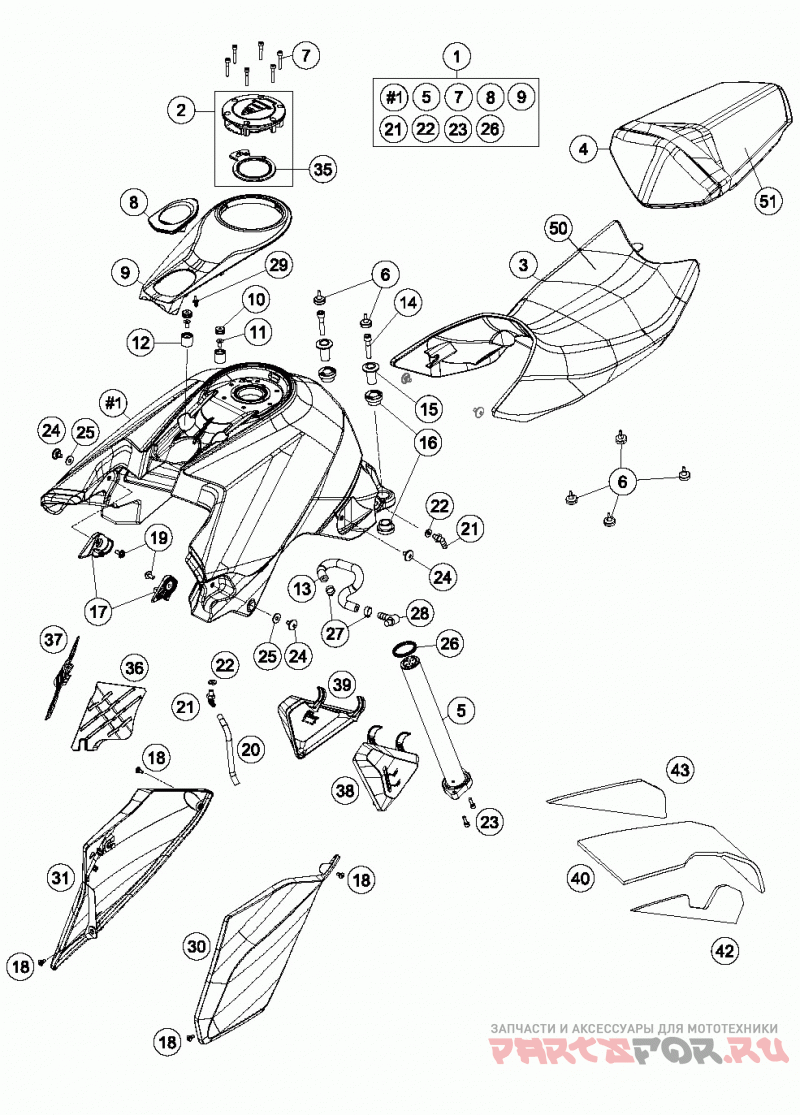

Бак,сидение

KTM 1290 SUPERDUKE R BLACK CHASSIS

KTM
#oem кодцена
1
6130701304430A
Fuel Tank Ass. Sd Black 14
2
61307008100
Tank Cap Cpl.
3
61307040000
Seat Driver Cpl.
4
61307047000
Seat Pillion Cpl.
5
61307080000
Gas Level Sensor
6
60006001021
Distance Rubber Airbox 03
7
0912050253
Ah Screw Din0912-m 5x25
8
61307059000
Cover Ignition Lock
9
61307058000
Cover Fuel Tank
10
76008052050
Rubber Sleeve 5x7.6x13mm
11
0991060126
Flat Head Screw Din7991-m 6x12
12
76008052000
Bushing 13x20x18, 5mm
13
61307017050
Fuel Hose Pump
14
0912080403
Ah Screw Din912 M8x40
15
61007060000
Bearing Bushing Outside 05
16
61007065000
Tank Rubber Bushing Front 05
17
61307021044
Tank Mounting Front L/s & R/s
18
69008021160
Специальный Винт М5х12
19
0024060136
Hh Collar Screw M6x13 Tx30
20
60007126001
Hose 5,4x9,4 Nbr, Meter
21
60007024000
Connect.piece F.overflow M7 03
22
60007024050
Gasket For Connecting Piece 03
23
0912050163
Ah Screw Din0912-m 5x16
24
58407011100
Screw For Seat M6x11, 5/8
25
0021060003
Washer Din9021-a 6, 4
26
60307080090
Gasket Fuel Level Sensor
27
00050157706
Variable One-ear Clamp 15, 7mm
28
7720701000030
Plug Cpc
29
54806008051
Quick Release-nipple 03
30
61308050000CAB
Tank Spoiler L/s Black 2014
31
61308051000CAB
Tank Spoiler Black 2014
35
60307008190
Gasket Tank Cap
36
61303085000
Frame Cover L/s
37
61303086000
Frame Cover R/s
38
61303091000
Knee Pad L/s
39
61303092000
Knee Pad R/s
40
61306095010
Insulation Mat Middle
42
61306095020
Insulation Mat L/s
43
61306095030
Insulation Mat R/s
50
61307040050
Seat Cover
51
61307047050
Seat Cover
