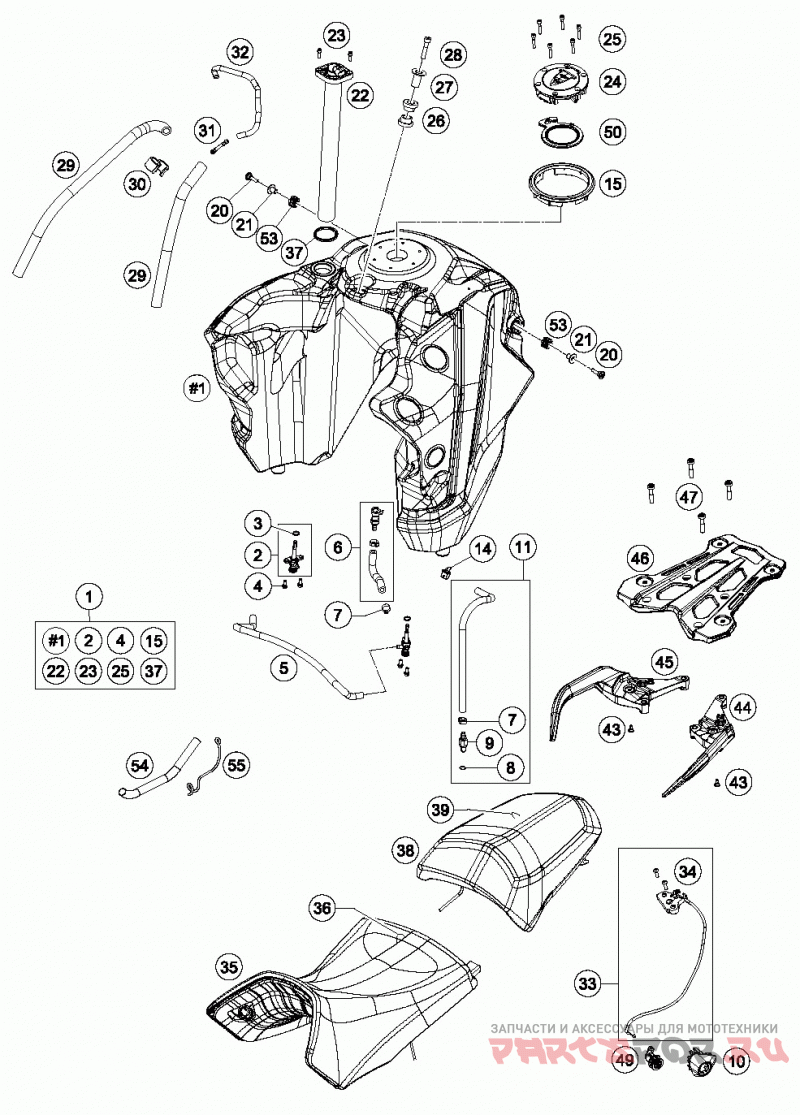

Бак,сидение

KTM 1290 ADV WHITE CHASSIS

KTM
#oem кодцена
1
60407013044BGA
Fuel Tank Cpl.
2
58507003200
Fuel Cock Cpl.
3
0770020130
O-ring 1, 78x10, 82x14, 38 2-013
4
0025060126
Hh Collar Screw M6x12 Tx30
5
60307018000
Expansion Hose Fuel Tank
6
60307017000
Fuel Hose Tank/connector
7
00050157706
Variable One-ear Clamp 15, 7mm
8
58507012000
Уплотнительное кольцо витон Ф. штепсельной вилки cpc 05
9
5850701030030
Plug Cpc Black 05
10
60307053000
Seat Lock Cover
11
60307016000
Fuel Hose 1 Cpl.
12
0024060206
Hh Collar Screw M6x20 Tx30
14
00049140121
Clamp Std Dn14
15
60307009000
Tank Cap Ring
20
60307025000
Special Screw M6x32.5 Isa 40
21
69007028000
Collar Bush. 6, 2x10x21x14mm 08
22
60307080000
Gas Level Sensor
23
0912050163
Ah Screw Din0912-m 5x16
24
60307008100
Крышка Бака
25
0912050253
Ah Screw Din0912-m 5x25
26
61007065000
Tank Rubber Bushing Front 05
27
61007060000
Bearing Bushing Outside 05
28
0912080403
Ah Screw Din912 M8x40
29
60007126001
Hose 5,4x9,4 Nbr, Meter
30
60038039000
Distance Holder 10/10 Black
31
69015019010
Hose Connection Straight
32
60307008150
Hose Tank Breat.
33
60307050000
Seat Lock Cpl.
34
0738060201
Flat Head Screw Iso7380 M6x20
35
60407040000
Driver Seat Heated
36
60407040050
Seat Cover
37
60307080090
Gasket Fuel Level Sensor
38
60407047000
Pillion Seat Heated
39
60407047050
Seat Cover Pillion
43
69013099050
Screw F. Expansion Tank
44
60312008100KBA
Grip L/s D. Titan.
45
60312009200KBA
Handgrip R/s Titan
46
6031201000033S
Baggage Carrier Bridge
47
0035080406
Ah-collar Screw M8x40 Isa45
49
60307050020
Lock Cylinder Seat Lock
50
60307008190
Gasket Tank Cap
53
69007027000
Rubber Sleeve Tank Mount 08
54
60307016010
Heat Protection
55
60307037000
Wire Holder Fuel Hose
