Рама

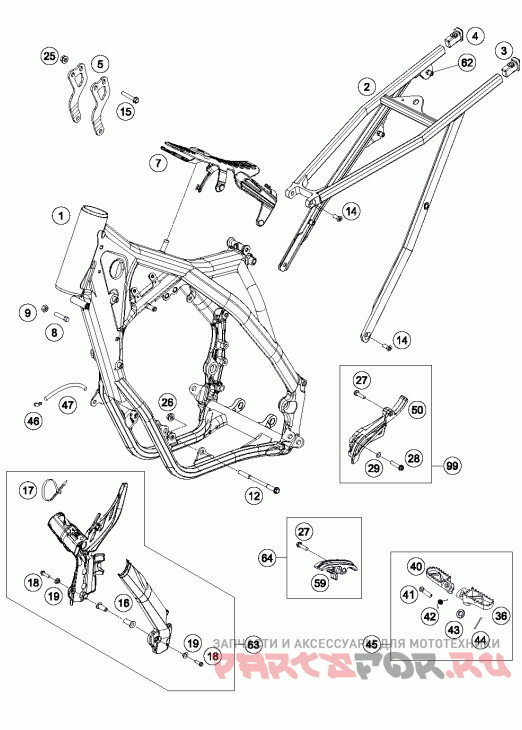

KTM 125 SX CHASSIS

KTM
#oem кодцена
1*
5150310140004
Frame "515n3" Orange 2015
2
77203002000
Sub Frame Sx
3
78103002010
Sub Frame Application Left
4
78103002020
Sub Frame Application Right
5
51503113000
Engine Brace 125 Sx
7
77207012000
Tank Rest Rubber
8
59001037000
Special Screw M8x26 Ws=10
9
0934080003
Hexagon Nut Din0934-m 8
12
54603013000
Engine Brac.scr. M10x105 Ws=13
14
0019080206S
Flat Head Screw M. Isa45 M8x20
15
56530079000S
Hh Collar Screw M8x44 Ws13
16
54803092050
Blind Plug-in Nut M5 Wn 22a 03
17
44011076140
Cable Tie 140/2, 5mm Black
17
44011076305
Cable Tie 300/4, 8mm Black
18
0738050250
Cou.sunk Scr. Ah Iso7380 M5x25
19
54803092060
Bush F. Frame Protection 03
25
06923080003
Hexagon Nut Din En1661 M8 Sw13
26
54310086100
Self Locking Nut M10 Cu Ws=14
27
0025080306
Hh Collar Screw M8x30 Tx40
28
0025060406
Hh Collar Screw M6x40 Tx30
29
0125060003
Washer Din0125-a 6, 4
36
78003040050
Footrest L/s 08
40
78003041050
Footrest R/s 08
41
54803044000
Pin For Foot Ped 51.5x9.8 Mm
42
54603041000
Footrest Spring L/s & R/s
43
0125100003
Washer Din0125-a10, 5
44
0094032253
Pin Din0094-3, 2x25 Steel
45
78003040033
Footrest L/s + R/s Cpl. 09
46
50303089000
Angle Piece '97
47
55007016001
Pvc-hose 7x10 Per Meter
50
54803096000
Sprocket Cover 250 Sx 07
59
77203053000
Chain Slider Lower Part Cpl.
62
77303139000
Blind Rivet Nut Em6-60lf/hx
63
77203094000
Plastic Frame Protection Set
64
77203053010
Chain Sliding Kit Below Cpl.11
99
54803096010
Sprocket Cover Kit
