Бак,сидение

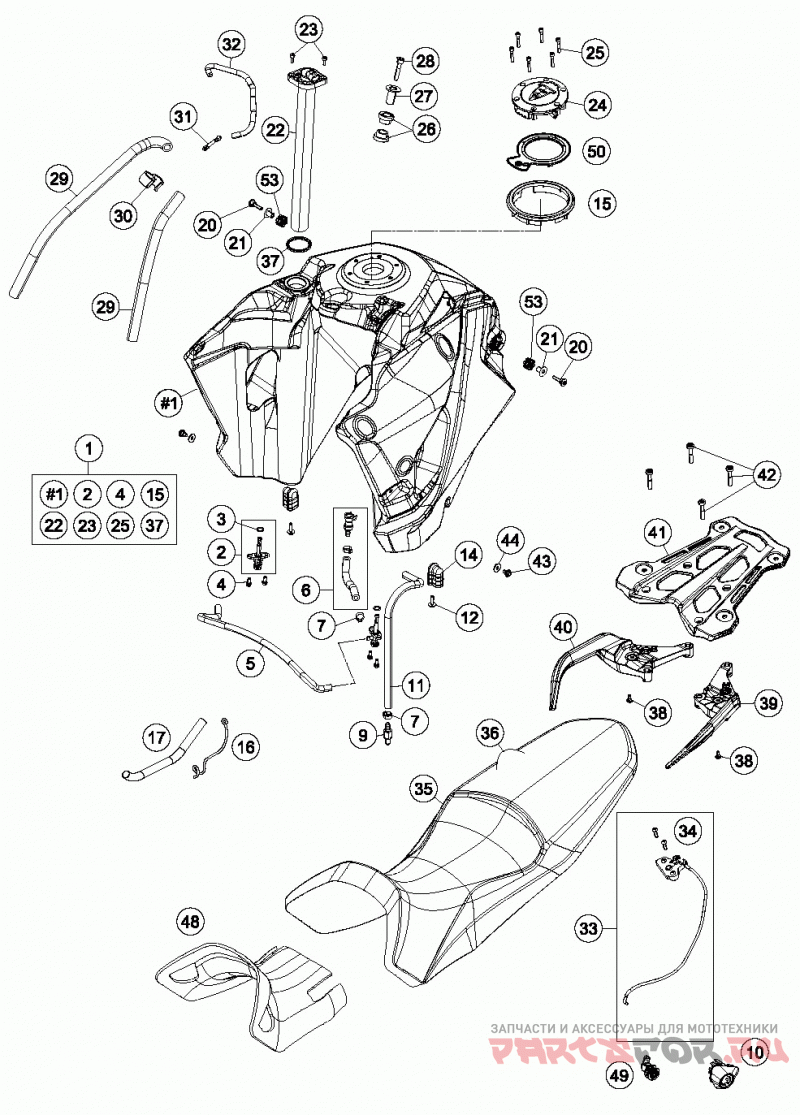

KTM 1190 ADV R CHASSIS

KTM
#oem кодцена
1
6030711314433A
Fuel Tank Cpl.
2
58507003200
Fuel Cock Cpl.
3
0770020130
O-ring 1, 78x10, 82x14, 38 2-013
4
0025060126
Hh Collar Screw M6x12 Tx30
5
60307018000
Expansion Hose Fuel Tank
6
60307017000
Fuel Hose Tank/connector
7
00050157706
Variable One-ear Clamp 15, 7mm
8
60307017050
Fuel Hose Tank/connector
9
5850701030030
Plug Cpc Black 05
10
60307053000
Seat Lock Cover
11
60307016050
Fuel Pipe 1
12
0024060206
Hh Collar Screw M6x20 Tx30
14
60307020000
Tank Rubber
15
60307009000
Tank Cap Ring
16
60307037000
Wire Holder Fuel Hose
17
60307016010
Heat Protection
20
60307025000
Special Screw M6x32.5 Isa 40
21
69007028000
Collar Bush. 6, 2x10x21x14mm 08
22
60307080000
Gas Level Sensor
23
0912050163
Ah Screw Din0912-m 5x16
24
60307008000
% Tank Cap
25
0912050253
Ah Screw Din0912-m 5x25
26
61007065000
Tank Rubber Bushing Front 05
27
61007060000
Bearing Bushing Outside 05
28
0912080403
Ah Screw Din912 M8x40
29
60007126001
Hose 5,4x9,4 Nbr, Meter
30*
60038039000
Distance Holder 10/10 Black
31*
69015019010
Hose Connection Straight
32
60307008150
Hose Tank Breat.
33
60307050000
Seat Lock Cpl.
34
0738060201
Flat Head Screw Iso7380 M6x20
35
60307140100
Seat R
36
60307140050
Seat Covering
37
60307080090
Gasket Fuel Level Sensor
38
69013099050
Screw F. Expansion Tank
39*
6031200810030
Grip L/s Black
40*
6031200920030
Hand Grip R/s
41
6031201000033S
Baggage Carrier Bridge
42
0035080406
Ah-collar Screw M8x40 Isa45
43
59001092050
Special Screw M6x12, 5 Ws=8
44
0021060003
Washer Din9021-a 6, 4
48
60307040080
Heat Protector
49
60307050020
Lock Cylinder Seat Lock
50
60307008190
Gasket Tank Cap
53
69007027000
Rubber Sleeve Tank Mount 08
