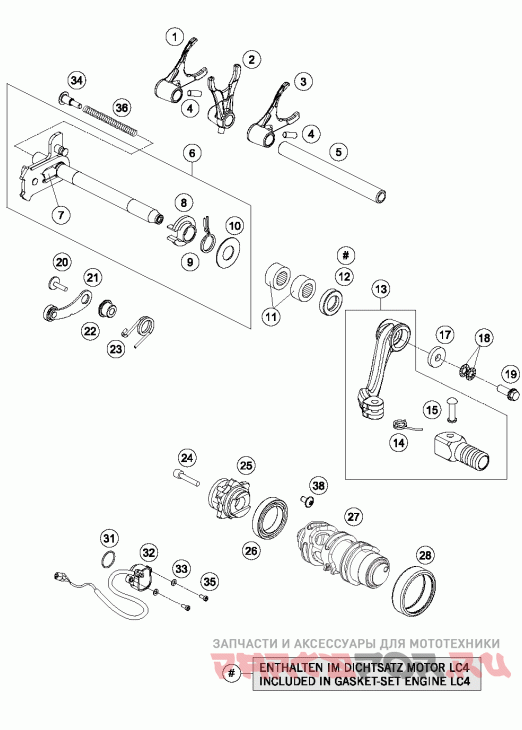

Механизм переключения

KTM 690 ENDURO-R ENGINE

KTM
#oem кодцена
1*
75034002100
Shift Fork F. Slidinggear 5 12
2*
75034001100
Shift Fork F. Slidingg. 3/4 12
3*
75034003100
Shift Fork F. Slidinggear 6 12
4
0402061480
Needle Roller Din5402 6x14, 8
5
75034019000
Shiftrail 07
6*
75034005133
Вал переключения в сборе
7
56534013100
Tensioning Spring 0, 8mm
8
54634020000
Spring Guide
9*
54834014000
Return Spring 03
10
75034050000
Stop Disk 14x30x1, 5 Steel
11
54632095000
Needle Bear.hk 1412 14x20x12
12
0760142461
Shaft Seal Ring 14x24x6b Viton
13*
75034031000
Shift Lever Cpl. 07
14
75034032000
Shifting Lever Spring
15
54634031050
Bolt 6x25 For Shift Lever
17
50232050001
Steel Washer 6, 4x17x3
18
50233041000
Pair Of Washers M 6 Nordlock
19
59009062016
Special Screw M6x16 Ws=8 10.9
20
0024060206
Hh Collar Screw M6x20 Tx30
21
75034024044
Locking Lever Cpl. 07
22
75034052000
Sleeve For Locking Lever 07
23
60034023000
Arresting Lever Spring 03
24
0912060303
Ah Screw Din0912-m 6x30
25
75034015000
Shift Drum Locating Cpl. 07
26
0625618050
Ball Bearing 61805 C3
27*
76034112044
Shifting Drum Cpl.
28
0618354212
Needle Bear Hk3512 35x42x12
31*
0770253240
O-ring 25, 30x2, 40 Nbr70
32*
60211023100
Gear-position Sensor
33*
0984050163S
Cyl. Screw Din6912 M5x16 8.8
34
75034006000
% Spacer
35
0125050003
Шайба Din0125-в 5, 3
36
75034007000
% Spring For Operating Shaft
38
073800501001
%flat Head Screw Iso7380 M5x10
