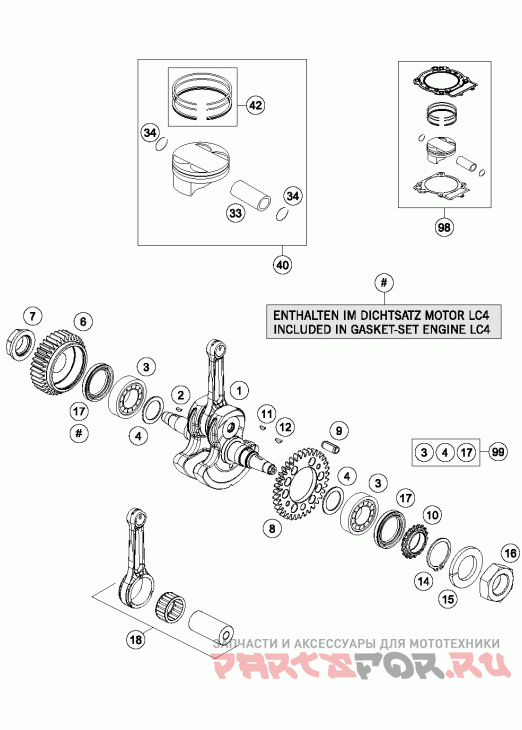

Коленвал и поршень

KTM 690 ENDURO-R ENGINE

KTM
#oem кодцена
1*
76030018100
Crankshaft Cpl.
2
0888040050
Woodruff Key Din6888 4x5x13
3
75030018150
Cyl.roller Bearing Nj207 Ecpc4
4
56530081000
Shim Washer 36x48x0, 10
4
56530081100
Shim Washer 36x48x0, 15
4
56530081200
Shim Washer 36x48x0, 20 Steel
4
56530081300
Shim Washer 36x48x0, 30
6
75032000102
Primary Gear 36t.
7
75030029100
Nut For Primary Gear
8*
75030055100
Drive Wheel Balancing Shaft
9
0749080300
Tension Pin Iso13337 8x30
10*
75036014100
Timing Pinion
11
0888030050
Шпонка 3x5x13
12
6946005
Шпонка 5x6
14
0471300151
Circlip Din0471-30x1, 5 Niro
15
58132072000
Гровер
16
0936181505
Hexagon Nut Din0936-m18x1, 5 R.
17
0760355070
Shaft Seal R.35x50x7b Viton
18*
75330015144
Con-rod Repair Kit
33
61230033000
Piston Pin D=20 08
34
77630074000
Пружинное стопорное кольцо
40
75330007100 I
Piston I Cpl. D=102
40
75330007100 II
Piston Ii Cpl. D=102
42
75330031144
Piston Ring Kit
99
00050002305
Crankshaft Rep. Kit 690
