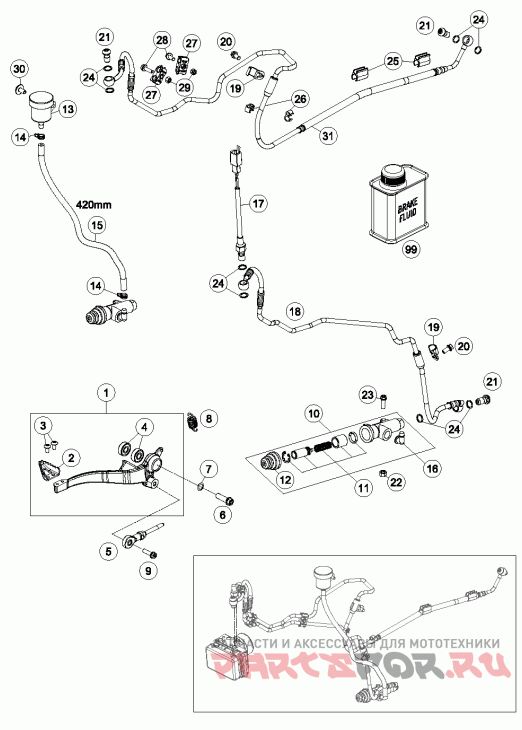

Тормозной цилиндр задний

KTM 690 ENDURO-R CHASSIS

KTM
#oem кодцена
1
7651305024401
Foot Brake Lever Cpl. 11
2
60013051000
Step Plate Foot Brake Lever 03
3
78105081010
Screw Torx M5x10
4
0625006087
Grooved Ball Bear. 608 2rs C3
5
76513056144
Push Rod Cpl.
6
0025080256S
Винт M8x25 Tx40
7
36003014000
Стопорная шайба 8 мм
8
54603062100
Return Spring For Brake Lever
9
0025060206S
Hh Collar Screw M6x20 Tx30
10*
54513101044
Main Brake Cylinder '89
11
76513061000
Repair Kit Piston 13mm
12
54513151000
Rubber Sleeve
13
54513030044
Brake Fluid Reservoir '89
14
58007017000
Зажим
15
69013069001
Шланг для бачка 6х1
16
54513155000
уголок
17*
62111051000
Brake Light Switch Rear
18*
76542003000
Brake Hose Rear Master Cyl.
19*
76542050000
Зажим
20*
0025060126
Hh Collar Screw M6x12 Tx30
21
62113020100
Holl. Screw M10x1x19.5
22
0926060000
Stop Nut M6 Din6926 A2-70
23
0025060256
Воротник Винт M6x25 Tx30
24
0603100141
Copper Gasket Din7603-10x14x1
25*
54813026000
Cable Support 10/6mm 06
26*
60111094000
Clip 5/7 Mm 06
27*
60113146000
Support For Brake Hose M5
28*
0025050166
Hh Collar Screw M5x16 Tx30
29*
0934050003
Hexagon Nut Din0934-m 5
30*
0024060136
Hh Collar Screw M6x13 Tx30
31*
76542001000
Brake Hose Rear Caliper
99
00062030000
Тормозная жидкость Dot5 0,25 ml
