Масляная система для мотоциклов KTM 690 DUKE WHITE ENGINE (2014)

Москва и регионы России

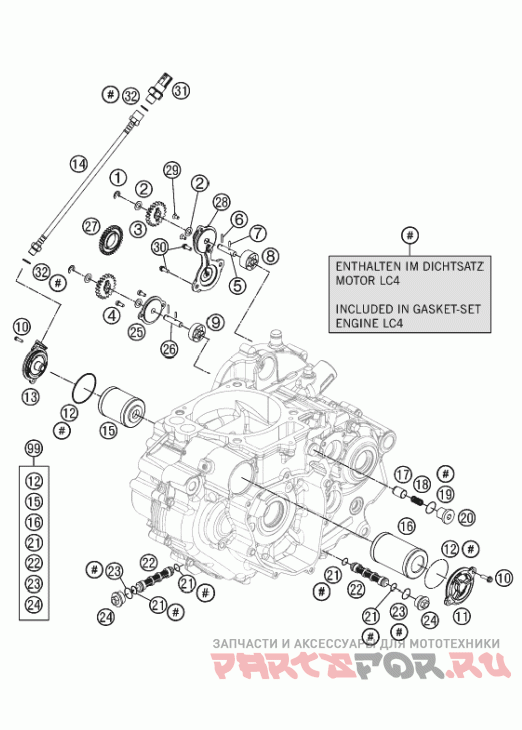

Масляная система

KTM 690 DUKE WHITE ENGINE

Масляная система

#

oem код

название

цена

1

Tab Washer Din6799-rs 6, 0

Tab Washer Din6799-rs 6, 0

2

Stop Disk 8, 1 X 15 X 0, 5

Stop Disk 8, 1 X 15 X 0, 5

3

Oil Pump Gear 20-t

Oil Pump Gear 20-t

5

Oil Pump Shaft 07

Oil Pump Shaft 07

6

Needlerol.din5402 Nra 2, 5x19, 8

Needlerol.din5402 Nra 2, 5x19, 8

7

Needle Roller Din5402 2, 5x11, 8

Needle Roller Din5402 2, 5x11, 8

8

Oil Pump Rotor Compl. 15mm

Oil Pump Rotor Compl. 15mm

9

Oil Pump Rotor Compl. 10mm

Oil Pump Rotor Compl. 10mm

10

Hh Collar Screw M5x16 Tx30

Hh Collar Screw M5x16 Tx30

11

Oilfilter Cap

Oilfilter Cap

12

O-ring 39, 34x2, 62

O-ring 39, 34x2, 62

13

Oilfilter Cover

Oilfilter Cover

14

Oil Pipe

Oil Pipe

15

Oil Filter Short

Oil Filter Short

16

Oil Filter Long

Oil Filter Long

17

Valve Piston D=10mm

Valve Piston D=10mm

18

Oil Pres.spring 5 Bar Red 2001

Oil Pres.spring 5 Bar Red 2001

19

Кольцо 12x18x1, 5

Кольцо 12x18x1, 5

20

Plug Din0908-m12x1, 5

Plug Din0908-m12x1, 5

21

O-ring 12, 5x1, 5 Viton V75

O-ring 12, 5x1, 5 Viton V75

22

Oil Screen

Oil Screen

23

O-ring 17, 17x1, 78 Glo

O-ring 17, 17x1, 78 Glo

24

Plug M20x1, 5 Ws=13

Plug M20x1, 5 Ws=13

25

Oil Pump Cover 07

Oil Pump Cover 07

26

Oil Pump Shaft 07

Oil Pump Shaft 07

27

Oil Pump Drive Wheel 07

Oil Pump Drive Wheel 07

28

Крышка насоса

Крышка насоса

29

Int. Torx Flat Head M5x16 8.8

Int. Torx Flat Head M5x16 8.8

30

Hh Collar Screw M6x16 Isa 30

Hh Collar Screw M6x16 Isa 30

31

Oil Pressure Switch "bitron"

Oil Pressure Switch "bitron"

32

Copper Gasket Din7603-10x14x1

Copper Gasket Din7603-10x14x1

99

Oilfilter Servicekit 690 12-14

Oilfilter Servicekit 690 12-14
