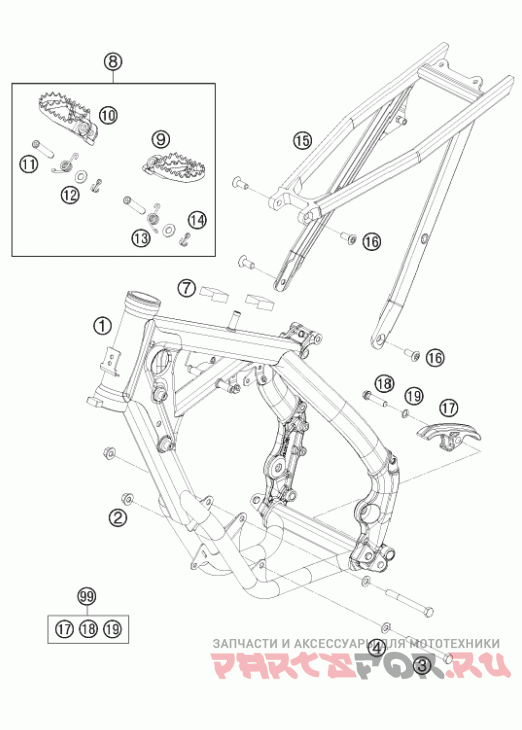

Рама для мотоциклов KTM 65 SX CHASSIS (2014)

Москва и регионы России

Рама

KTM 65 SX CHASSIS

Рама

#

oem код

название

цена

1

Frame "462l3" Anthr.-met.

Frame "462l3" Anthr.-met.

2

Self Locking Nut M8 10.9

Self Locking Nut M8 10.9

3

Hh Screw Din 931 M8x80 10.9

Hh Screw Din 931 M8x80 10.9

4

Washer Din0125-a 8, 4

Washer Din0125-a 8, 4

7

Adh. Foil Transp. 80x80 Mm 04

Adh. Foil Transp. 80x80 Mm 04

8*

Footrest Cpl. 14

Footrest Cpl. 14

9*

Footrest L/s

Footrest L/s

10*

Footrest R/s

Footrest R/s

11

Pin For Foot Ped 51.5x9.8 Mm

Pin For Foot Ped 51.5x9.8 Mm

12

Washer Din0125-a10, 5

Washer Din0125-a10, 5

13

Footrest Spring L/s & R/s

Footrest Spring L/s & R/s

14

Pin Din0094-3, 2x25 Steel

Pin Din0094-3, 2x25 Steel

15

Sub Frame 65 Sx 2009

Sub Frame 65 Sx 2009

16

Flat Head Screw M. Isa45 M8x20

Flat Head Screw M. Isa45 M8x20

17

Chain Sliding Piece Below 07

Chain Sliding Piece Below 07

18

Hh Collar Screw M8x35 Tx40

Hh Collar Screw M8x35 Tx40

19

Стопорная шайба 8 мм

Стопорная шайба 8 мм

99

Chain Sliding Kit Below 09-15

Chain Sliding Kit Below 09-15
