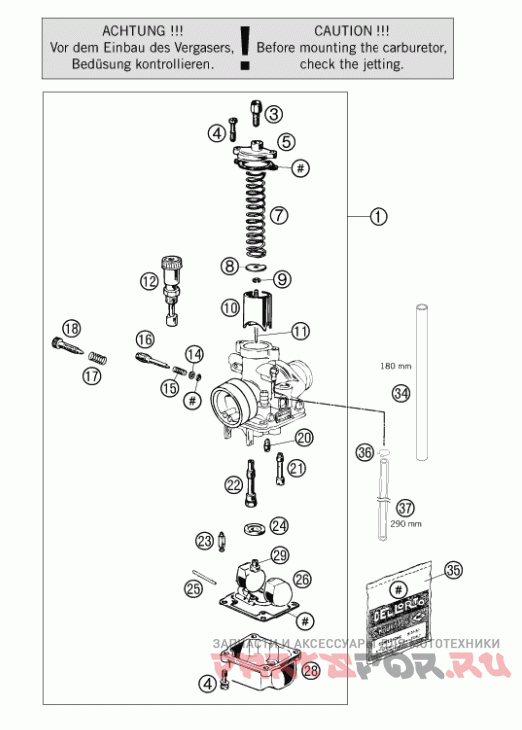

Карбюратор

KTM 50 SX ENGINE

KTM
#oem кодцена
1
45131001100
Carbur. Dello. Phbg 19 Bs 2001
3
57031525000
Adjustment Screw M6x0, 75
4
0016040163
Hh Collar Screw M 4x16 Ws=6
5
45131027000
Carburetor Cover Dellorto 19
7
45131030000
Spring Dellorto
8
45131109000
Retaining Spring Dellorto
9
0799025055
Tab Washer Din6799-rs 2, 5
10
45131035000
Thr. Valve Dello.19 60 2001
10
45131035040
Thr. Valve Dello.40 2008
11
45131034009
Jet Needle W9
12
45131048000
Starting Button Dellorto 19
14
57031572000
Washer 3, 3 X 5, 8 X 0, 5
15
45131015000
Spring Dellorto
16
45131017000
Air Adjust Screw Dellorto
17
45131518000
Пружина
18
45131019000
Idle Adjust Screw
20
45131007045
Idling Jet 45 Dellorto
20
45131007048
Idling Jet 48 Dellorto
20
45131007050
Idling Jet 50 Dellorto
20
45131007052
Idling Jet 52 Dellorto
20
45131007055
Idling Jet 55 Dellorto
20
45131007058
Idling Jet 58 Dellorto
21
45131051060
Start Jet 60 Dellorto
22
45131021260
Needle Jet 260
22
45131021262
Needle Jet 262
23
45131020000
Floating Needle Valve Dellorto
24
45131074000
Cover Dellorto
25
45131008000
Pin Dellorto
26
45131009000
Float 4 Gr.
28
45131011000
Float Bowl Dellorto 19
29
15131123080
Main Jet 80 Dellorto
29
15131123085
Main Jet 85 Dellorto
29
15131123090
Main Jet 90 Dellorto
34
58307016001
Fuel Hose Viton 6x1, 5 Per/m
35
45131099000
Gasket Set Dellorto 19
36
54531696000
Clamp 6 Mm
37
31007007101
Pvc-hose 4x6mm
