  5. 200 XCW CHASSIS

Электрика

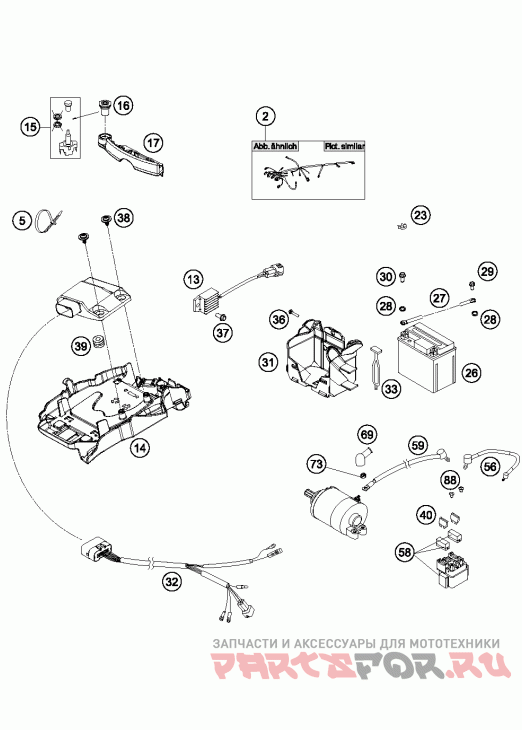

KTM 200 XCW CHASSIS

KTM
#oem кодцена
2*
54811075800
Wiring Harness 200/300 Xc-w 14
5
44011076140
Cable Tie 140/2, 5mm Black
5
44011076200
Cable Tie 200/3, 6mm Black
5
44011076305
Cable Tie 300/4, 8mm Black
13
80011034000
Voltage Regulator 04
14*
51511094100
Electric Case
15
55011599000
Pull Switch Loose
16
54814060050
Spec. Nut F. Pull Switch Ws=17
17
54814060100
Speedometer Bracket Xc-w 08
23
57013072100
Wiring Holder 16mm
26*
58511053000
Battery 12v 4ah Ytx5l-bs
27
58411097100
Ground Cable D=6mm L=140mm '97
28
58411098100
Contact Washer M6 Vsv-k6
29
0009050106
Ejot Spiral Screw Sf M5x10-k
30
0025050126
Hh Collar Screw M5x12 Tx30
31*
78111055000
Battery Case
32
54839032200
Wiring Harness For Cdi 2-st.07
33
50303018000
Rubber L=145mm
36
0025060126
Hh Collar Screw M6x12 Tx30
37
0026060136
Collar Screw M6x13 Isa30
38
0081645121
Ejot Delta Pt Screw 45x12-z
39
58214069051
Rubber Grommet 16x10, 8x3 02
40
58011109110
Fuse 10 A 2000
56
58711086000
Wiring Harness Battery Duke'99
58
58211058000
Starter Relay 12v '99
59
55111059000
Startercable 1100mm 07
69
58440099000
Protection Cap F. Starter Eng.
73
0985060003
Self Lock. Nut Din0985-m 6
88
0902060083
Ah Oval Screw Iso 7380 M 6x8
