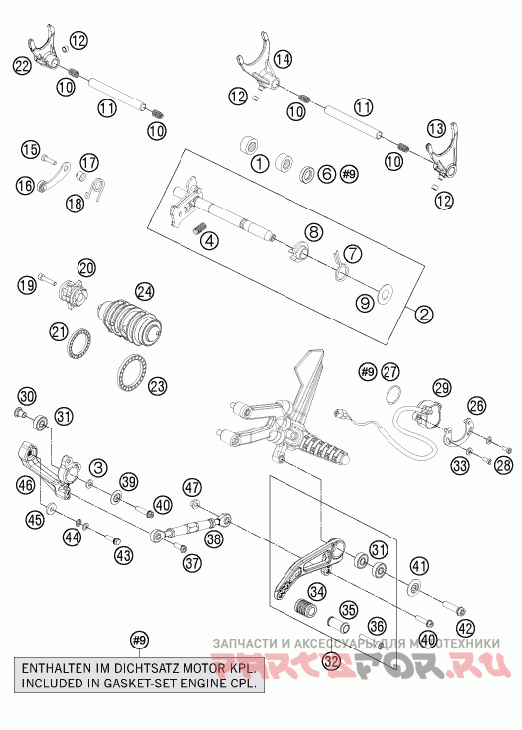

Механизм переключения

KTM 1190 RC8-R ENGINE

KTM
#oem кодцена
1
54632095000
Needle Bear.hk 1412 14x20x12
2
61234005333
Shift Shaft Cpl.
3
0988060121
Washer 6x12x1 Hrc 40-45
4
56534013100
Tensioning Spring 0, 8mm
6
0760142460
Shaft Seal Ring 14x24x6 B
7
61234014000
Returnspring 2mm
8
54634020000
Spring Guide
9
54634050000
Stop Disk 14x30x1
10
58038023200
Pressure Spring 0, 9mm
11
59034020000
Shift Rail 11, 8x105mm
12
50334018100
Shifting Roller 6x8x5, 2
13
61234002100
Shift Fork 2-3 Gear
14
61234001000
Shifting Fork 08
15
0024060206
Hh Collar Screw M6x20 Tx30
16
75034024044
Locking Lever Cpl. 07
17
75034052000
Sleeve For Locking Lever 07
18
61234023000
Spring - Locking Lever
19
0912060303
Ah Screw Din0912-m 6x30
20
61234015444
Shift Drum Locating Cpl.
21
0625618050
Ball Bearing 61805 C3
22
61234003100
% Shift Fork 5-6 Gear
23
0625068080
Grooved Ball Bearing 6808 Jrc3
24
60234012100
Shifting Drum Cpl.
26
60211023150
Bracket F. Gear-pos. Sensor
27
07700240251
Уплотнительное кольцо 24x2, 5 витон
28
0984050123S
Cylind. Scr. Din6912 M5x12 8.8
29
60211023100
Gear-position Sensor
30
69034040100
Collar Bushing
31
0625006087
Grooved Ball Bear. 608 2rs C3
32
6903403114433S
Shifting Lever Cpl. 09
33
0125050003
Шайба Din0125-в 5, 3
34
61034035000
Rubber For Shift Lever 05
35
69034032100
Gear Lever
36
0912060453
Ah Screw Din0912-m 6x45
37
0025060166S
Hh Collar Screw M6x16 Isa 30
38
6930303603333
Shift Rod Cpl. Black
39
69034041000
Special Washer 6, 4x21, 4x2, 6
40
0025060256
Воротник Винт M6x25 Tx30
41
6900303801001
Special Washer D=26x3 Alu Elo.
42
0025080306S
Hh Collar Screw M8x30 Tx40
43
59009062019
Special Screw M6x19 Ws=8 10.9
44
50233041000
Pair Of Washers M 6 Nordlock
45
50232050001
Steel Washer 6, 4x17x3
46
6903403000033S
Relay Lever Shift. Shaft Black
47
56509064100
Self Locking Nut M6 10.9
