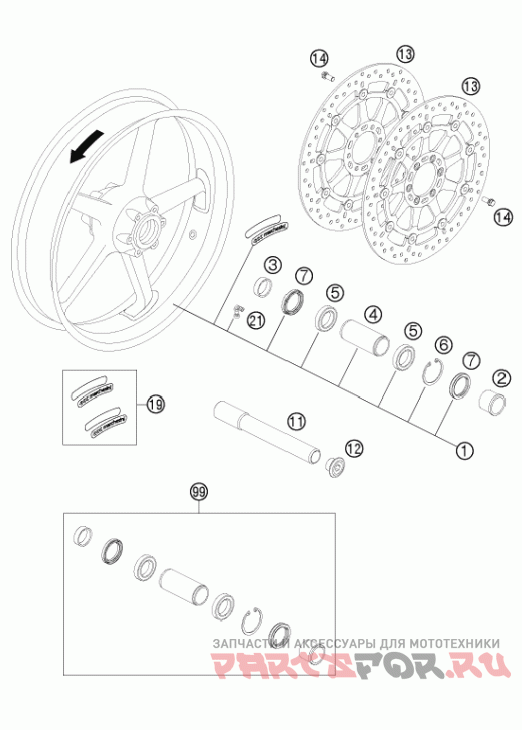

Переднее колесо

KTM 1190 RC8-R CHASSIS

KTM
#oem кодцена
1
6100900114430
Front Wheel Cpl. Black 10
2
61009012000
Spacer Bush. Fr. Wheel L/s 05
3
60009013000
Spacer Bush. Fr. Wheel R/s 03
4
61009011000
Bearing Spacer Tube Front 05
5
0625069068
Gr.ball Bear.6906 Ddu2cg23s6nm
6
0472048175
Lock Ring Din0472-48x1, 75
7
0760354771
Shaft Seal Ring 35x47x7 Tc
11
61009081000
Wheel Spindel Front 05
12
6900103600001
Steering Head Screw 09
13
6900906000030
Brake Disc Front D=320x5
14
61009062018
Special Screw M8x18 05
19
00050000120
Sticker March. 2l/s+2r/s White
21
61009076000
Valve Angled 90 05
99
69009015000
Front Wheel Repair Kit
1
6901000114430
Rear Rim 6x17" Cpl. 09
2
0625062052
Gr.ball Bear. 6205-2rshc3hmtf7
3
69010011000
Bearing Spacer Tube
4
0472052200
Circlip Din0472-52x2
5
0760305271
Shaft Seal Ring 30x52x7
6
69010013000
Dist.bushing Rear Wheel R/s 08
7
58709076000
Valve Cpl. Brembo Duke 2003
8
61010059000
Damping Rubber 05
9
69010165108
Chain Regina 525 108rolls 2010
10
6901005004430
Sprocket Support Cpl. Black
11
69010012000
Spacer Chain Wheel Support
12
0625060060
Ball Bearing 6006 Ddu2cg23s6nm
13
69010054000
Bear.dist. Ring 30, 3x37, 8x4, 65
14
61010051138
Rear Sprocket 38-t Steel 05
15
61010056000
Bolt For Sprocket Support 05
16
61010057000
Nut Rear Sprocket 05
17
69010060000
Brake Disc Ktm 690 08
18
61009062018
Special Screw M8x18 05
19
69010166000
Connecting Link F. 69010165108
20
69010081144
Wheel Spindle Rear Cpl.
21
60010084000
Chain Tensioner R/s Lc8 03
22
61010086000
Collar Nut M25x1, 5 Ws=32 05
29
00050000120
Sticker March. 2l/s+2r/s White
98
00050002001
Drivetrain Kit Rc8/-r 17z/38t
99
69010015000
Rear Wheel Repair Kit
