Рама для мотоциклов KTM 1190 ADV-R CHASSIS (2014)

Москва и регионы России

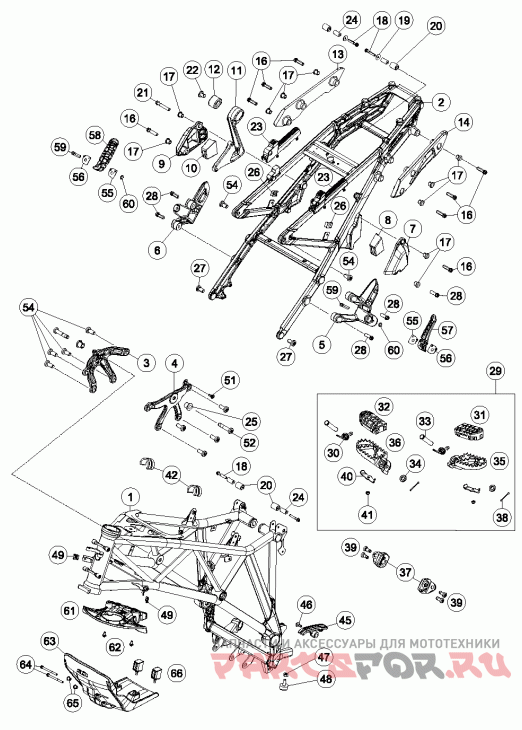

Рама

KTM 1190 ADV-R CHASSIS

Рама

#

oem код

название

цена

1*

Frame "603 Oa" Orange

Frame "603 Oa" Orange

2

Sub Frame

Sub Frame

3

Engine Support R/s Black

Engine Support R/s Black

4

Engine Supportl/s Black

Engine Supportl/s Black

5

Footr. Sup. Rear L/s Black

Footr. Sup. Rear L/s Black

6

Footr. Sup. Rear R/s Black

Footr. Sup. Rear R/s Black

7

Suitcase Hook L/s

Suitcase Hook L/s

8

Damping Rubber Suitcase Hook

Damping Rubber Suitcase Hook

9

Suitcase Hook R/s

Suitcase Hook R/s

10

Damping Rubber Suitcase Hook

Damping Rubber Suitcase Hook

11

Exhaust Bracket

Exhaust Bracket

12

Damping Rubber

Damping Rubber

13

Case Bar R/s

Case Bar R/s

14

Case Bar L/s

Case Bar L/s

16

Hh Collar Screw M8x35 Tx40

Hh Collar Screw M8x35 Tx40

17

Spacer Bushing 13x17x8, 2

Spacer Bushing 13x17x8, 2

18

Воротник Винт M6x30 Tx30

Воротник Винт M6x30 Tx30

19

Washer Din9021-a 6, 4

Washer Din9021-a 6, 4

20

Rubber Seat-contact Surface

Rubber Seat-contact Surface

21

Hh Collar Screw M8x50 Tx40

Hh Collar Screw M8x50 Tx40

22

Втулка

Втулка

23

Plate Rubber Seat

Plate Rubber Seat

24

Bush 6.2x12x21.5

Bush 6.2x12x21.5

25

Spacer Bush Engine Support

Spacer Bush Engine Support

26

Range Change Metal Nut M6

Range Change Metal Nut M6

27

Ah-collar Screw M10x20 Isa45

Ah-collar Screw M10x20 Isa45

28

Hh Collar Screw M8x25 Tx40

Hh Collar Screw M8x25 Tx40

29

Footpeg Ls+rs Cpl.

Footpeg Ls+rs Cpl.

30

Footrest Spring L/s & R/s

Footrest Spring L/s & R/s

31

Footrest Rubber Front L/s 03

Footrest Rubber Front L/s 03

32

Footrest Rubber Front R/s 03

Footrest Rubber Front R/s 03

33

Pin For Foot Ped 51.5x9.8 Mm

Pin For Foot Ped 51.5x9.8 Mm

34

Washer Din0125-a10, 5

Washer Din0125-a10, 5

35

Footrest L/s 08

Footrest L/s 08

36

% Foot Peg R/s Silver 02

% Foot Peg R/s Silver 02

37

Footrest Mounting

Footrest Mounting

38

Pin Din0094-3, 2x25 Steel

Pin Din0094-3, 2x25 Steel

39

Hh Collar Screw M8x16 Tx40

Hh Collar Screw M8x16 Tx40

40

Closing Panel Front L/s R/s 03

Closing Panel Front L/s R/s 03

41

Самоконтрящаяся Гайка 0985-м DIN 5

Самоконтрящаяся Гайка 0985-м DIN 5

42

Spacer Fuel Tank 05

Spacer Fuel Tank 05

45

Направляющая цепи

Направляющая цепи

46

Hh Collar Screw M6x15 Tx30

Hh Collar Screw M6x15 Tx30

47

Hexagon Nut Din0934-m 8

Hexagon Nut Din0934-m 8

48

Bump Rubber M8x25mm

Bump Rubber M8x25mm

49

Range Change Metal Nut M5

Range Change Metal Nut M5

51

Специальный Винт М5х12

Специальный Винт М5х12

52

Ah-collar Screw M10x50 Isa45

Ah-collar Screw M10x50 Isa45

54

Ah-collar Screw M10x24 Isa45

Ah-collar Screw M10x24 Isa45

55

Engage Panel Footrest L/s 03

Engage Panel Footrest L/s 03

56

Engage Panel Footrest R/s 03

Engage Panel Footrest R/s 03

57

Footrest Cpl. L/s Rear 03

Footrest Cpl. L/s Rear 03

58

Footrest Cpl. R/s Rear 03

Footrest Cpl. R/s Rear 03

59

Bolt For Footrest Rear

Bolt For Footrest Rear

60

Tab Washer Din6799-rs 6, 0

Tab Washer Din6799-rs 6, 0

61

Triple Clamp Cover Lower Side

Triple Clamp Cover Lower Side

62

Hh Collar Screw M6x13 Tx30

Hh Collar Screw M6x13 Tx30

63

Skid Plate Adv

Skid Plate Adv

64

Hh Collar Screw M6x40 Tx30

Hh Collar Screw M6x40 Tx30

65

Collar Bushing 6, 3x8x13x9, 5

Collar Bushing 6, 3x8x13x9, 5

66

Vibration Damper 03

Vibration Damper 03
