Электрика для мотоциклов KTM 1190 ADV-R CHASSIS (2014)

Москва и регионы России

Электрика

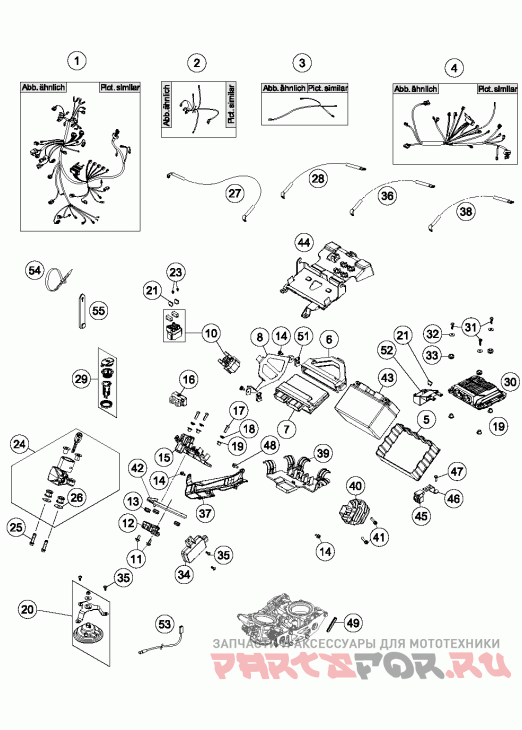

KTM 1190 ADV-R CHASSIS

Электрика

#

oem код

название

цена

1

Main Wiring Harness

Main Wiring Harness

2

Wiring Engine

Wiring Engine

3

Wiring Harness Head Light

Wiring Harness Head Light

4

Rear Wiring Harness

Rear Wiring Harness

5

Batterie Housing

Batterie Housing

6

Ecu Rubber Bracket

Ecu Rubber Bracket

7

Electronic Control Unit

Electronic Control Unit

8

Bracket Electric

Bracket Electric

10

Starter Relay 12v '99

Starter Relay 12v '99

11

Hh Collar Screw M6x13 Tx30

Hh Collar Screw M6x13 Tx30

12

Sloping Positions Sensor

Sloping Positions Sensor

13

Damp. Component Abs Modul

Damp. Component Abs Modul

14

Специальный Винт М5х12

Специальный Винт М5х12

16

Rollover Sensor 05

Rollover Sensor 05

17

Flat Head Screw Iso7380 M6x20

Flat Head Screw Iso7380 M6x20

18

Collar Bushing

Collar Bushing

19

Bushing Head Light 08

Bushing Head Light 08

20

Horn Cpl.

Horn Cpl.

21

Fuse 40 A

Fuse 40 A

21

Fuse 30 A

Fuse 30 A

21

Fuse 25 A

Fuse 25 A

21

Fuse 15 A

Fuse 15 A

21

Fuse 10 A 2000

Fuse 10 A 2000

23

Ah Oval Screw Iso 7380 M 6x8

Ah Oval Screw Iso 7380 M 6x8

24

% Ignition Lock

% Ignition Lock

25

Hh Collar Screw M8x30 Tx40

Hh Collar Screw M8x30 Tx40

26

Washer Din9021-a 8, 4

Washer Din9021-a 8, 4

27

Starter Cable

Starter Cable

28

Ground Cable

Ground Cable

29

Power Outlet 12v

Power Outlet 12v

30*

Motorcycle Control Unit 2.1

Motorcycle Control Unit 2.1

31

Screw For Plastic K50x18 T20

Screw For Plastic K50x18 T20

32

Washer Din9021-a 5, 3

Washer Din9021-a 5, 3

33

Rub.sleeve Float Chamb.venting

Rub.sleeve Float Chamb.venting

34

Receiver Air Pressure Sensor

Receiver Air Pressure Sensor

35

Screw For Plastic K50x12 T20

Screw For Plastic K50x12 T20

36

Ground Cable

Ground Cable

37

Cable Channel R/s

Cable Channel R/s

38

Batterie Cable

Batterie Cable

39

Support Bracket Rear

Support Bracket Rear

40

Реле регулятора

Реле регулятора

41

Hh Collar Screw M6x20 Tx30

Hh Collar Screw M6x20 Tx30

42

Bracket Sloping Positions Sens

Bracket Sloping Positions Sens

43

Battery 12v/11ah 03

Battery 12v/11ah 03

44

Batterie Cover

Batterie Cover

45

Rubber Supp. Pressure Sens. 05

Rubber Supp. Pressure Sens. 05

46

Bracket Pressure Sensor

Bracket Pressure Sensor

47

Болт 50x16 1451

Болт 50x16 1451

48

Collar Screw M6x12 Tx

Collar Screw M6x12 Tx

49

Edge Protector L=45mm 05

Edge Protector L=45mm 05

51

Range Change Metal Nut M5

Range Change Metal Nut M5

52

Rubbercover F.lockholder

Rubbercover F.lockholder

53

Temperature Sensor 07

Temperature Sensor 07

54

Cable Tie 140/2, 5mm Black

Cable Tie 140/2, 5mm Black

54

Cable Tie 200/3, 6mm Black

Cable Tie 200/3, 6mm Black

54

Cable Tie 300/4, 8mm Black

Cable Tie 300/4, 8mm Black

55

Rubber Cable Tie 45mm 03

Rubber Cable Tie 45mm 03

55

Rubber Cable Tie 60mm 03

Rubber Cable Tie 60mm 03
