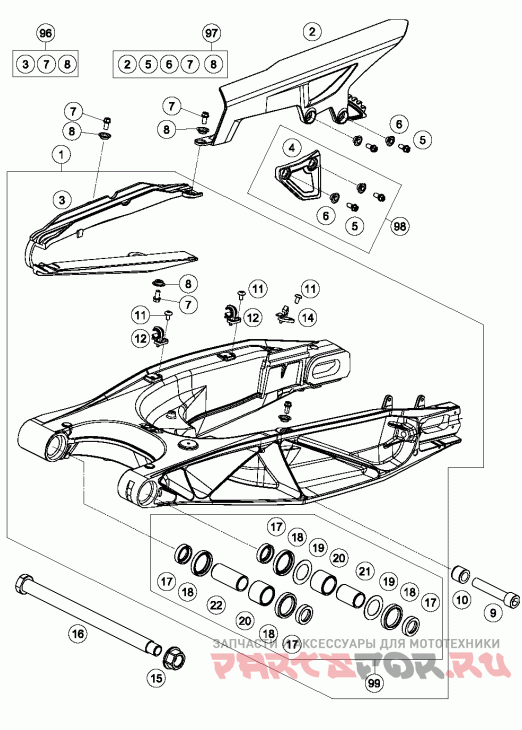

Бугель для мотоциклов KTM 1190 ADV ORG CHASSIS (2014)

Москва и регионы России

Бугель

KTM 1190 ADV ORG CHASSIS

Бугель

#

oem код

название

цена

1

Swingarm Cpl.

Swingarm Cpl.

2

Chain Guard

Chain Guard

3

Chain Sliding Guard

Chain Sliding Guard

4

Направляющая цепи

Направляющая цепи

5

Hh Collar Screw M6x16 Tx30

Hh Collar Screw M6x16 Tx30

6

Bush For Spoiler 6x11x16x7, 5

Bush For Spoiler 6x11x16x7, 5

7

Collar Screw M5x10 Isa30

Collar Screw M5x10 Isa30

8

Bush For Chainslider Guard 02

Bush For Chainslider Guard 02

9

Screw M14x1, 5 L=73mm 03

Screw M14x1, 5 L=73mm 03

10

Bushing Monoshock Socket 05

Bushing Monoshock Socket 05

11

Screw Torx M5x10

Screw Torx M5x10

12

Ret. Clamp F. Brake Hose

Ret. Clamp F. Brake Hose

14

Cable Support Swing Arm 06

Cable Support Swing Arm 06

15

Collar Nut M19x1, 5 Ws=27mm 03

Collar Nut M19x1, 5 Ws=27mm 03

16

Swing Arm Bolt

Swing Arm Bolt

17

Bucket F. Shaft Seal Ring 03

Bucket F. Shaft Seal Ring 03

18

Shaft Seal Ring 30x40x7

Shaft Seal Ring 30x40x7

19

Stop Disk 03

Stop Disk 03

20

Needle Bush Hk2526b 03

Needle Bush Hk2526b 03

21

Inner Ring Jr20x25x38, 5 03

Inner Ring Jr20x25x38, 5 03

22

Inner Ring Jr 20x25x56, 5

Inner Ring Jr 20x25x56, 5

23

Special Screw M6x16 Ws=8 10.9

Special Screw M6x16 Ws=8 10.9

99

Swing Arm Rep. Kit 08-14

Swing Arm Rep. Kit 08-14
