Головка цилиндра задняя для мотоциклов KTM 990 ADV BAJA ENGINE (2013)

Москва и регионы России

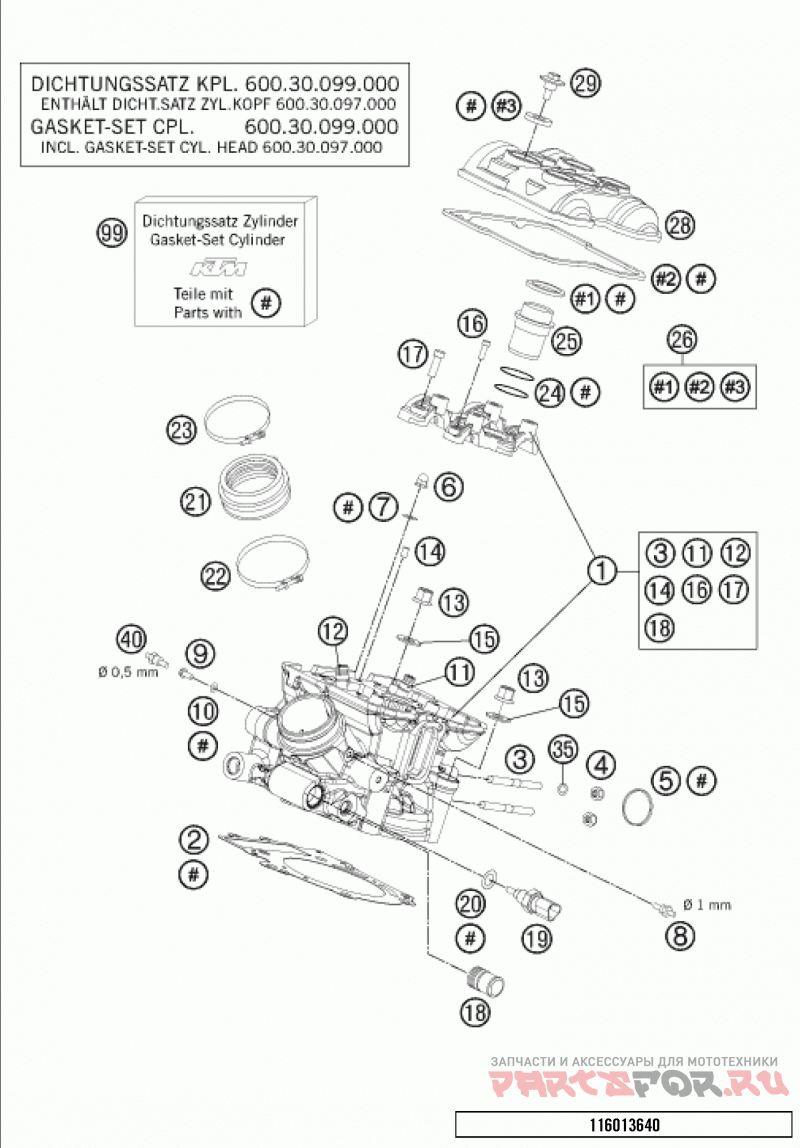

Головка цилиндра задняя

KTM 990 ADV BAJA ENGINE

Головка цилиндра задняя

#

oem код

название

цена

1

Cylinder Head Rear Cpl.

Cylinder Head Rear Cpl.

2

Cylinder Head Gasket 0, 5 101mm

Cylinder Head Gasket 0, 5 101mm

3

Stud M 8x16 10.9

Stud M 8x16 10.9

4

Self Locking Nut M 8 Cu

Self Locking Nut M 8 Cu

5

Exhaust Gasket 05

Exhaust Gasket 05

6

Cap Nut M6 Stainless Steel

Cap Nut M6 Stainless Steel

7

Washer Din0125-a 6, 4

Washer Din0125-a 6, 4

8

Vacuum Conection 2006

Vacuum Conection 2006

9

Hh Collar Screw M6x10 Tx30

Hh Collar Screw M6x10 Tx30

10

Cu-seal Ring Din7603-6x10x1

Cu-seal Ring Din7603-6x10x1

11

Valve Giude Exhaust

Valve Giude Exhaust

12

Valve Giude Intake

Valve Giude Intake

13

Collar Nut M 10 Ws=13 05

Collar Nut M 10 Ws=13 05

14

Needle Roller Din5402 5x9, 8

Needle Roller Din5402 5x9, 8

15

Shim 10, 2x19x1, 5mm 05

Shim 10, 2x19x1, 5mm 05

16

Ah Screw Din0912-m 6x25 10.9

Ah Screw Din0912-m 6x25 10.9

17

Ah Screw Din7984-m 8x30 10.9

Ah Screw Din7984-m 8x30 10.9

18

Screw In Nozzle M20x1, 5

Screw In Nozzle M20x1, 5

19

Temperature Sensor Water 07

Temperature Sensor Water 07

20

O-ring 10, 00x2, 00 Silcone

O-ring 10, 00x2, 00 Silcone

21

Rubbersleeve Intake Flange 05

Rubbersleeve Intake Flange 05

22

Hose Clamp Gemi 66mm 05

Hose Clamp Gemi 66mm 05

23

Hose Clamp Gemi 63mm 05

Hose Clamp Gemi 63mm 05

24

O-ring 29, 87x1, 78 Viton

O-ring 29, 87x1, 78 Viton

25

Insert Spark-plug Shaft

Insert Spark-plug Shaft

26

Valve Cover Gasket Set Fr+rr

Valve Cover Gasket Set Fr+rr

28

Valve Cover Rear

Valve Cover Rear

29

Collar Screw M 6 Ws=10 03

Collar Screw M 6 Ws=10 03

35

Washer Din0125-a 8, 4

Washer Din0125-a 8, 4

40

Vacuum Conection M6/0, 5mm

Vacuum Conection M6/0, 5mm

99

Gasket Set Cyl. Head Kpl. 03

Gasket Set Cyl. Head Kpl. 03
