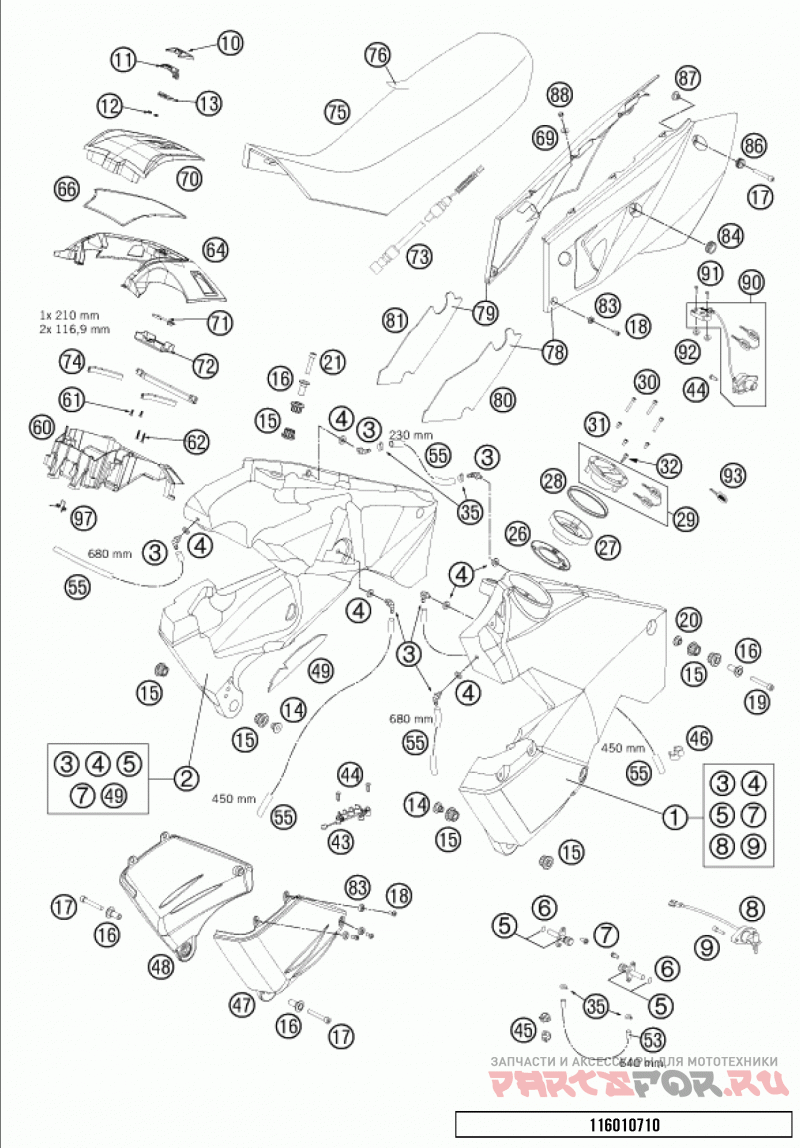

Бак,сидение для мотоциклов KTM 990 ADV BAJA CHASSIS (2013)

Москва и регионы России

Бак,сидение

KTM 990 ADV BAJA CHASSIS

Бак,сидение

#

oem код

название

цена

3

Connect.piece F.overflow M7 03

Connect.piece F.overflow M7 03

4

Gasket For Connecting Piece 03

Gasket For Connecting Piece 03

5

Fuel Cock Cpl.

Fuel Cock Cpl.

6

O-ring 1, 78x10, 82x14, 38 2-013

O-ring 1, 78x10, 82x14, 38 2-013

7

Hh Collar Screw M6x12 Tx30

Hh Collar Screw M6x12 Tx30

8

Gas-level Sensor Adv. 2002

Gas-level Sensor Adv. 2002

9

Ah Screw Din0912-m 5x16

Ah Screw Din0912-m 5x16

1*

Fuel Tank Cpl. White

Fuel Tank Cpl. White

10

Cover Push Button

Cover Push Button

11

Push Button

Push Button

12

Coil Spring

Coil Spring

13

Push Button Support

Push Button Support

14

Bear.bush.inside L=15, 5mm 03

Bear.bush.inside L=15, 5mm 03

15

Tank Rubber Bushing 03

Tank Rubber Bushing 03

16

Bearing Bushing Outside 03

Bearing Bushing Outside 03

17

Ah Screw Din912 M8x55

Ah Screw Din912 M8x55

18

Ah Screw Din6912-m 6x16

Ah Screw Din6912-m 6x16

19

Ah Screw Din912 M8x50

Ah Screw Din912 M8x50

2*

Fuel Tank R/s Cpl. White 12

Fuel Tank R/s Cpl. White 12

20

Bearing Bushing Inside 03

Bearing Bushing Inside 03

21

Ah Screw Din912 M8x40

Ah Screw Din912 M8x40

26

Seal. Flange F.tank Insert 03

Seal. Flange F.tank Insert 03

27

Tank Insert 05

Tank Insert 05

28

Seal. Ring F. Tank Insert 03

Seal. Ring F. Tank Insert 03

29

Tank Plug

Tank Plug

30

Ah Screw Din0912-m 5x30

Ah Screw Din0912-m 5x30

31

Ah Screw Din 912 M 5x8

Ah Screw Din 912 M 5x8

32

Ah Screw Din0912-m 5x12

Ah Screw Din0912-m 5x12

35

Хомут 12мм

Хомут 12мм

43

Hose Holder Triple 03

Hose Holder Triple 03

44

Screw For Plastic K50x18 T20

Screw For Plastic K50x18 T20

45

Wiring Holder 16mm

Wiring Holder 16mm

46

Clamp D=6/8mm, Black

Clamp D=6/8mm, Black

47

Tank Protector L/s 06

Tank Protector L/s 06

48

Tank Protector R/s 06

Tank Protector R/s 06

49

Thermal Protect. Foil Tank 07

Thermal Protect. Foil Tank 07

55

Hose Epa D=6/10 L=2000mm

Hose Epa D=6/10 L=2000mm

60

Storage Box Bottom Part

Storage Box Bottom Part

61

Screw K30x10 T10

Screw K30x10 T10

62

Screw K30x16 T10

Screw K30x16 T10

64

Stor.box Cent.part Black 09

Stor.box Cent.part Black 09

66

Cover Gasket

Cover Gasket

69

Plastic Washer 03

Plastic Washer 03

70

Cover For Storage Box 09

Cover For Storage Box 09

71

Lock Bolt Storage Compartment

Lock Bolt Storage Compartment

72

Support F. Lock Bolt

Support F. Lock Bolt

73

Storage Box Cable

Storage Box Cable

74

Edge Protector Per Meter

Edge Protector Per Meter

80

Ther.prot.foil Si. Co. L/s 07

Ther.prot.foil Si. Co. L/s 07

81

Ther.prot.foil Si. Cov. R/s 07

Ther.prot.foil Si. Cov. R/s 07

83

Special Washer D=16, 5mm 03

Special Washer D=16, 5mm 03

84

Rubber Sleeve F.seat Lock 09

Rubber Sleeve F.seat Lock 09

86

Rubber Sleeve D=12mm

Rubber Sleeve D=12mm

87

Collar Bushing 8, 2x12x20x9 03

Collar Bushing 8, 2x12x20x9 03

88

Ejot Pt Screw K60x20 Ws=6

Ejot Pt Screw K60x20 Ws=6

91

Cou.sunk Scr. Ah Iso7380 M6x30

Cou.sunk Scr. Ah Iso7380 M6x30

92

Distance Bush. 7x12x18x3, 7 03

Distance Bush. 7x12x18x3, 7 03

93

Key Blank Lc4/duke/lc8

Key Blank Lc4/duke/lc8

97

Storage Cover Box Spring

Storage Cover Box Spring

75*

Seat Black 2012

Seat Black 2012

76*

Seat Cover Adv. 2012

Seat Cover Adv. 2012

78*

Sidepart L/s Rear White

Sidepart L/s Rear White

79*

Sidepart R/s Rear White

Sidepart R/s Rear White
