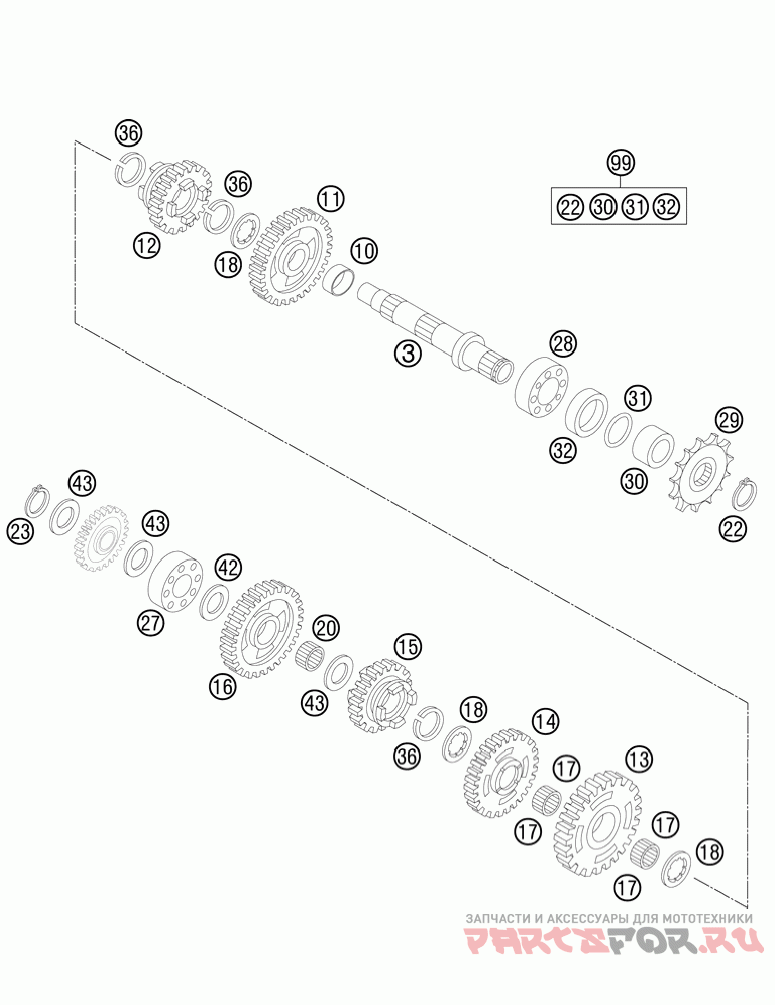

Трансмиссия 2-контрпривод

KTM 85 SX ENGINE

KTM
#oem кодцена
3
47033003100
Промежуточный вал
10
47033021000
Idler Gear Bushing 07
11
47033011200
Idler Gear 2nd G. 28-t 09
12
47033012100
Sliding Gear 6th G. 21-t
13
47033013200
Idler Gear 3rd G.
14
47033014200
Idler Gear 4th G.
15
47033015100
Sliding Gear 5th G. 25-t
16
47033016000
Idler Gear 1st G. 29-t 03
17
50133099000
Needle Cage K18x22x10 Parted
18
47033095000
Регулировочная прокладка
20
47033099000
Needle Bearing K15x19x10s
22
49033091000
Circlip As20x1, 75
23
0471150010
Circlip Din0471-15x1
27
0625160020
Ball Bearing 16002 C3
28
0625062041
Ball Bearing 6204 Jr2 C4
29
47033029013
Engine Sprocket 13-t 85 Sx 03
29
47033029014
Engine Sprocket 14-t 85 Sx 03
30
47033030000
Spacer For Sprocket
31
0770020180
O-ring 18, 77x1, 78 Nbr 70
32
0760263560
Shaft Seal Ring 26x35x6
36
0417210120
Circlip Sw21
42
47033040000
Stop Disc 15x25x1
43
47033043000
Stop Disc 15x25x0, 5
99
00050000942
Counter Shaft Rep.kit 105/85sx
