Рама для мотоциклов KTM 85 SX CHASSIS (2013)

Москва и регионы России

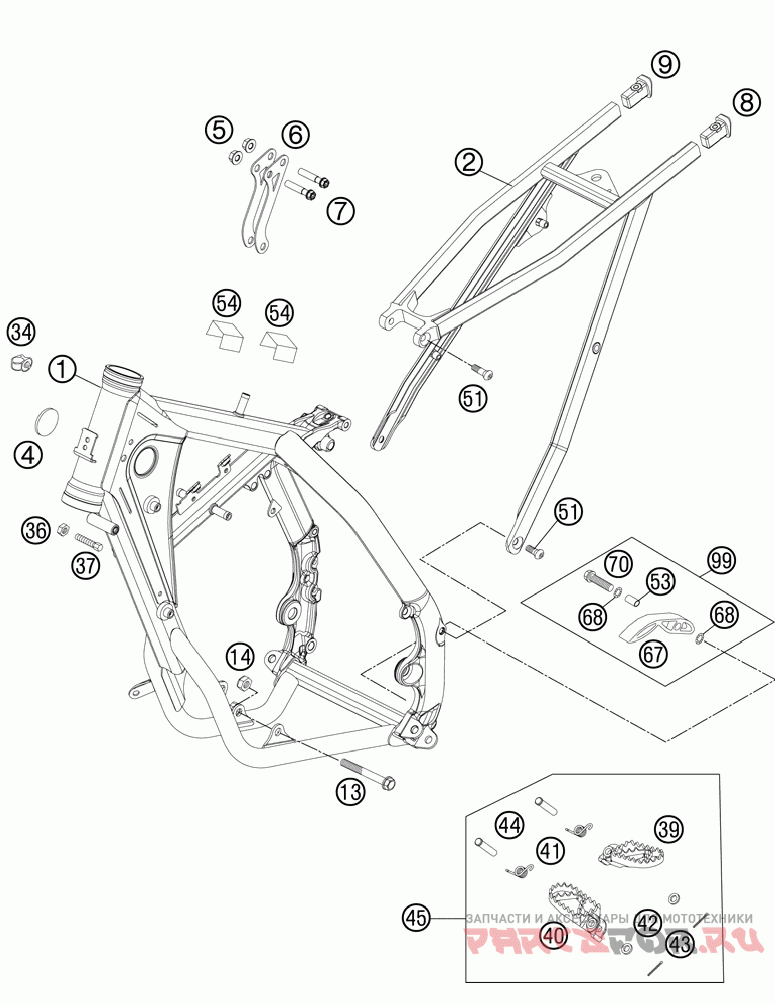

Рама

KTM 85 SX CHASSIS

Рама

#

oem код

название

цена

4

Plug 37mm

Plug 37mm

5

Self Locking Nut M8 10.9

Self Locking Nut M8 10.9

6

Reinforcing

Reinforcing

7

Hh Collar Screw M8x35 Tx40

Hh Collar Screw M8x35 Tx40

8

Sub Frame Application Left 08

Sub Frame Application Left 08

9

Sub Frame Application Right 08

Sub Frame Application Right 08

13

Engine Bracket Screw 85 Sx

Engine Bracket Screw 85 Sx

14

Self Locking Nut M10 Cu Ws=14

Self Locking Nut M10 Cu Ws=14

34

Cable Support Khs Nr.150-47610

Cable Support Khs Nr.150-47610

36

Hexagon Nut Din0934-m 8

Hexagon Nut Din0934-m 8

37

Special Screw M8x26 Ws=10

Special Screw M8x26 Ws=10

39

Foot Ped L/s Exc Silver 2000

Foot Ped L/s Exc Silver 2000

40

Foot Ped R/s Exc Silver 2000

Foot Ped R/s Exc Silver 2000

41

Footrest Spring L/s & R/s

Footrest Spring L/s & R/s

42

Washer Din0125-a10, 5

Washer Din0125-a10, 5

43

Pin Din0094-3, 2x25 Steel

Pin Din0094-3, 2x25 Steel

44

Bolt For Foot Ped 03

Bolt For Foot Ped 03

45

Footpeg L.+r. Cpl. 85 Sx 03

Footpeg L.+r. Cpl. 85 Sx 03

51

Flat Head Screw M. Isa45 M8x20

Flat Head Screw M. Isa45 M8x20

53

Bushing 8, 2x10x20

Bushing 8, 2x10x20

54

Adh. Foil Transp. 80x80 Mm 04

Adh. Foil Transp. 80x80 Mm 04

67

Chain Sliding Piece Below '97

Chain Sliding Piece Below '97

68

Стопорная шайба 8 мм

Стопорная шайба 8 мм

70

Hh Collar Screw M8x30 Tx40

Hh Collar Screw M8x30 Tx40

1

Frame ""471m3"" Anthr.-met.

Frame ""471m3"" Anthr.-met.

2

Sub Frame

Sub Frame
