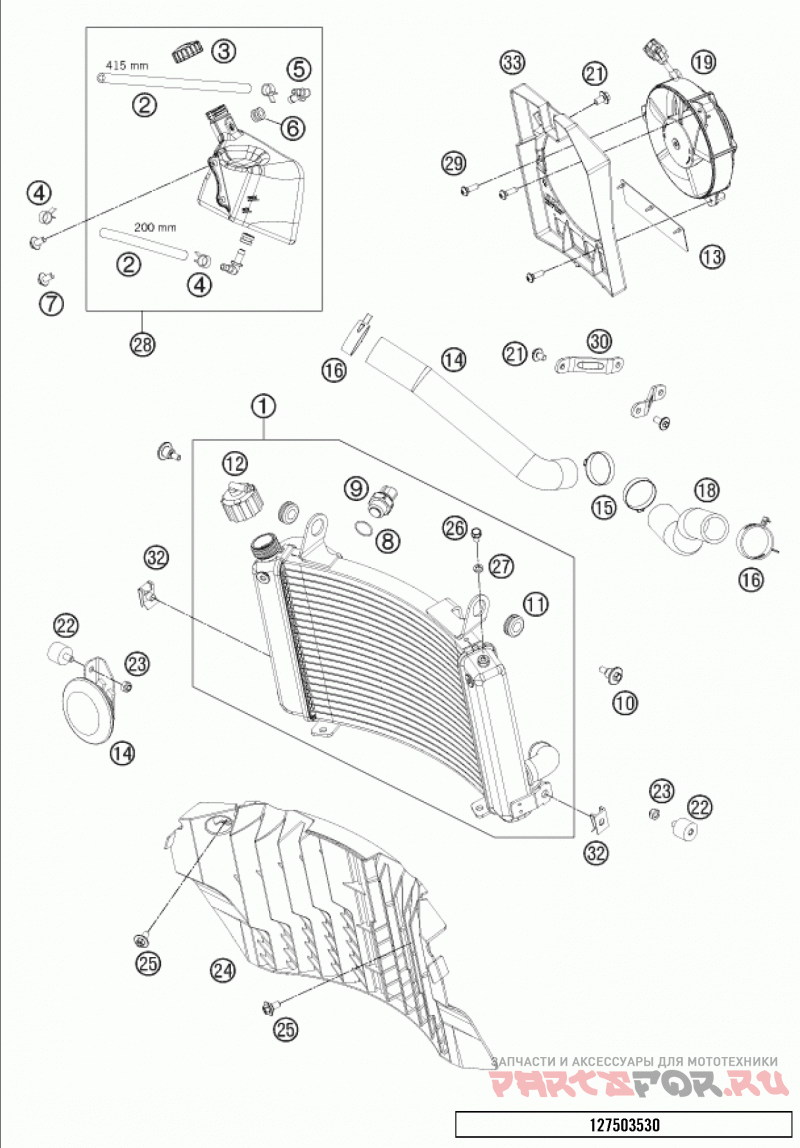

Система охлаждения

KTM 690 ENDURO ENGINE

KTM
#oem кодцена
1
76535010300
Радиатор
2
60035067001
Hose 6x10 Epdm 03
3
60035066000
Plug F. Expansion Tank
4
58007117000
Ydnac-clamp 10107 10mm
5
60035068000
Angle Connection Expans. Tank
6
60035069000
Rubber Grommet 6x9x13mm 04
7
0023060123
Collar Screw M6x12 Tx
8
0770017015
O-ring 17x1, 5 Nb75
9
60035045000
Thermoswitch Lc8 102dg '03
10
60038083000
Screw Oil Tank Fixing 03
11
41001052000
Rubber Sleeve D=12mm
12
62535009000
Radiator Cap 1, 4 Bar
13
62635044050
Fan Clack Rubber 08
14
76535025000
Radiator Hose 08
16
00049320121
Clamp Std Dn32
18
76535024000
Radiator Hose 08
19
62635041000
Ventilator
21
0024060106
Hh Collar Screw M6x10 Tx30
22
43205062100
Rubber Grommet 20x15-m6x10 (1)
23
0985060003
Self Lock. Nut Din0985-m 6
25
83008000012
Special Screw M6x12x3
27
60035048000
Alu-gasket 6x10x1.5
28
76535065000
Expansion Tank Cpl. 07
29
0081050161
Болт 50x16 1451
30
76535001000
Retaining Plate Radiator 08
32
54603048100
Range Change Metal Nut M6
15*
00050325706
Variable One-ear Clamp 32, 5mm
24*
76535140000
Radiator Guard
26*
0025060126
Hh Collar Screw M6x12 Tx30
