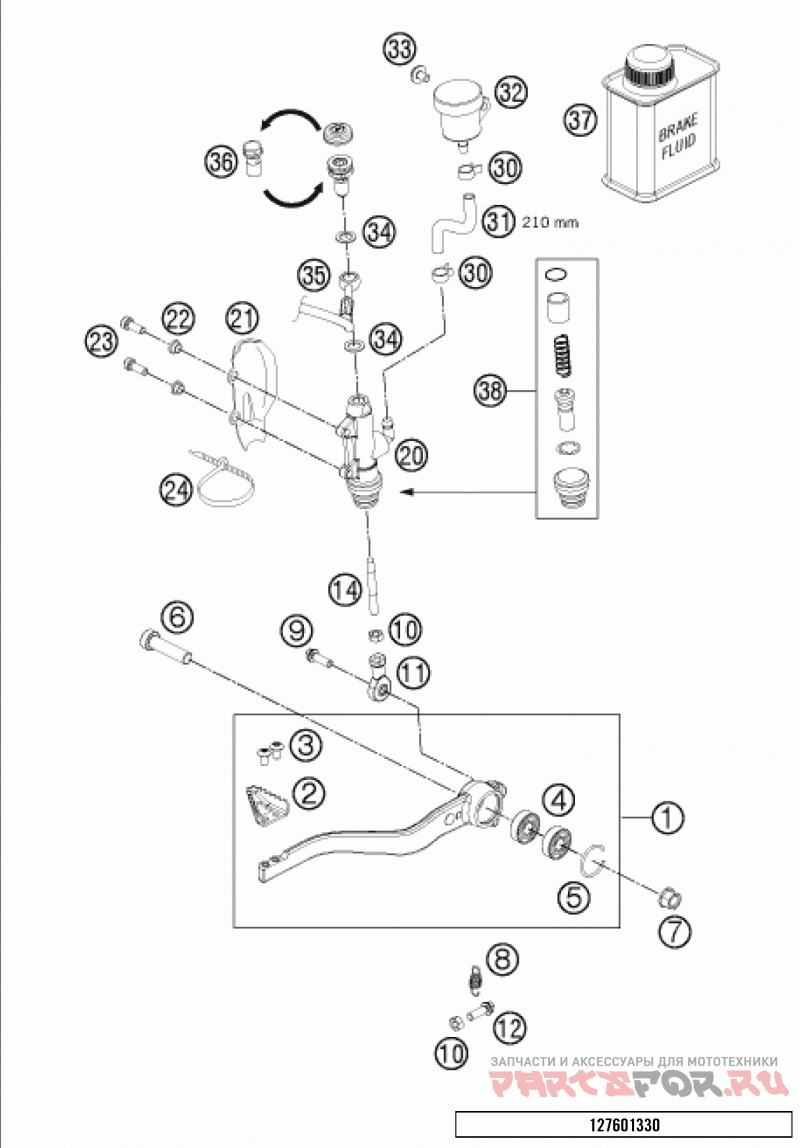

Тормозной цилиндр задний

KTM 690 DUKE BLACK CHASSIS

KTM
#oem кодцена
1
7501305004401
Foot Brake Lever Cpl. 07
2
60013051000
Step Plate Foot Brake Lever 03
3
58605083010
Screw Torx M5x10 05
4
0625060002
Ball Bearing Skf 6000-2rs1
5
0993026500
Lock Ring Din7993-b26
6
0032100406S
Ah-collar Screw M10x40 Isa45
7
54630044000
Collar Nut M10 Ws=13
8
61013052000
Spring Foot Brake Lever 05
9
0025060206S
Hh Collar Screw M6x20 Tx30
10
0934060003
Hexagon Nut Din0934-m 6
11
54603069000
Swivel Head M6 Foot Brake Lev.
12
59009062019
Special Screw M6x19 Ws=8 10.9
14
54603068000
Pressure Rod Alu 250 '90
20
54513101044
Main Brake Cylinder '89
21
54513038000
Brake Cyl. Protector ""brembo""
22
50213161000
Collar Bushing
23
0025060206S
Hh Collar Screw M6x20 Tx30
24
44011076200
Cable Tie 200/3, 6mm Black
30
58007017000
Зажим
31
69013069001
Шланг для бачка 6х1
32
54513030044
Brake Fluid Reservoir '89
33
0024060106
Hh Collar Screw M6x10 Tx30
34
0603100141
Copper Gasket Din7603-10x14x1
35
76042003000
Brake Pipe
36
54813020100
Hollow Screw Black M10x1x19
37
00062030000
Тормозная жидкость Dot5 0,25 ml
38
54513150000
Repair Kit Piston 13mm
