Масляная система для мотоциклов KTM 50 MINI ENGINE (2013)

Москва и регионы России

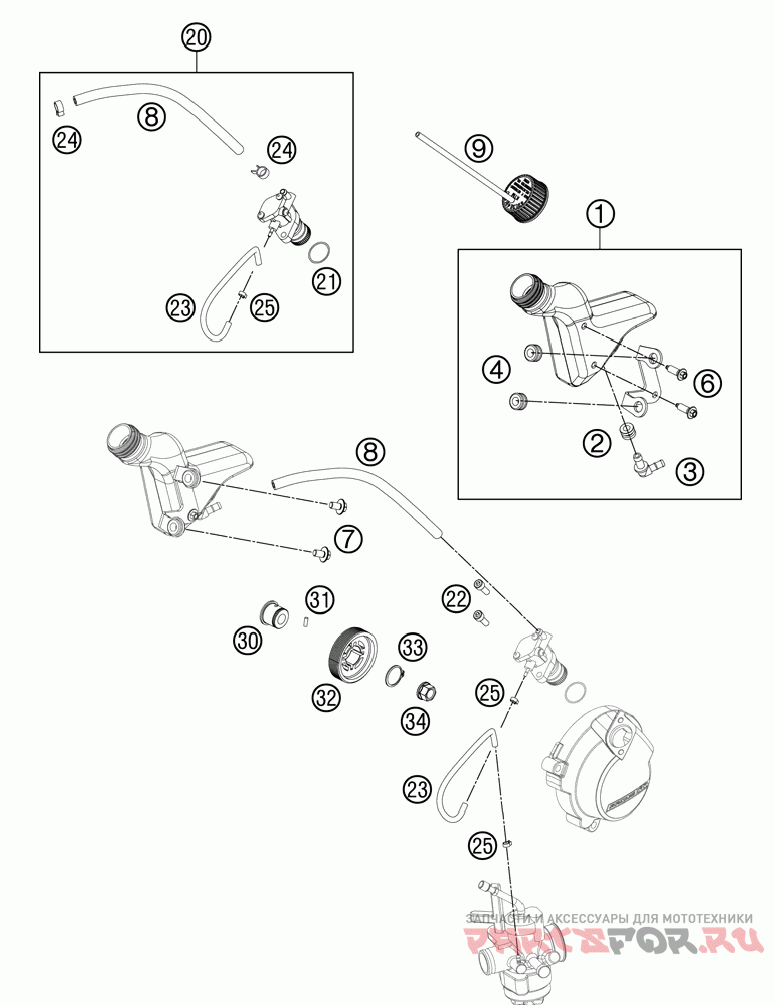

Масляная система

KTM 50 MINI ENGINE

Масляная система

#

oem код

название

цена

1

Oil Tank Cpl. 50sx Mini 2012

Oil Tank Cpl. 50sx Mini 2012

2

Rubber Grommet 6x9x13mm 04

Rubber Grommet 6x9x13mm 04

3

Angle Connection Expans. Tank

Angle Connection Expans. Tank

4

Rubber Sleeve D=8mm Open

Rubber Sleeve D=8mm Open

6

Ejot Pt Screw K60x20 Ws=6

Ejot Pt Screw K60x20 Ws=6

7

Hh Collar Screw M6x10 Tx30

Hh Collar Screw M6x10 Tx30

8

Hose 5x9mm

Hose 5x9mm

9

Oil Tank Screw Sx Mini

Oil Tank Screw Sx Mini

20

Масляный насос

Масляный насос

21

O-ring 19, 10x1, 60 Nbr 70

O-ring 19, 10x1, 60 Nbr 70

22

Ah Screw Din0912-m 5x16

Ah Screw Din0912-m 5x16

23

Preform. Hose Carb.-pump 2x5mm

Preform. Hose Carb.-pump 2x5mm

24

Зажим

Зажим

25

Clamp 5 For Oil Pump

Clamp 5 For Oil Pump

30

Spacer For Oil Pump Gear

Spacer For Oil Pump Gear

31

Needle Pin Din5402 Nrb3x7, 8 G2

Needle Pin Din5402 Nrb3x7, 8 G2

32

Oil Pump Drive Wheel

Oil Pump Drive Wheel

33

Circlip Din0471-19x1, 2

Circlip Din0471-19x1, 2

34

Hh Collar Nut M10x1, 25 Ws=13

Hh Collar Nut M10x1, 25 Ws=13
