Трансмиссия 2-контрпривод для мотоциклов KTM 350 SXF ENGINE (2013)

Москва и регионы России

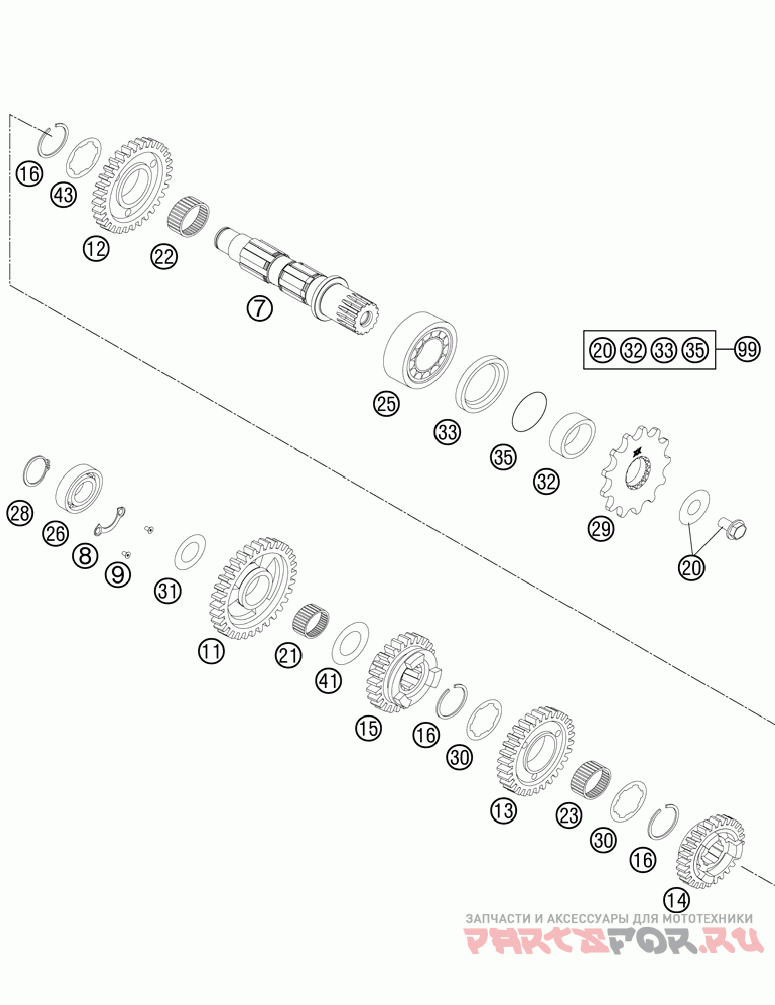

Трансмиссия 2-контрпривод

KTM 350 SXF ENGINE

Трансмиссия 2-контрпривод

#

oem код

название

цена

7

Промежуточный вал

Промежуточный вал

8

Tab Washer Bearing Count.shaft

Tab Washer Bearing Count.shaft

9

Int. Torx Flat Head M5x10 10.9

Int. Torx Flat Head M5x10 10.9

11

Idler Gear 1st G. 28-t ""1s28""

Idler Gear 1st G. 28-t ""1s28""

12

Idler Gear 2nd G. 26-t ""2s26""

Idler Gear 2nd G. 26-t ""2s26""

13

Idler Gear 3rd G. 24-t ""3s24""

Idler Gear 3rd G. 24-t ""3s24""

14

Sliding Gear 4th G.24-t ""4s24""

Sliding Gear 4th G.24-t ""4s24""

15

Sliding Gear 5th G.21-t ""5s21""

Sliding Gear 5th G.21-t ""5s21""

16

Axial-circlip 25x1, 65

Axial-circlip 25x1, 65

20

Screw 10.9+spring Washer

Screw 10.9+spring Washer

21

Needle Bear. K20x24x13

Needle Bear. K20x24x13

22

Neddle Bear. K24x28x11, 9 Div.

Neddle Bear. K24x28x11, 9 Div.

23

Needle Bear. K 22x26x13 Tn

Needle Bear. K 22x26x13 Tn

25

Cyl.roll Bearing Nj205

Cyl.roll Bearing Nj205

26

Ball Bearing 6203 Jr2 C3

Ball Bearing 6203 Jr2 C3

28

Circlip Din 0471-17x1, 5

Circlip Din 0471-17x1, 5

29

Front Sprocket 13-t

Front Sprocket 13-t

29

Front Sprocket 14-t

Front Sprocket 14-t

30

Stop Disc 25, 2x32x1, 5

Stop Disc 25, 2x32x1, 5

31

Stop Disc 17, 2x30x1

Stop Disc 17, 2x30x1

32

Spacer Bushing 12mm

Spacer Bushing 12mm

33

Shaft Seal Ring 32x45x7 Bslnbr

Shaft Seal Ring 32x45x7 Bslnbr

35

O-ring 25, 12x1, 78 Nbr70

O-ring 25, 12x1, 78 Nbr70

41

Shim 20x32x1

Shim 20x32x1

43

Stop Disc 25, 2x32x1

Stop Disc 25, 2x32x1

99

Counter Shaft Rep.kit 4 Stroke

Counter Shaft Rep.kit 4 Stroke

9

Int. Torx Flat Head M5x10 10.9

Int. Torx Flat Head M5x10 10.9
