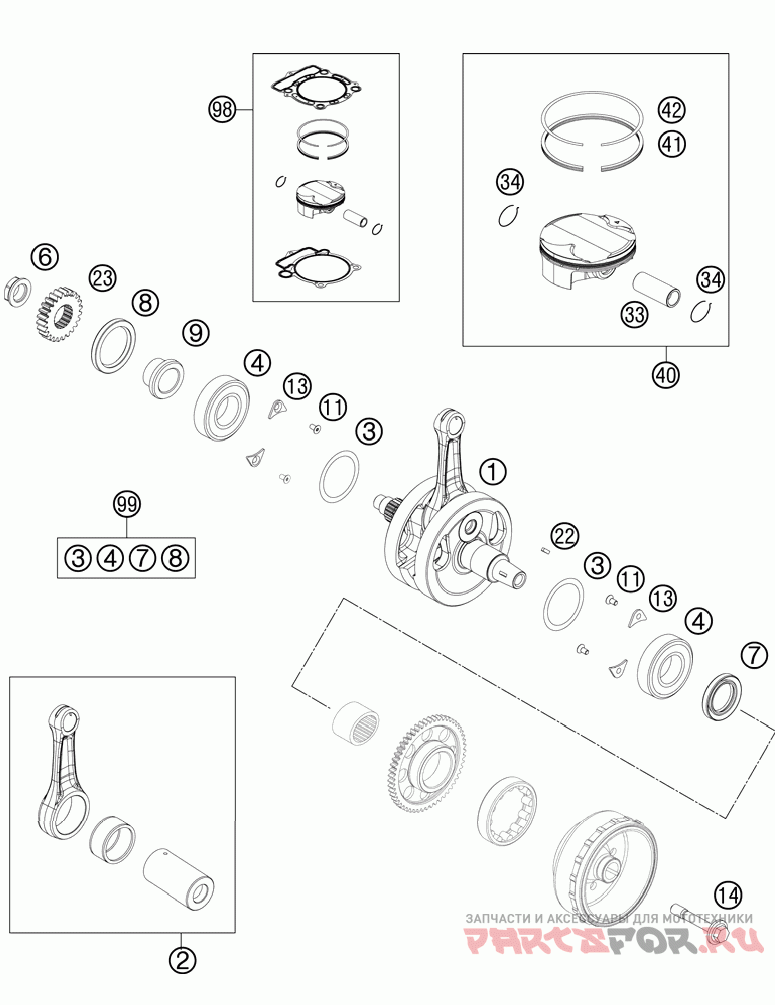

Коленвал и поршень для мотоциклов KTM 350 EXCF ENGINE (2013)

Москва и регионы России

Коленвал и поршень

KTM 350 EXCF ENGINE

Коленвал и поршень

#

oem код

название

цена

1

Crankshaft Cpl.

Crankshaft Cpl.

2

Connecting Rod Repair Set

Connecting Rod Repair Set

3

Thrust Washer 30, 5x45x0, 10

Thrust Washer 30, 5x45x0, 10

3

Thrust Washer 30, 7x47x0, 15

Thrust Washer 30, 7x47x0, 15

3

Thrust Washer 30, 5x45x0, 30

Thrust Washer 30, 5x45x0, 30

4

Bearing Nj 206 Ecp/hn3c4hva624

Bearing Nj 206 Ecp/hn3c4hva624

6

Nut Primary Wheel

Nut Primary Wheel

7

Sh.seal Ring 30x47x7 Bsl Viton

Sh.seal Ring 30x47x7 Bsl Viton

8

Shaft Seal Ring A40x55x6 Viton

Shaft Seal Ring A40x55x6 Viton

9

Spacer Bushing Primary Gear

Spacer Bushing Primary Gear

11

Int. Torx Flat Head M5x10 10.9

Int. Torx Flat Head M5x10 10.9

13

Retaining Plate F. Cs Bearing

Retaining Plate F. Cs Bearing

14

Flywheel Screw

Flywheel Screw

22

Woodruff Key Din6888-3x3, 7

Woodruff Key Din6888-3x3, 7

23

Primary Gear 24t.

Primary Gear 24t.

33

Piston Pin 350

Piston Pin 350

34

Пружинное стопорное кольцо

Пружинное стопорное кольцо

40

Piston I Cpl. 350

Piston I Cpl. 350

40

Piston Ii Cpl. 350

Piston Ii Cpl. 350

41

Scraper Ring 350

Scraper Ring 350

42

Compressionring 350

Compressionring 350

99

Crankshaft Rep. Kit 350sx-f

Crankshaft Rep. Kit 350sx-f

11

Int. Torx Flat Head M5x10 10.9

Int. Torx Flat Head M5x10 10.9

98

Piston Kit Gr.i 350 Exc-f12-13

Piston Kit Gr.i 350 Exc-f12-13

98

Piston Kit Gr.ii 350 Exc-f 12

Piston Kit Gr.ii 350 Exc-f 12
