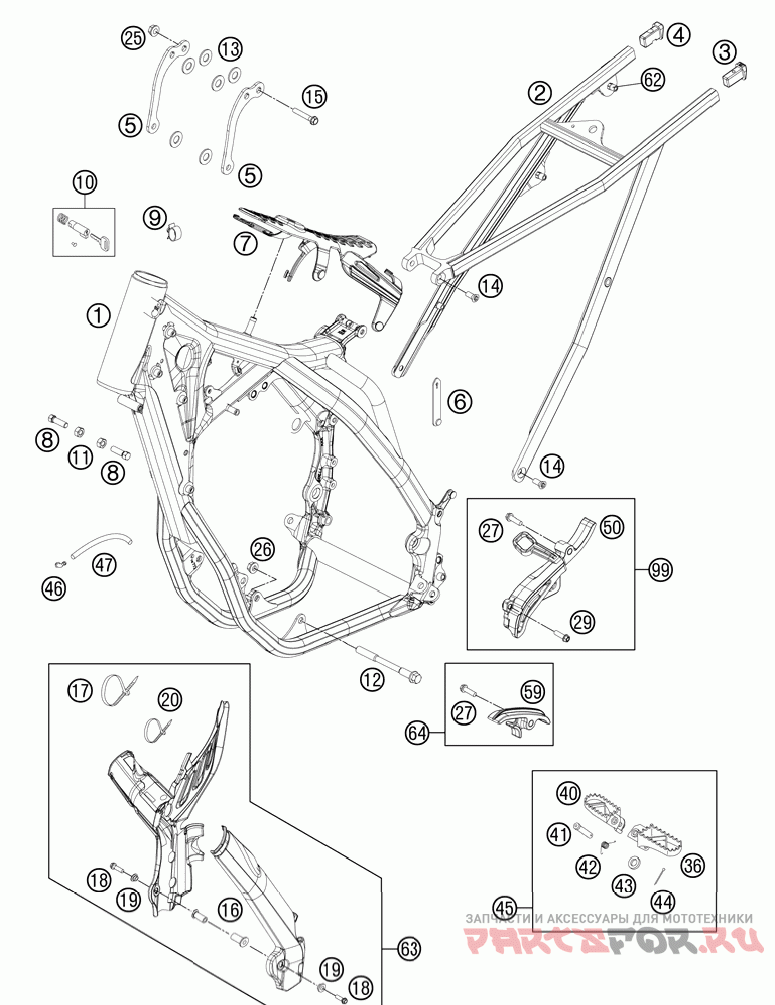

Рама

KTM 350 EXCF CHASSIS

KTM
#oem кодцена
2
77203002000
Sub Frame Sx
3
78003002010
Sub Frame Application Left 08
4
78003002020
Sub Frame Application Right 08
6
60011093075
Rubber Cable Tie 75mm 03
7
77207012000
Tank Rest Rubber
8
59001037000
Special Screw M8x26 Ws=10
9
57013072100
Wiring Holder 16mm
10
78003035000
Steering Head Lock 08
11
0934080003
Hexagon Nut Din0934-m 8
12
77203014000
Engine Brac.scr. M10x115
13
77003013050
Washer 8, 5x18x1 Inox
14
0019080206S
Flat Head Screw M. Isa45 M8x20
15
56530079000
Hh Collar Screw M 8x44 Ws13
16
54803092050
Blind Plug-in Nut M5 Wn 22a 03
17
44011076305
Cable Tie 300/4, 8mm Black
18
0738050250
Cou.sunk Scr. Ah Iso7380 M5x25
19
54803092060
Bush F. Frame Protection 03
20
44011076140
Cable Tie 140/2, 5mm Black
25
54310086200
Self Locking Nut M8 10.9
26
54310086100
Self Locking Nut M10 Cu Ws=14
27
0025080306
Hh Collar Screw M8x30 Tx40
29
0025060256
Воротник Винт M6x25 Tx30
36
78003040050
Footrest L/s 08
40
78003041050
Footrest R/s 08
41
54803044000
Bolt For Foot Ped 03
42
54603041000
Footrest Spring L/s & R/s
43
0125100003
Washer Din0125-a10, 5
44
0094032253
Pin Din0094-3, 2x25 Steel
45
78003040033
Footrest L/s + R/s Cpl. 09
46
50303089000
Angle Piece '97
47
55007016001
Pvc-hose 7x10 Per Meter
50
77203096000
Sprocket Cover 350 Sx-f
59
77203053000
Chain Sliding Piece Below
62
77303139000
Blind Rivet Nut Em6-60lf/hx
63
77203094000
Plastic Frame Protection Set
64
77203053010
Chain Sliding Kit Below Cpl.11
