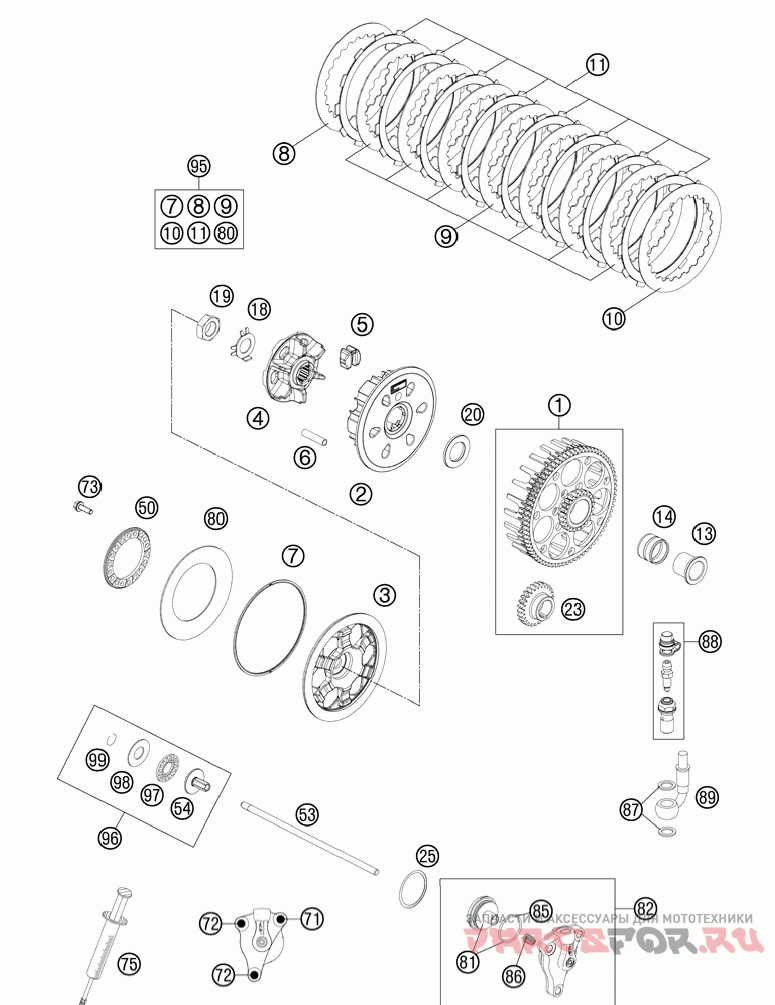

Сцепление

KTM 300 XC ENGINE

KTM
#oem кодцена
3
78132003000
Pressure Plate
5
78132025100
Damping Rubber
6
78132004000
Sleeve 7, 5x33.4
7
78132013000
Washer 112x118x1.5
8
59032010100
Intermediate Disc 1mm 2002
9
59032010200
Intermediate Disc 1, 4mm 2002
10
78932010000
Intermediate Disc 1mm
11
54832011100
Lining Disc 1, 95 Mm
14
56532095000
Needle Bearing K26x30x22zw.kse
18
78132018000
Tab Washer
19
0936181505
Hexagon Nut Din0936-m18x1, 5 R.
23
54832000026
Primary Gear 26t 2003
25
0770300015
O-ring 30, 00x1, 50 Nbr 70
54
78032057000
Pressure Piece
71
0025060306
Воротник Винт M6x30 Tx30
72
0025060206
Hh Collar Screw M6x20 Tx30
73
0025050166
Hh Collar Screw M5x16 Tx30
75
50329050000
Vent Injektion Hydr. Clutch
80
78132005000
Belleville Spring 71x115x1, 5 I
81
54832066000
Piston Cpl.
82
54832061044
Output Cylinder Cpl. 06
85
54832067000
Уплотнительное кольцо
86
54832069000
Pressure Spring
87
0603100141
Copper Gasket Din7603-10x14x1
88
62513020000
Bleeder Screw Cpl. 05
89
54832063000
Clutch Pipe 06
95
54832011110
Clutch Kit 250/300 13
96
78032057044
Pressure Piece Cpl. 08
97
54637097200
Axial Needle Bearing Axk 1226
98
54637098200
Axial Washer As1226 12x26x1
99
0993012000
Circlip Din7993-rw12
1
54832024044
Clutch Cage Incl. Prim. Wheel
2
54832002008
% Inner Clutch Hub
4
54832002111
Ступица диска сцепления
13
54832015000
% Collarsleeve
50
54832006000
Spring Ring
53
54832054100
Push Rod
