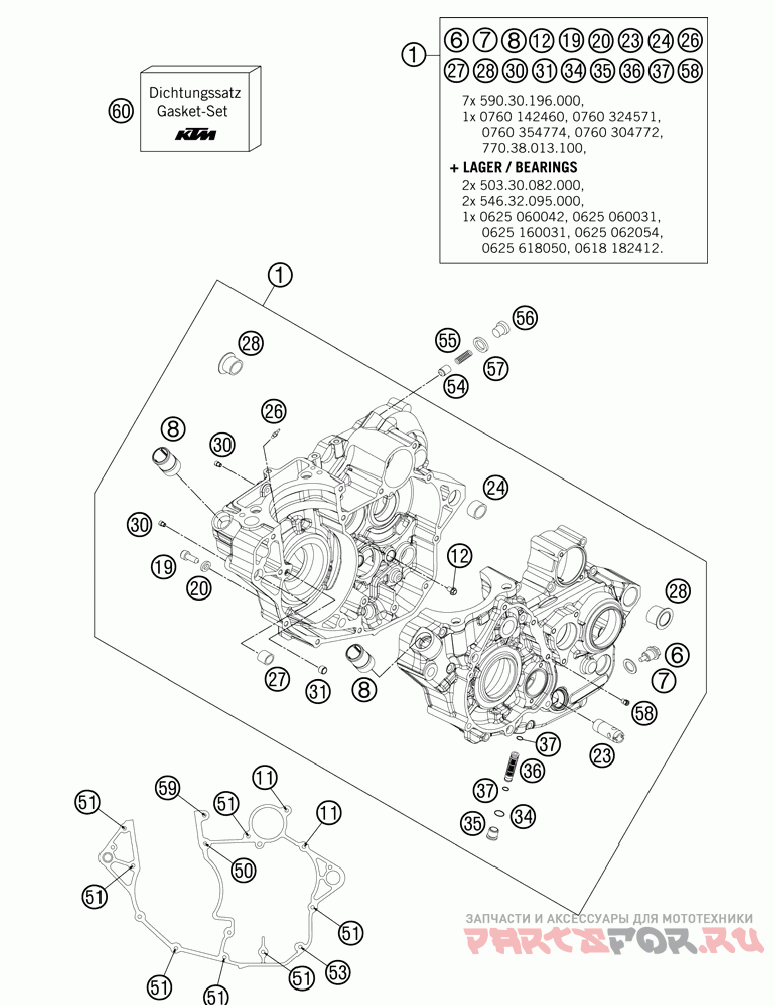

Картер двигателя

KTM 250 XCFW ENGINE

KTM
#oem кодцена
1
77130000244
Engine Case
6
58030021000
Пробка сливная с магнитом M12x1,5
7
58038022000
Кольцо 12x18x1, 5
8
58030010200
Screw In Nozzle M20x1, 5
11
0025060406
Hh Collar Screw M6x40 Tx30
12
0025060086
Hh Collar Screw M6x8 Tx30
19
58030080000
Locating Screw M8 L=23
20
58030081000
Cu-seal Ring 8 X 14 X 3
23
77038022000
Oil Intakepipe
24
59030024000
Dowel 17 X 19 X 12
26
60030064070
Oil Jet 70 M6x0, 75 Ws8 03
27
54630027000
Dowel Bushing 13, 8x11x12
28
75030010100
Case Bush
30
59030058000
Jet 100 Bing(44-031/180) M4
31
77130023000
Dowel 6x8x5, 5
34
0770120020
O-ring 12, 00x2, 00 Nbr 70
35
77038017000
Резьбовая пробка
36
59038015100
Oil Screen 11, 8x44, 5mm
37
07700900151
O-ring 9x1, 5 V75 Sh Din 3771
50
0025060656
Hh Collar Screw M6x65 Tx30
51
0025060506
Hh Collar Screw M6x50 Tx30
53
0025060306
Воротник Винт M6x30 Tx30
54
58038028000
Valve Piston D=10mm
55
58038023300
Pressure Spring L=25mm D=1mm
56
0908120153
Plug Din0908-m12x1, 5
57
58038022000
Кольцо 12x18x1, 5
58
80030058060
Oil Jet ""60"" M4
59
0025060606
Hh Collar Screw M6x60 Tx30
60
77030099100
Gasket Set 05-11
