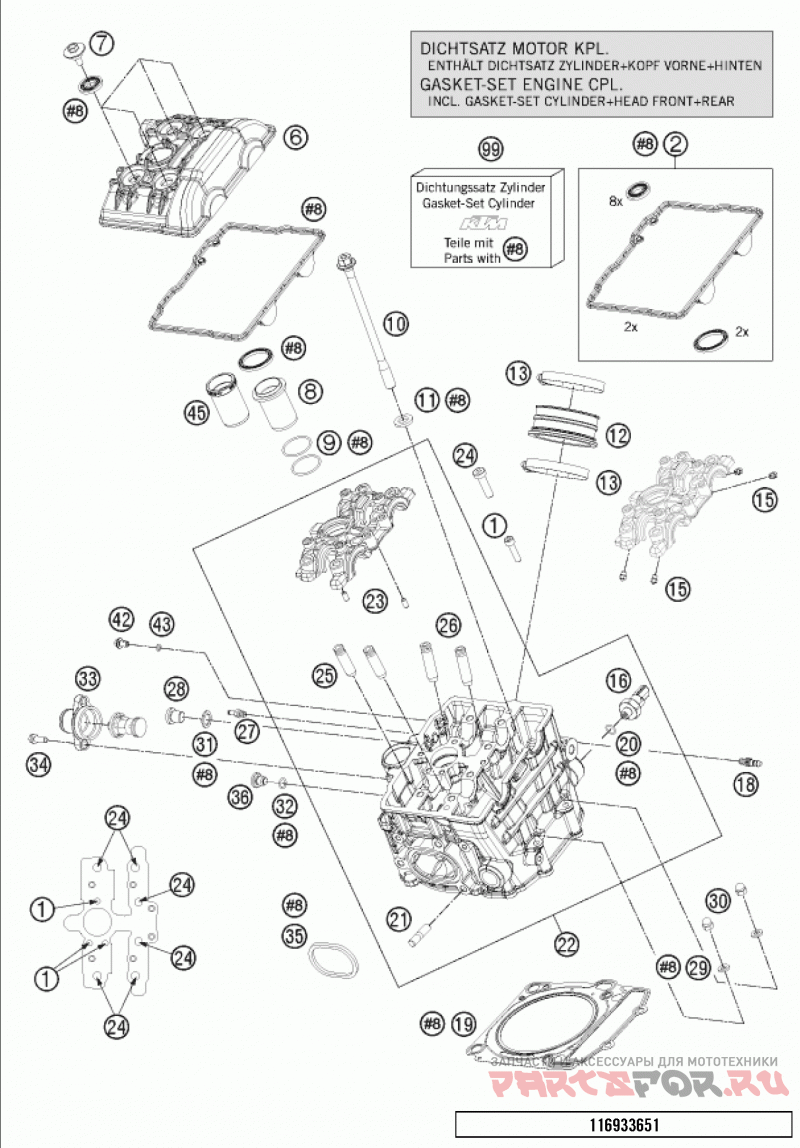

Головка цилиндра передняя для мотоциклов KTM 190 RC8R ENGINE (2013)

Москва и регионы России

Головка цилиндра передняя

KTM 190 RC8R ENGINE

Головка цилиндра передняя

#

oem код

название

цена

1

Ah Screw Din0912-m 6x25 10.9

Ah Screw Din0912-m 6x25 10.9

2

Valve Cover Gasket Set

Valve Cover Gasket Set

6

Valve Cover Front 09

Valve Cover Front 09

7

Collar Screw M 6 Ws=10 03

Collar Screw M 6 Ws=10 03

8

Insert Spark-plug Shaft 08

Insert Spark-plug Shaft 08

9

O-ring 29, 87x1, 78 Viton

O-ring 29, 87x1, 78 Viton

10

Cylinder Head Screw 08

Cylinder Head Screw 08

11

Washer 11, 1x20x3 08

Washer 11, 1x20x3 08

12

Rubbersleeve Intake Flange 08

Rubbersleeve Intake Flange 08

13

Hose Clamp Gemi 66 / 1

Hose Clamp Gemi 66 / 1

15

Oil Jet 50 05

Oil Jet 50 05

16

Oil Pressure Switch ""bitron""

Oil Pressure Switch ""bitron""

18

Vacuum Conection M6/0, 5mm

Vacuum Conection M6/0, 5mm

19

Cylinder Head Gasket Mls

Cylinder Head Gasket Mls

20

O-ring 8, 00x1, 5 Nbr 70

O-ring 8, 00x1, 5 Nbr 70

21

Stud M 8x16 10.9

Stud M 8x16 10.9

22

Cylinder Head Front

Cylinder Head Front

23

Needle Roller Din5402 5x9, 8

Needle Roller Din5402 5x9, 8

24

Ah Screw Din7984-m 8x30 10.9

Ah Screw Din7984-m 8x30 10.9

25

Valve Guide Exhaust 08

Valve Guide Exhaust 08

26

Valve Giude Intake 6mm

Valve Giude Intake 6mm

27

Vacuum Conection 2006

Vacuum Conection 2006

28

Plug Din0908-m12x1, 5

Plug Din0908-m12x1, 5

29

Washer Din0125-a 6, 4

Washer Din0125-a 6, 4

30

Cap Nut M6 Stainless Steel

Cap Nut M6 Stainless Steel

31

Кольцо 12x18x1, 5

Кольцо 12x18x1, 5

32

O-ring 9x1, 5 V80 Sh

O-ring 9x1, 5 V80 Sh

33

Water Connection Cpl.

Water Connection Cpl.

34

Hh Collar Screw M6x20 Tx30

Hh Collar Screw M6x20 Tx30

35

Exhaust Pipe Flange Gasket

Exhaust Pipe Flange Gasket

36

Резьбовая пробка

Резьбовая пробка

42

Vent Screw M6x10 Cpl.

Vent Screw M6x10 Cpl.

43

O-ring 5, 0x1, 2 Nbr 70

O-ring 5, 0x1, 2 Nbr 70

99

Gasket Kit Cylinder+head F+r

Gasket Kit Cylinder+head F+r
