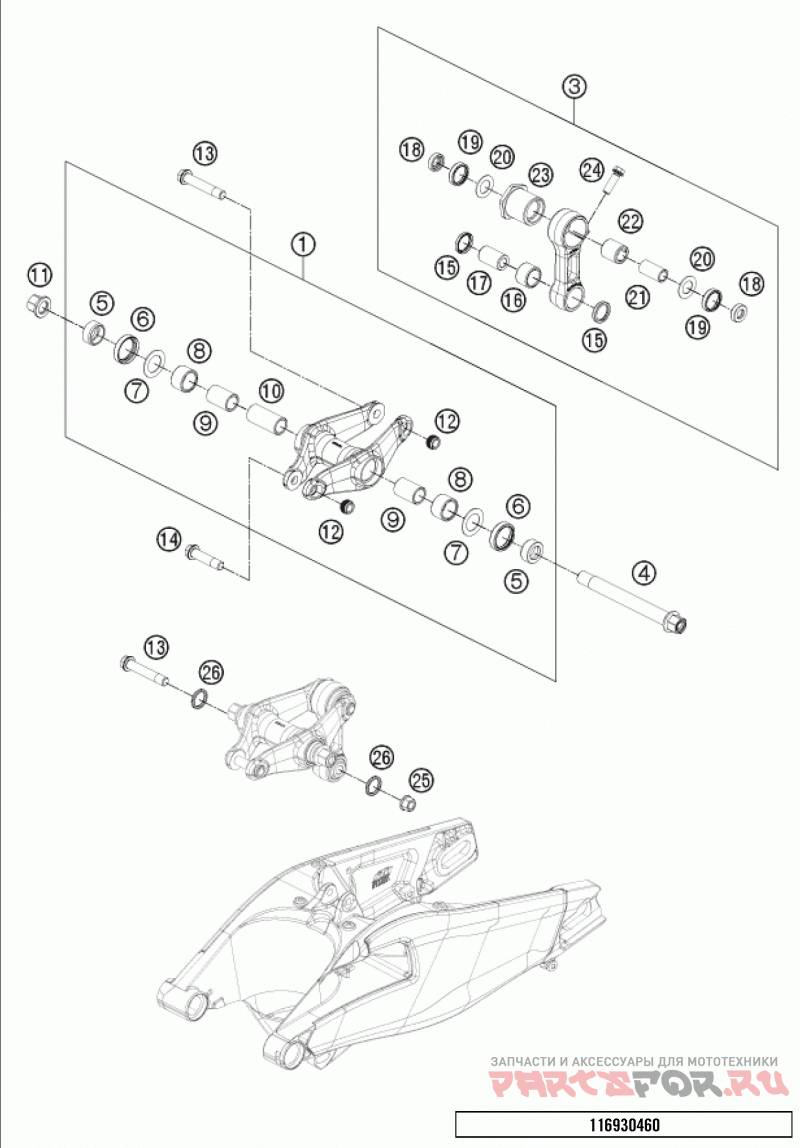

Соединение рычагов

KTM 190 RC8R CHASSIS

KTM
#oem кодцена
1
6900408004433S
Swing Arm Deflection Cpl.8% 09
3
6930408304433S
Connecting Rod Cpl.
4
69004081044
Bearing Bolt Swing Lever Cpl.
5
58303090000
Spac.f.shaft Sealring 15x25x11
6
0760253270
Shaft Seal Ring 25x32x7
7
59033080000
Shim 20x32x1
8
54603097000
Needle Bush Hk 2016
9
50203081800
Bearing Bushing
10
69004087000
Dist. Bushing Swing Lever 08
11
69004082000
Flange Nut M14x1, 5 Ws17
12
69004095000
Adaptor Nut M10
13
69004094000
Hh Collar Screw M10x56 Ws13 08
14
69004089000
Hh Collar Screw M10x42 Ws13 08
15
0760182442
Shaft Seal Ring 18x24x4
16
56503195100
Needle Bearing Hk 1816
17
69004085000
Bear. Bush. Conn. Rod Below 08
18
69004093000
Bucket F. Shaft Seal Ring 08
19
0760202640
Shaft Seal Ring 20x26x4 Nbr
20
69004092000
Stop Disc 15, 1x25, 9x1mm 08
21
69004088000
Bear. Bush. Conn. Rod Above 08
22
0618152200
Needle Sleeve Hk1522
24
0025080256
Винт M8x25 Tx40
25
54630044000
Collar Nut M10 Ws=13
26
69004096000
Quad-ring 17, 12x2, 62x2, 62 Nbr
