Рама

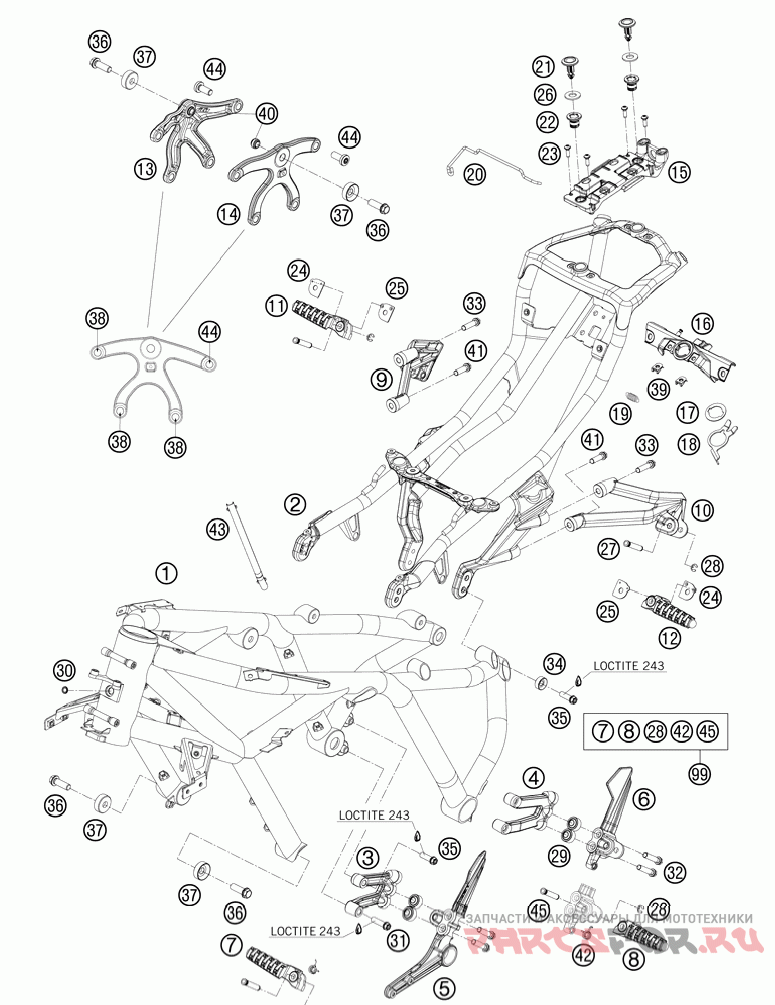

KTM RC8R TRACK CHASSIS

KTM
#oem кодцена
1
6900300100004
Frame ""oa08"" Orange 09
2
6900300200033
Sub Frame Black 09
3
6900303900033S
Footrest Bracket R/s 09
4
6900303800033S
Footrest Bracket L/s 09
5
6900303905033S
Footrest Mounting R/s 09
6
6900303805033S
Footrest Mounting L/s 09
7
6900304100033S
Footrest Front R/s 09
8
6900304000033S
Footrest Front L/s 09
9
6900304900033S
Footrest Bracket Rear R/s
10
6900304800033S
Footrest Bracket Rear L/s
11
6900305103333S
Footrest Rear R/s Cpl.
12
6900305003333S
Footrest Rear L/s Cpl.
13
6900300600033S
Engine Support R/s Black 09
14
6900300500033S
Engine Support L/s Black 09
15
69008025000
Rear Seat Adjustment
16
69008027000
Lock Bridge
17
69008025070
Washer Lever Rear Seat Release
18
69008025160
Lever Rear Seat Release
19
69008025080
Spring F. Rear Seat Lock
20
69008025150
Adjustment Wire Rear Seat
21
69008026050
Closure Cap
22
69008026000
Guide Bushing
23
0081050161
Болт 50x16 1451
24
60003052000
Engage Panel Footrest R/s 03
25
60003152000
Engage Panel Footrest L/s 03
26
69008026060
Washer Rc8
27
60003044000
Bolt For Footrest Rear 03
28
0799060003
Tab Washer Din6799-rs 6, 0
29
6900304700001
Distance Bushing 8, 5x21x14
30
0760171030
Shaft Seal Ring17x10x3 Nbr
31
0025080306S
Hh Collar Screw M8x30 Tx40
32
0025080356S
Hh Collar Screw M8x35 Tx40
33
0025080556
Hh Collar Screw M8x55 Tx40
34
6900300400033
Washer Sub Frame Mounting 09
35
0025080256S
Винт M8x25 Tx40
36
0035100309S
Ah-collar Screw M10x30 Isa45
37
6900300700033
Washer Engine Support 09
38
0035100249
Ah-collar Screw M10x24 Isa45
39
69008021080
Range Change Metal Nut M5
40
69004095000
Adaptor Nut M10
41
0025080506
Hh Collar Screw M8x50 Tx40
42
61003042000
Spring Footrest Front 05
43
69011047000
Cable Duct Brake Light Sw. Rc8
44
0025100246
Collar Screw M10x24 Tx
45
60003044100
Bolt For Footrest Rear
