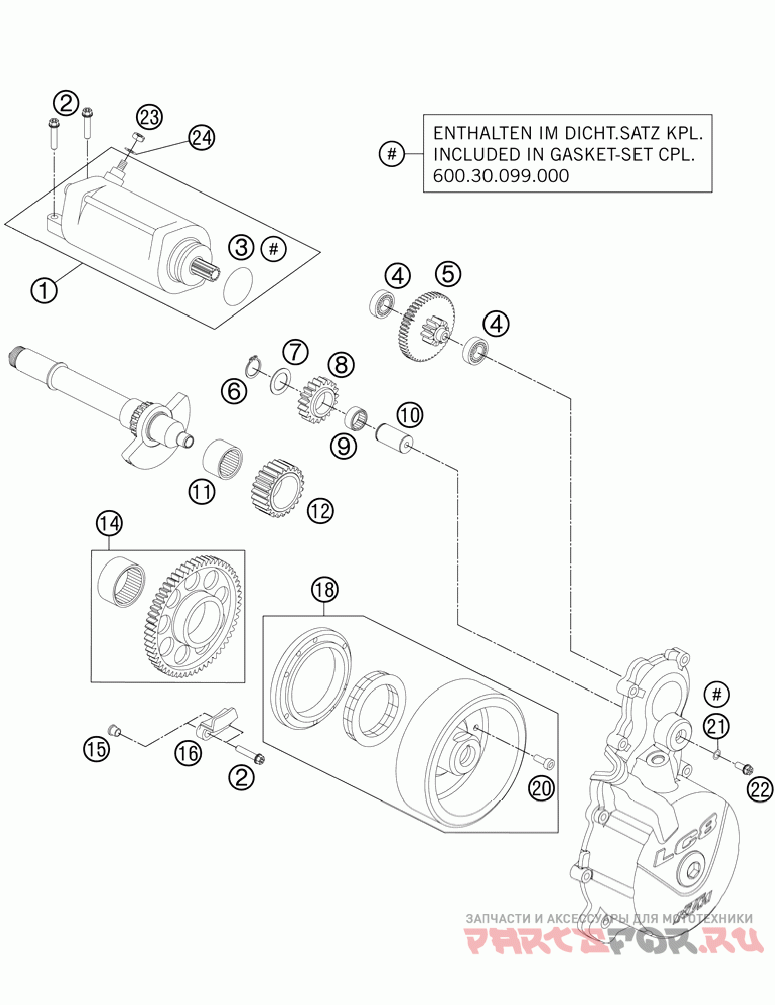

Elctric starter

KTM 990 SMT ENGINE

Elctric starter

#

oem код

название

цена

1

E-starter Engine Cpl. Lc8-e 03

E-starter Engine Cpl. Lc8-e 03

2

Воротник Винт M6x25 Tx30

Воротник Винт M6x25 Tx30

3

O-ring 33, 5x3 Viton

O-ring 33, 5x3 Viton

4

Groov.ball Bear. 16001 Jrx C3

Groov.ball Bear. 16001 Jrx C3

5

Torque Limiter

Torque Limiter

6

Circlip Din0471-17x1

Circlip Din0471-17x1

7

Stop Disc 17, 2x26x1 B

Stop Disc 17, 2x26x1 B

8

Idler Gear 1 19z

Idler Gear 1 19z

9

Needle Bearing K 17x21x10

Needle Bearing K 17x21x10

10

Bearing Bolt

Bearing Bolt

11

Needle Bush Hk2520 25/32/20 02

Needle Bush Hk2520 25/32/20 02

12

Idler Gear 2 23-t 03

Idler Gear 2 23-t 03

14

Freewheel Gear Wh. 57-t Cpl.03

Freewheel Gear Wh. 57-t Cpl.03

15

Supporting Sleeve 03

Supporting Sleeve 03

16

Freewheel Holder 03

Freewheel Holder 03

18

Ignition Rotor 04

Ignition Rotor 04

20

Ah Screw Din6912 M6x16 10.9

Ah Screw Din6912 M6x16 10.9

21

Cu-seal Ring Din7603-6x10x1

Cu-seal Ring Din7603-6x10x1

22

Hh Collar Screw M6x16 Tx30

Hh Collar Screw M6x16 Tx30

23

Self Lock. Nut Din0985-m 6

Self Lock. Nut Din0985-m 6

24

Washer Din0125-a 6, 4

Washer Din0125-a 6, 4
