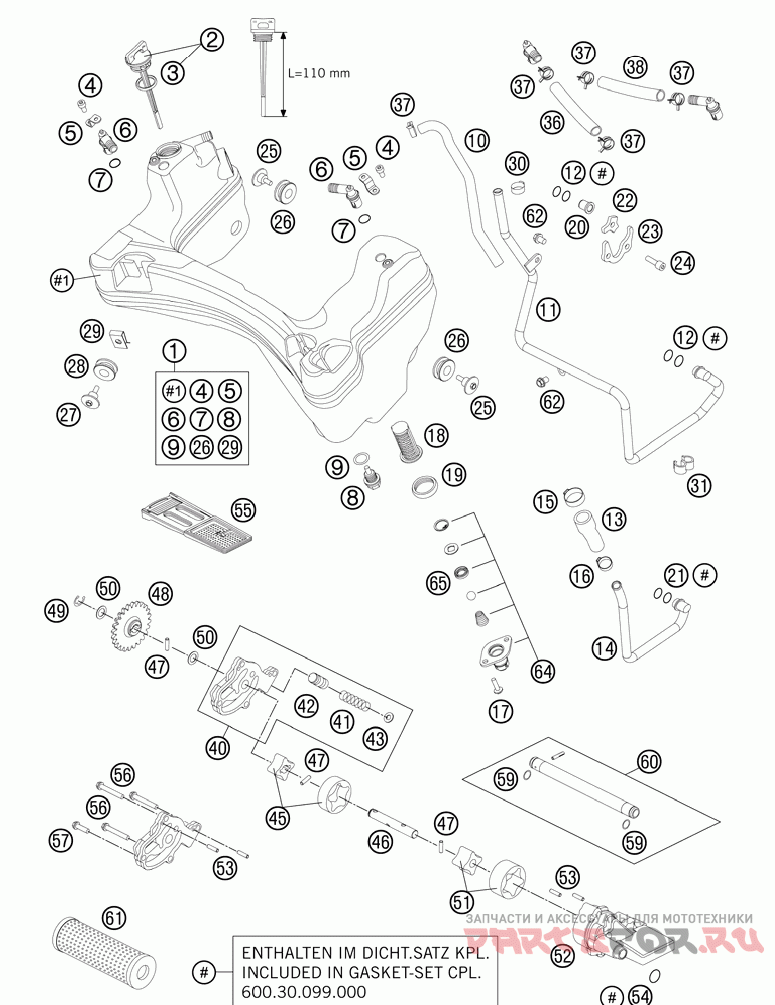

Масляная система для мотоциклов KTM 990 ADVR ENGINE (2012)

Москва и регионы России

Масляная система

KTM 990 ADVR ENGINE

Масляная система

#

oem код

название

цена

1

Oil Tank Cpl.

Oil Tank Cpl.

2

Oil Dipstick Cpl. W. O-ring 05

Oil Dipstick Cpl. W. O-ring 05

3

Кольцо 19,00x3,00

Кольцо 19,00x3,00

4

Ah Screw Din0912-m 5x10

Ah Screw Din0912-m 5x10

5

Bracket F. Efi-plug

Bracket F. Efi-plug

6

Angle Connector Lc8 03

Angle Connector Lc8 03

7

O-ring 8x2 Silicone

O-ring 8x2 Silicone

8

Пробка сливная с магнитом M12x1,5

Пробка сливная с магнитом M12x1,5

9

Кольцо 12x18x1, 5

Кольцо 12x18x1, 5

10

T-connector W. Reduction Ring

T-connector W. Reduction Ring

11

Oil Pipe ""b""

Oil Pipe ""b""

12

O-ring 9x2 Viton

O-ring 9x2 Viton

13

Pre-formed Hose 10x3, 5

Pre-formed Hose 10x3, 5

14

Oil Pipe ""a""

Oil Pipe ""a""

15

Variable One-ear Clamp 22, 6mm

Variable One-ear Clamp 22, 6mm

16

Variable One-ear Clamp 19, 8mm

Variable One-ear Clamp 19, 8mm

17

Hh Collar Screw M6x16 Tx30

Hh Collar Screw M6x16 Tx30

18

Oil Screen Finished 03

Oil Screen Finished 03

19

Gasket For Oil Filter Hnbr 03

Gasket For Oil Filter Hnbr 03

20

Plug 10mm Lc8 03

Plug 10mm Lc8 03

21

O-ring 11x2 Viton

O-ring 11x2 Viton

22

Retaining Plate 2 Lc8 03

Retaining Plate 2 Lc8 03

23

Retaining Plate 1 Lc8 03

Retaining Plate 1 Lc8 03

24

Ah Screw Din0912-m 6x16

Ah Screw Din0912-m 6x16

25

Screw Oil Tank Fixing 03

Screw Oil Tank Fixing 03

26

Damp. Compon. Black

Damp. Compon. Black

27

Special Screw M6x21 Ws=8

Special Screw M6x21 Ws=8

28

Rubber Sleeve D=12mm

Rubber Sleeve D=12mm

29

Range Change Metal Nut M6

Range Change Metal Nut M6

30

Variable One-ear Clamp 18, 5mm

Variable One-ear Clamp 18, 5mm

31

Distance Holder 10/10 Black

Distance Holder 10/10 Black

36

Oil Tank Breathing Hose R/s

Oil Tank Breathing Hose R/s

37

Clamp Std Dn16

Clamp Std Dn16

38

Oil Tank Breathing Hose L/s

Oil Tank Breathing Hose L/s

40

Pressure Pump Housing Cpl. 10

Pressure Pump Housing Cpl. 10

41

Control Spring Lc8 3, 5 Bar

Control Spring Lc8 3, 5 Bar

42

Control Piston Lc8 03

Control Piston Lc8 03

43

Регулировочная прокладка

Регулировочная прокладка

46

Масляный Насос Вал

Масляный Насос Вал

47

Needle Roller Nrb 4x15, 8 G2

Needle Roller Nrb 4x15, 8 G2

48

Oil Pump Gear 24-t

Oil Pump Gear 24-t

49

Tab Washer Din6799 Rs8

Tab Washer Din6799 Rs8

50

Washer 10x16x0, 5 03

Washer 10x16x0, 5 03

51

Oil Pump Rotor Compl. 19mm

Oil Pump Rotor Compl. 19mm

52

Suction Pump Case 03

Suction Pump Case 03

53

Needle Rol.din5402 Nrb 4x9, 8

Needle Rol.din5402 Nrb 4x9, 8

54

O-ring 13, 3x2, 4 Viton

O-ring 13, 3x2, 4 Viton

55

Oil Screen 03

Oil Screen 03

56

Hh Collar Screw M6x40 Tx30

Hh Collar Screw M6x40 Tx30

57

Воротник Винт M6x25 Tx30

Воротник Винт M6x25 Tx30

59

Кольцо 10,00x1,00

Кольцо 10,00x1,00

60

Oil Injection Tube Gear 05

Oil Injection Tube Gear 05

61

Oilfilter 2014

Oilfilter 2014

62

Hh Collar Screw M6x10 Tx30

Hh Collar Screw M6x10 Tx30

64

Oil Tank Valve Cpl.

Oil Tank Valve Cpl.

65

Shaft Seal Ring 10x18x4 Bsl V.

Shaft Seal Ring 10x18x4 Bsl V.
