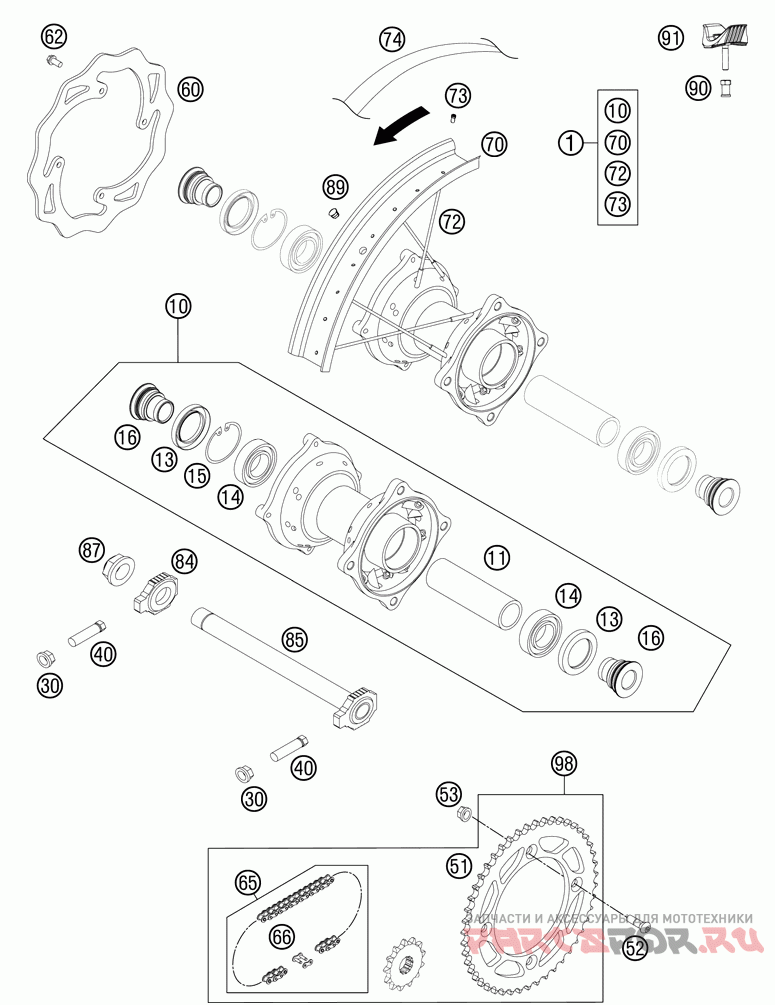

Заднее колесо

KTM 85 SX CHASSIS

KTM
#oem кодцена
1
47010101144
Rear Wheel Cpl. 14""
10
70010010044
Rear Wheel Hub Cpl. 12
13
0760324771
Shaft Seal Ring 32x47x7 Bsl
14
0625060058
Gr.ball Bear.6005 Ddu2cg23s6nm
15
0472047175
Circlip Din0472-47x1, 75
16
78010016000
Bushing For Hub 08
30
58414030000
Hh Collar Nut M10x1, 25 Ws=13
40
50304040100
Screw M10x1, 25x50 Ws=10
51
47010051044
Rear Sprocket 44-t 85 Sx 03
51
47010051045
Rear Sprocket 45-t 85 Sx 03
51
47010051046
Rear Sprocket 46-t 85 Sx 03
51
47010051047
Rear Sprocket 47-t 85 Sx 03
51
47010051048
Rear Sprocket 48-t 85 Sx 03
51
47010051049
Rear Sprocket 49-t 85 Sx 03
51
47010051050
Rear Sprocket 50-t 85 Sx 03
51
47010051051
Rear Sprocket 51-t 85 Sx 06
52
0019080266S
Counter-sunk Screw Isa45 M8x26
53
54310086200
Self Locking Nut M8 10.9
60
47010060500
Rear Brake Disc
62
59009062016
Special Screw M6x16 Ws=8 10.9
65
47010165124
Chain 124 Rolls 85 Sx
66
47010166000
Connecting Link 85 Sx
70
47010070000
Rim Rear Al4 14x1, 60-32 03
72
47010071000
Spoke M4, 5 For 14""
73
77109072000
Spoke Nipple M4, 5 Al 11
74
47010073000
Rim Band 85 Sx 14"" 2003
84
50310084000
Chain Tensioner R/s 2000
85
47010085044
Axle Rear Cpl. 85 Sx 2003
87
50310099000
Hexagon Nut M20x1, 5 '98
89
55003135000
Plug For Rim
90
77110090050
Nut For Wheel Holder
91
51009100100
Rim Lock Vm1 (1, 60"")
98
00050002002
Drivetrain Kit 85 Sx 14t/46t
11
70010011000
Bear.spacer Tube 12
