Соединение рычагов для мотоциклов KTM 690 ENDURO CHASSIS (2012)

Москва и регионы России

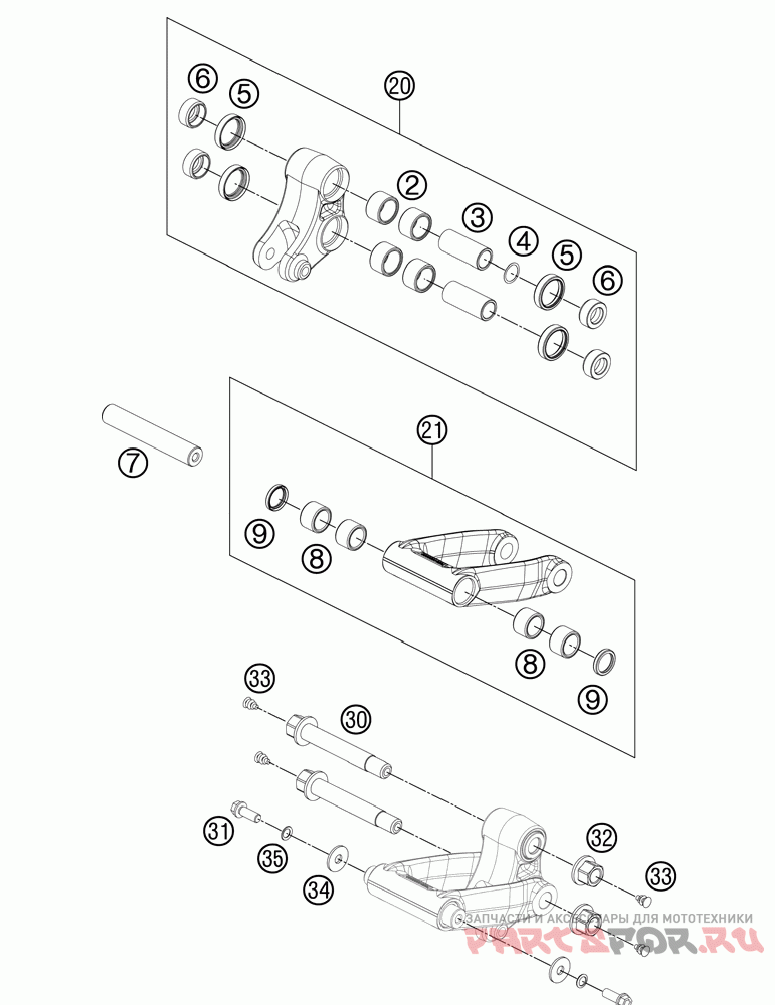

Соединение рычагов

KTM 690 ENDURO CHASSIS

Соединение рычагов

#

oem код

название

цена

2

Needle Bush Hk 2016

Needle Bush Hk 2016

3

Bushing Sleeve 15 X 20 X 48

Bushing Sleeve 15 X 20 X 48

4

Steel Washer 15, 2x19x0, 1

Steel Washer 15, 2x19x0, 1

4

Steel Washer 15, 2x19x0, 2

Steel Washer 15, 2x19x0, 2

4

Steel Washer 15, 2x19x0, 3

Steel Washer 15, 2x19x0, 3

5

Shaft Seal Ring 25x32x7

Shaft Seal Ring 25x32x7

6

Bucket For Shaft Seal Ring

Bucket For Shaft Seal Ring

7

Pull Rod Anchor Bolt

Pull Rod Anchor Bolt

8

Needle Bearing Hk 1816

Needle Bearing Hk 1816

9

Shaft Seal Ring 18x24x4

Shaft Seal Ring 18x24x4

20

Cantilever Cpl. 07

Cantilever Cpl. 07

21

Pull Rod Cpl. 08

Pull Rod Cpl. 08

30

Bolt Cpl. M14x1, 5

Bolt Cpl. M14x1, 5

31

Hh Collar Screw M8x16 Tx40

Hh Collar Screw M8x16 Tx40

32

Self Locking Nut M14x1, 5 Ws=19

Self Locking Nut M14x1, 5 Ws=19

33

Plastic Cap Sfl10

Plastic Cap Sfl10

34

Washer Din9021-a 8, 4

Washer Din9021-a 8, 4

35

Стопорная шайба 8 мм

Стопорная шайба 8 мм
