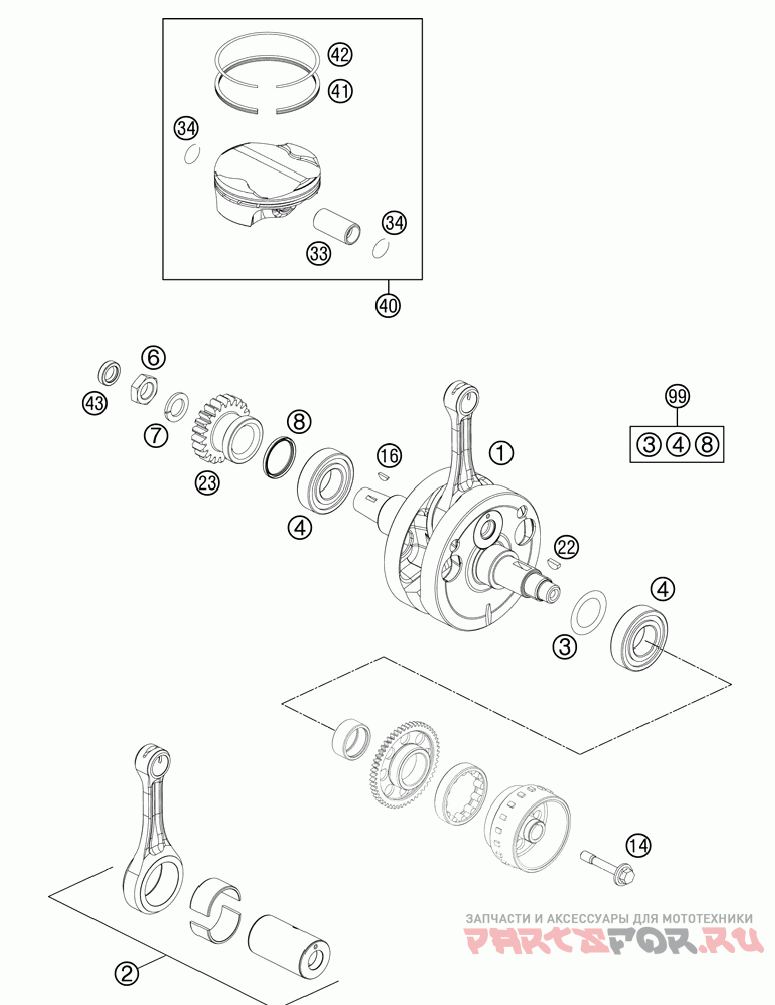

Коленвал и поршень

KTM 250 XCF ENGINE

KTM
#oem кодцена
1
77130018100
Crankshaft Cpl.
2
77130015044
Connect. Rod Repair Set
3
56030081000
Thrust Washer 30, 5x45x0, 10
3
56030081100
Thrust Washer 30, 7x47x0, 15
3
56030081200
Thrust Washer 30, 5x45x0, 30
4
50330082000
Подшипник
6
54630029000
Гайка M18x1, 5
7
58132072000
Гровер
8
0760354240
Sh.seal Ring 35x42x4 B10fnib
14
77339010100
Flywheel Screw
16
6946005
Шпонка 5x6
22
0888030037
Woodruff Key Din6888-3x3, 7
23
77132000022
Primary Gear 22t.
34
77030074000
Circlip 05
40
77130007100 I
Piston Cpl. D=76mm
40
77130007100 II
Piston Cpl. D=76mm
41
77130032000
Oil Scraper Ring
42
77030030200
Compression Ring
43
0760142460
Shaft Seal Ring 14x24x6 B
99
00050002302
Crankshaft Rep. Kit 250sx-f/
