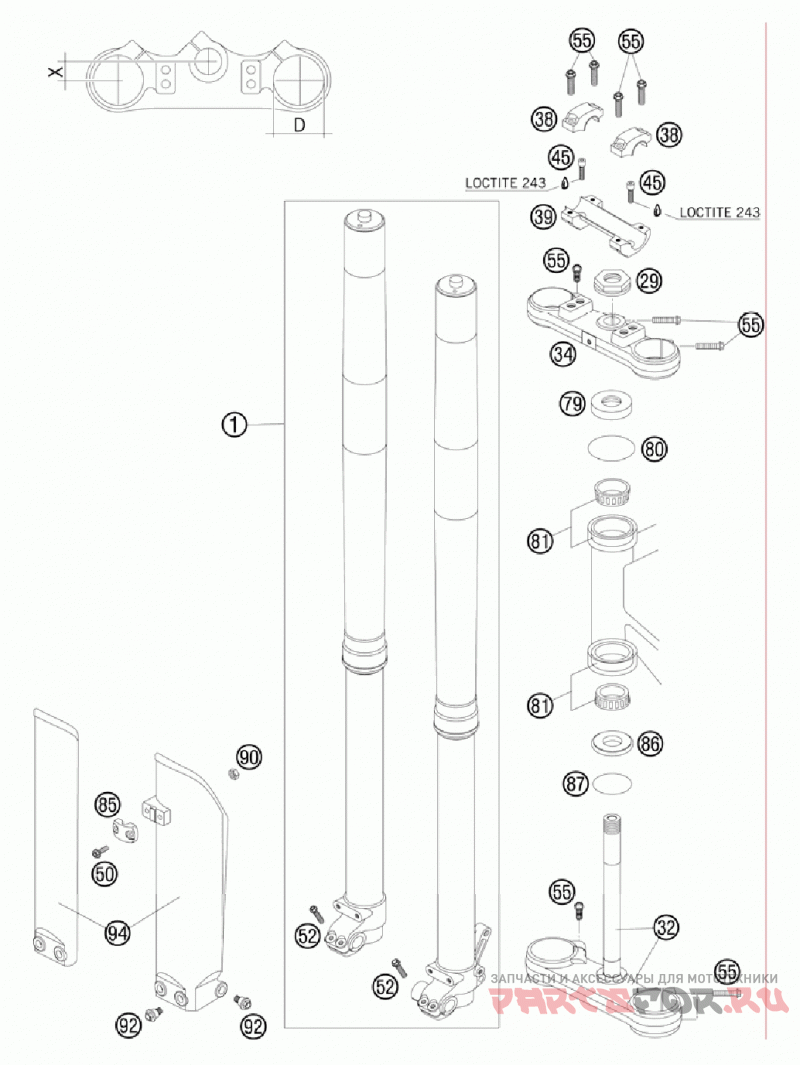

Передняя вилка

KTM 85 SX CHASSIS

KTM
#oem кодцена
1*
05187K0501
Fork Ktm 85/105 Sx 2011
29
59030029000
Hh Nut M20x1, 5 Ws=27 Right
32
47001032014
Bot.triple Clamp Cpl. 85 Sx 03
34
47001034014
Top Triple Clamp 85 Sx 2003
38
50301038000
Handlebar Clamp D=22mm 2001
39
59001039000
Handlebar Support 22mm 2t 2000
50
0025050166
Hh Collar Screw M5x16 Tx30
52
0025060206
Hh Collar Screw M6x20 Tx30
55
0025080306
Hh Collar Screw M8x30 Tx40
79
49001086000
Covering Cap
80
0770021300
O-ring 40, 94x2, 62 Nbr70
81
49001081000
Tapered Roller Bearing 32004x
86
46001086000
Protection Ring 20, 1x39x5
87
0770360030
O-ring 36, 00x3, 00 Nbr
90
0985050003
Самоконтрящаяся Гайка 0985-м DIN 5
92
59001092050
Special Screw M6x12, 5 Ws=8
45*
0032100256S
Ah-collar Screw M10x25 Isa45
85*
5460108500028
Brake Hose Clip
94*
4700109400028
Fork Protector Set 85/105 Whi
