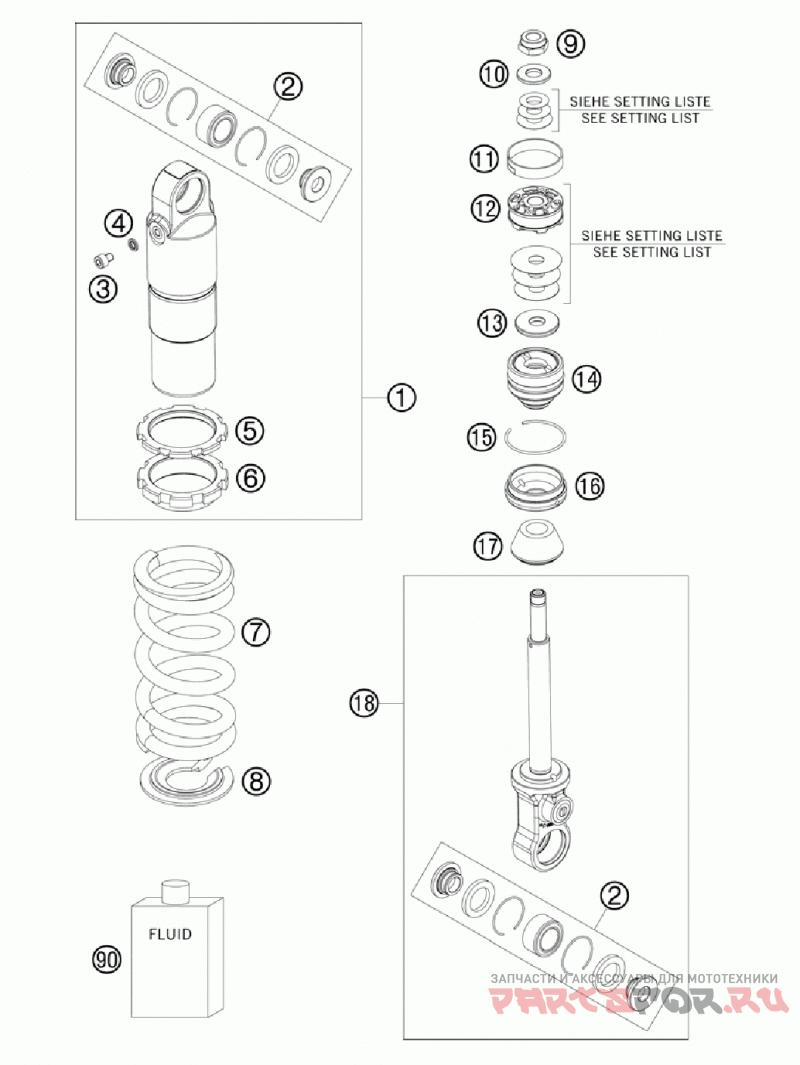

Амортизатор в разборе

KTM 50 SX MINI CHASSIS

KTM
#oem кодцена
1
36120784S
Monoshock Top Part L140 Cpl.07
1
03189E04
Monoshock 50 Sx Mini 2009
2
R306
Repair Kit Bearings 50sx Jun07
2
0125100003
Washer Din0125-a10, 5
3
36120785
Screw M5 C.k. Rvs
3
0982100003
Self Lock.nut Din0982-m10 High
4
36120782
Seal D5, 21xd8, 38x1, 22
4
0931100453
Hh Screw Din0931-m10x45
5
36120015
Counternut
6
36120418
Adjusting Nut
8
36120461
Spring Retainer D=39
9
36120052
Piston Rod Nut M10x1
10
36120604
Shim D10xd22x2, 5
11
36120040
Piston Ring 8x1x108, 3
12
36120071
Piston 6+6xd5.5/3.5
13
36120786
Rebound Disc H=10 D=28, 5
14
36120787S
Adaptor 36mm H26, 6 Cpl. 07
15
40540015
Circlip 38x1, 5
16
36120780
Reservoir Cap D=36 H=9, 5
17
36120427
Bump Rubber Wp65 L=20
18
36120777S1
Monosh. Bottom Part L86 Cpl.07
90
50180342S1
Shock Absorber Fluid 5 Lt '03
