Трансмиссия 2-контрпривод

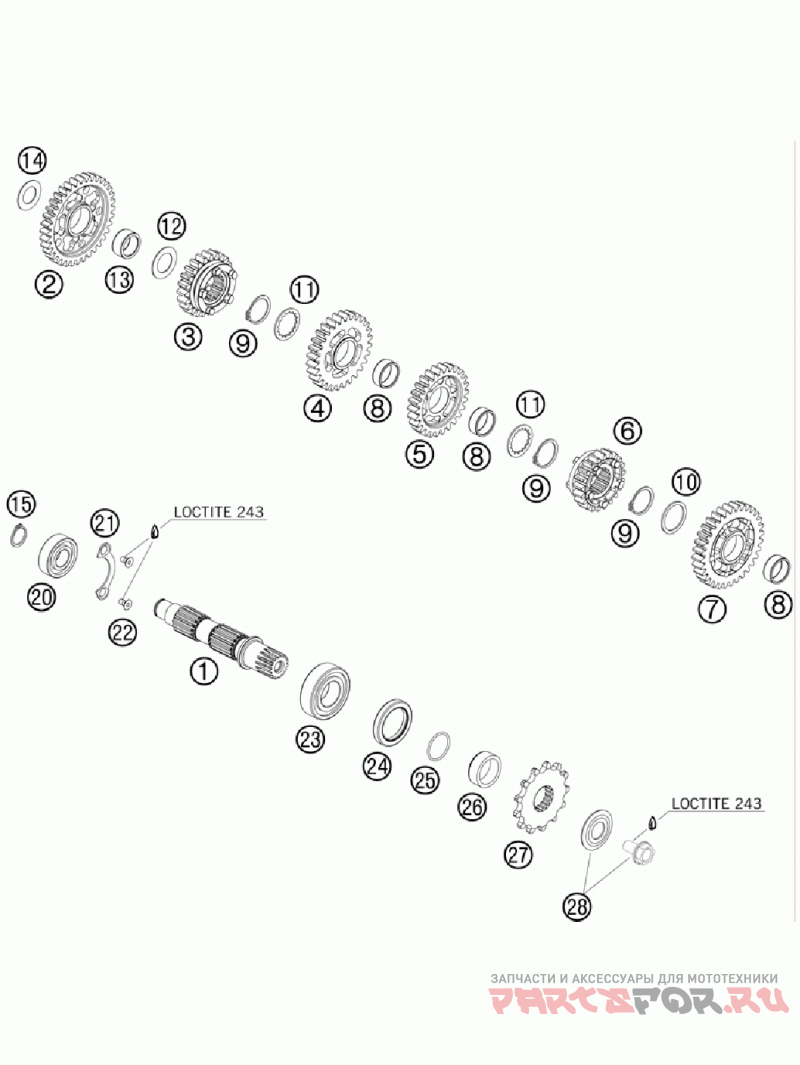

KTM 450 XC-W SD ENGINE

KTM
#oem кодцена
1
78033010000
Countershaft 08
2
78033011100
Idler Gear 1. Gear
3
78033015000
Sliding Gear 5.g. 08
4
78033013000
Idler Gear 3.g. 08
5
78033014000
Idler Gear 4.g. 08
6
78033016000
Sliding Gear 6.g. 08
7
78033012100
Idler Gear 2. Gear
8
0405222611
Needle Bear.k 22x26x10 Divided
9
0471250120
Circlip Din0471-25x1, 2
10
78033031000
Stop Disk 26 X 32 X 1, 5
11
78033033000
Stop Disk 23 X 32 X 1, 5
12
59033080000
Shim 20x32x1
13
0405202612
Needle Bearing K 20x26x12
14
56033030000
Stop Disc 17, 2x30x1
15
0471170015
Circlip Din 0471-17x1, 5
20
0625062035
Ball Bearing 6203 Jr2 C3
21
78033132000
Tab Washer Bearing Count.shaft
22
0019050103
Int. Torx Flat Head M 5x10 8.8
23
49030023000
Cyl.roll Bearing Nj205
24
0760324571
Shaft Seal Ring 32x45x7 Bslnbr
25
0770020220
O-ring 25, 12x1, 78 Nbr70
26
54633014100
Spacer Bushing 12mm
28
59033034044
Screw 10.9+spring Washer
