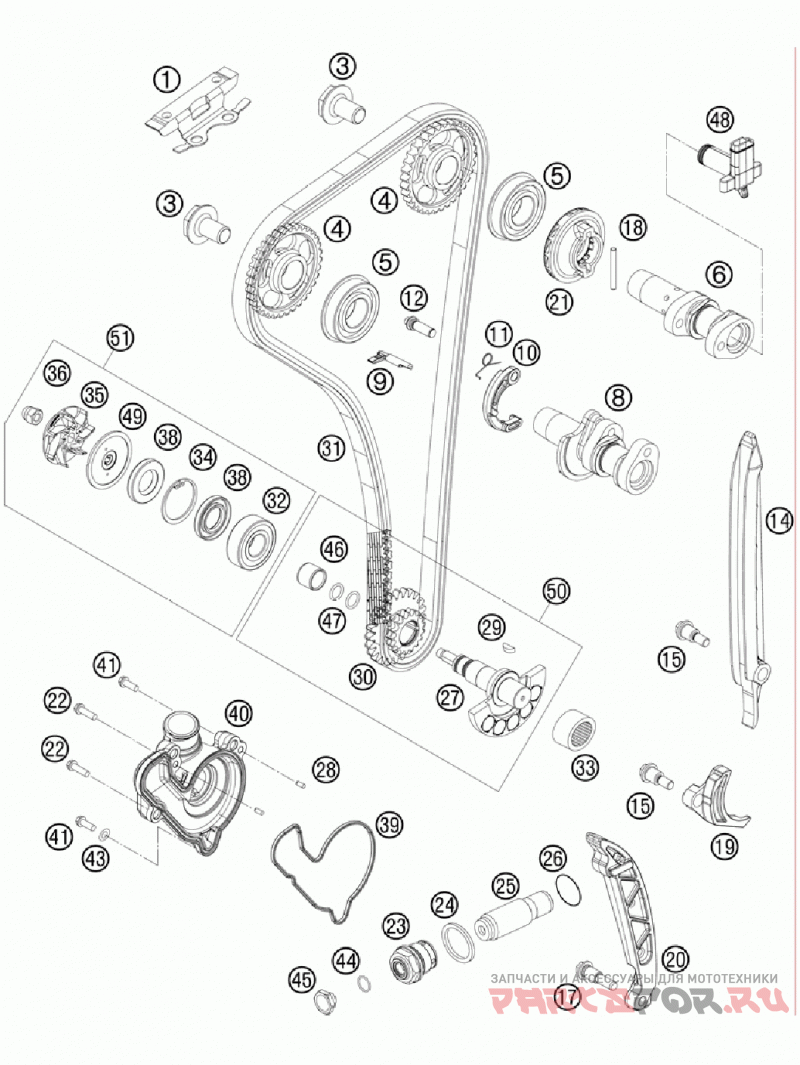

Газо-распределительный механизм

KTM 350 SX-F ENGINE

KTM
#oem кодцена
1
77236004000
Timing Chain Guide Top
3
77036012100
Camshaft Gear Screw 08
4
77236011000
Шестерни Распредвала
5
0625060043
Ball Bearing 6004 Nr C3 05
6
77236009000
Распред.вал впускной
10
77036016100
Auto Deco Weight
14
77236001000
Timing Chain Guide
15
77236001060
Bushing Screw M6
17
77236002060
Bushing Screw M8
18
0402035298
Needle Rooler Nrb 3.5x29.8-g2
19
77236005000
Securing Protection
20
77236002000
Tensioning Rail
21
77236082000
Ventilation Gear Cpl.
22
0025060406
Hh Collar Screw M6x40 Tx30
23
77336008000
Holding Bolt M24x1, 5
24
0603242920
Cu Seal-ring Din7603 A24x29x2
25
77036003000
Натяжитель
26
0770180020
O-ring 18, 00x2, 00 Nbr 70
28
0402040980
Needle Rol.din5402 Nrb 4x9, 8
29
0888030037
Woodruff Key Din6888-3x3, 7
31
77236013000
Timing Chain
32
0625062022
Ball Bearing 6202 C0 2
33
77230058000
Needle Bearing Nk16/16
34
0472300120
Circlip 30x1, 2
35
81235055020
Water Pump Rotor
36
61230045000
Cap Nut M6 Stainless Steel
38
0760153045
Shaft Seal Ring 15/30/4, 5 Baud
39
77235053000
Gasket For Water Pump Cover
40
77235052000
Крышка водяной помпы
41
0025060256
Воротник Винт M6x25 Tx30
43
0603061001
Cu-seal Ring Din7603-6x10x1
44
0770010010
Кольцо 10,00x1,00
45
77336008010
Holding Bolt
48
77236081000
Angle Piece F. Breather System
49
81235055110
Disc Water Pump
