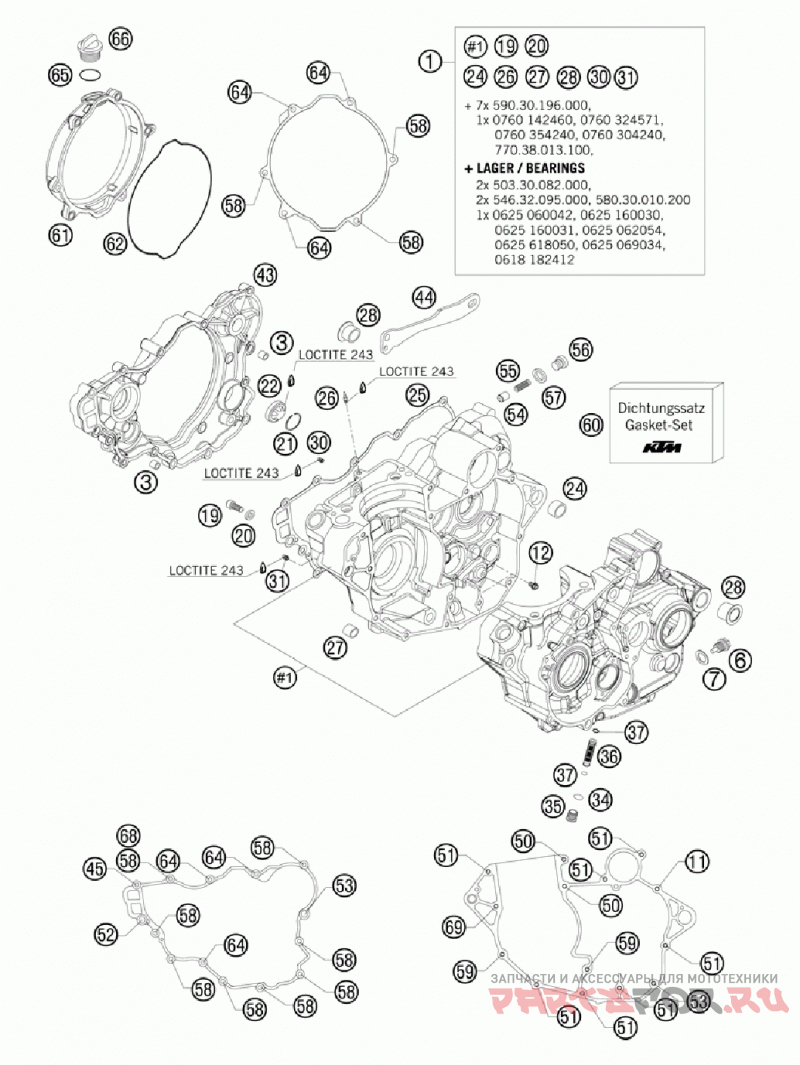

Картер двигателя

KTM 250 XCF-W SD ENGINE

KTM
#oem кодцена
1
77030100144
Engine Case Cpl. Exc-f/xc-f 07
3
49030090000
Шпонка 9, 8 Х 7 Х 10
6
58030021000
Пробка сливная с магнитом M12x1,5
7
58038022000
Кольцо 12x18x1, 5
11
0025060456
Hh Collar Screw M6x45 Tx30
12
0025060086
Hh Collar Screw M6x8 Tx30
19
58030080000
Locating Screw M8 L=23
20
58030081000
Cu-seal Ring 8 X 14 X 3
21
61030019050
Стопор
22
59030019000
Стекло - уровень масла
24
59030024000
Dowel 17 X 19 X 12
25
77030025100
Gasket For Clutch Cover 05
26
60030064070
Oil Jet 70 M6x0, 75 Ws8 03
27
54630027000
Dowel Bushing 13, 8x11x12
28
75030010000
Case Bush
30
59030058000
Jet 100 Bing(44-031/180) M4
31
77030058150
Jet 44-031/150
34
0770120020
O-ring 12, 00x2, 00 Nbr 70
35
77038017000
Резьбовая пробка
36
59038015100
Oil Screen 11, 8x44, 5mm
37
0770090015
O-ring 9x1, 5 Nbr
43
7703000124415
Clutch Cover Cpl.
44
77030047100
Chain Dampersheet Exc-f 07
45
0025060356
Воротник Винт M6x35 Tx30
50
0025060656
Hh Collar Screw M6x65 Tx30
51
0025060506
Hh Collar Screw M6x50 Tx30
52
0025060406
Hh Collar Screw M6x40 Tx30
53
0025060306
Воротник Винт M6x30 Tx30
54
58038028000
Valve Piston D=10mm
55
58038023300
Pressure Spring L=25mm D=1mm
56
0908120153
Plug Din0908-m12x1, 5
58
0025060256
Воротник Винт M6x25 Tx30
59
0025060956
Hh Collar Screw M6x95 Tx30
60
77030099000
Gasket Set 05
61
7703002630015
Clutch Cover Outside 09
62
77030027000
Molded Ring 05
64
0025060556
Hh Collar Screw M6x55 Tx30
65
0770191015
Кольцо 19,00x3,00
66
58030120000
Oil Filler Cap M24x3 With O-r
68
0603061001
Cu-seal Ring Din7603-6x10x1
