Рама

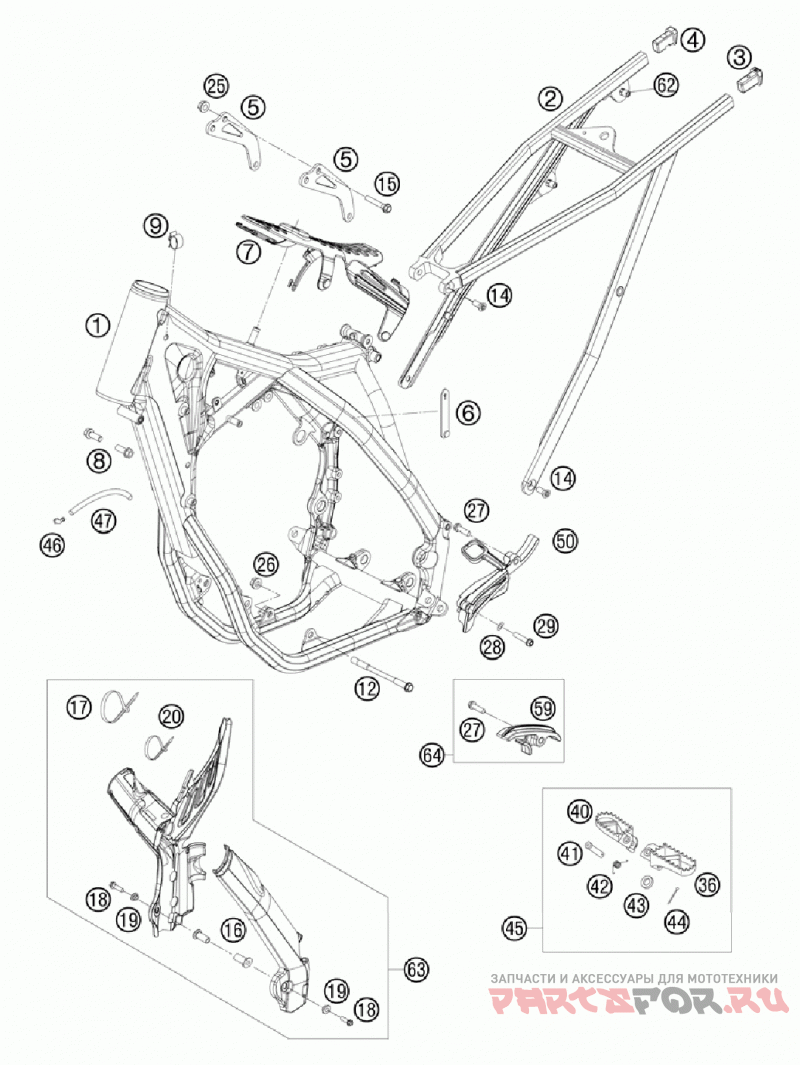

KTM 250 SX-F CHASSIS

KTM
#oem кодцена
3
78003002010
Sub Frame Application Left 08
4
78003002020
Sub Frame Application Right 08
1*
7710300100033
Frame Black "ga11"
12
54603013000
Engine Brac.scr. M10x105 Ws=13
14
0019080206S
Flat Head Screw M. Isa45 M8x20
15
56530079000
Cylinder Head Screw M8x44
16
54803092050
Blind Plug-in Nut M5 Wn 22a 03
17
44011076305
Cable Tie 300/4, 8mm Black
18
0738050250
Cou.sunk Scr. Ah Iso7380 M5x25
19
54803092060
Bush F. Frame Protection 03
2*
77203002000
Sub Frame Sx
25
54310086200
Self Locking Nut M8 10.9
26
54310086100
Self Locking Nut M10 Cu Ws=14
27
0025080306
Hh Collar Screw M8x30 Tx40
28
0125060003
Washer Din0125-a 6, 4
29
0025060406
Hh Collar Screw M6x40 Tx30
36
59003040250
Foot Peg L/s Silver 02
40
59003041250
Foot Peg R/s Silver 02
41
54803044000
Bolt For Foot Ped 03
42
54603041000
Footrest Spring L/s & R/s
43
0125100003
Washer Din0125-a10, 5
44
0094032253
Pin Din0094-3, 2x25 Steel
45
5030314013390
Footpeg L.+r. Cpl. 03
46
50303089000
Angle Piece '97
5*
77103013000
Reinforcing B. 250 Sx-f
50
77003096000
Sprocket Cover 250 Sx-f 07
6*
60011093075
Rubber Cable Tie 75mm 03
7*
77207012000
Tank Rest Rubber
8*
0025080166S
Hh Collar Screw M8x16 Tx40
9*
57013072100
Wiring Holder 16mm
20*
44011076140
Cable Tie 140/2, 5mm Black
59*
77203053000
Chain Sliding Piece Below
63*
77203094000
Plastic Frame Protection Set
64*
77203053010
Chain Sliding Kit Below Cpl.11
