Коленвал и поршень для мотоциклов KTM 450 XCW CE ENGINE (2010)

Москва и регионы России

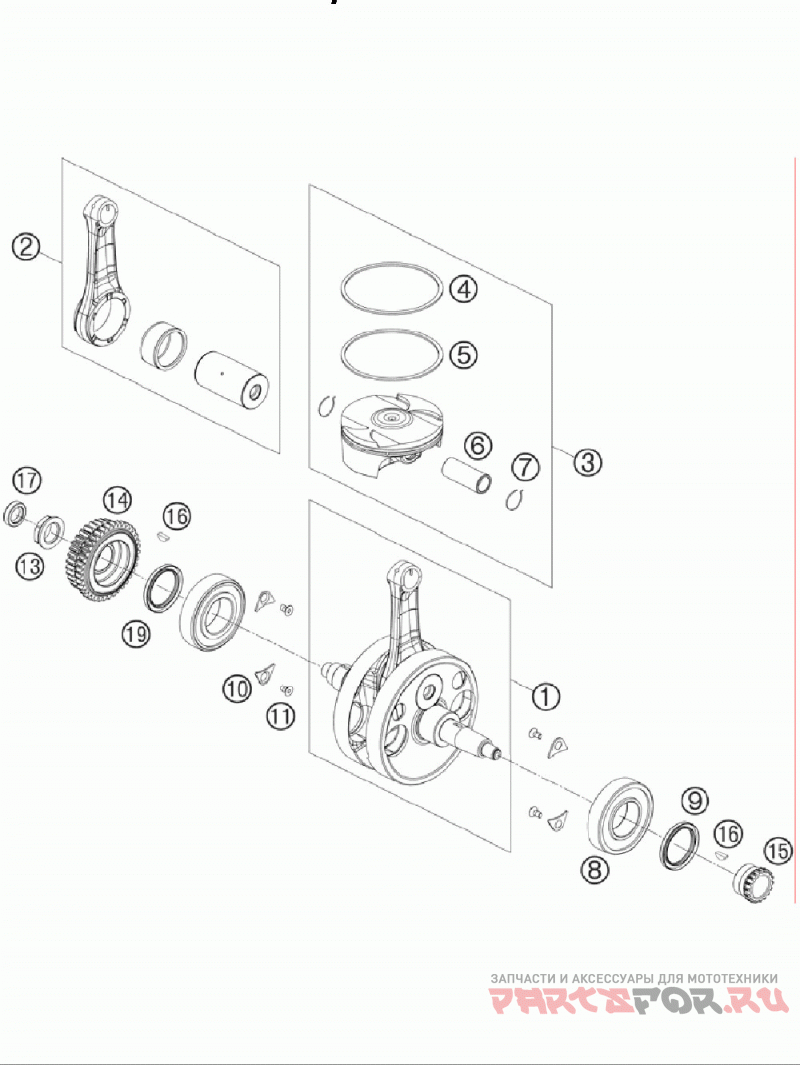

Коленвал и поршень

KTM 450 XCW CE ENGINE

Коленвал и поршень

#

oem код

название

цена

1*

Crankshaft Cpl.

Crankshaft Cpl.

2

Connect. Rod Repair Set 450 08

Connect. Rod Repair Set 450 08

3

Piston Cpl.

Piston Cpl.

3

Piston Cpl.

Piston Cpl.

4

Compression Ring

Compression Ring

5

Oil Scraper Piston Ring

Oil Scraper Piston Ring

6

Piston Pin 08

Piston Pin 08

7

Пружинное стопорное кольцо

Пружинное стопорное кольцо

8

Ball Bearing 6207 Tm-sx07e 39

Ball Bearing 6207 Tm-sx07e 39

9*

Shaft Seal Ring 35x47x7 A-duo

Shaft Seal Ring 35x47x7 A-duo

10

Retaining Plate F. Cs Bearing

Retaining Plate F. Cs Bearing

11

Int. Torx Flat Head M 5x10 8.8

Int. Torx Flat Head M 5x10 8.8

13*

Nut Primary Wheel

Nut Primary Wheel

14*

Primary Wheel

Primary Wheel

15*

Timing Gear 18t.

Timing Gear 18t.

16

Woodruff Key Din6888-3x3, 7

Woodruff Key Din6888-3x3, 7

17

Shaft Seal Ring 14x24x6 B

Shaft Seal Ring 14x24x6 B

19*

Shaft Seal Ring 35x47x7 Viton

Shaft Seal Ring 35x47x7 Viton

3

Piston Cpl.

Piston Cpl.
