Головка цилиндра для мотоциклов KTM 250 XCFW CE ENGINE (2010)

Москва и регионы России

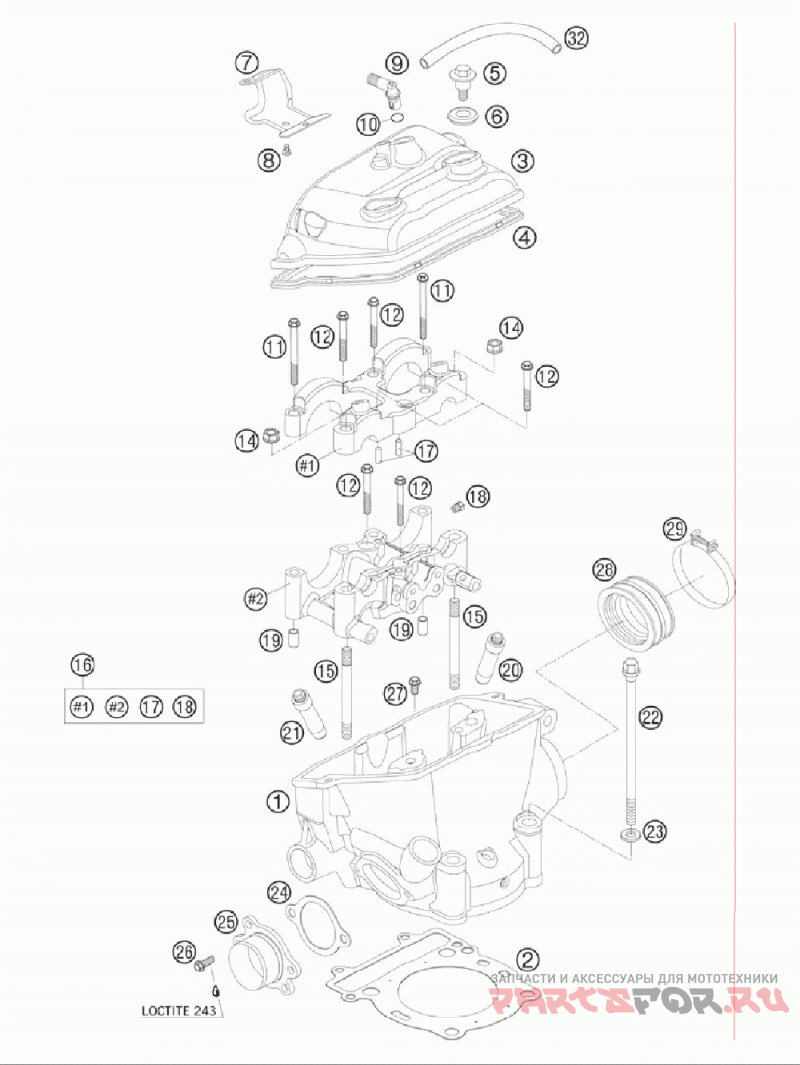

Головка цилиндра

KTM 250 XCFW CE ENGINE

Головка цилиндра

#

oem код

название

цена

1

Cylinderhead Cpl. 07

Cylinderhead Cpl. 07

2

Cylinder Head Gasket 05

Cylinder Head Gasket 05

3

Valve Cover 06

Valve Cover 06

4

Valve Cover Gasket 05

Valve Cover Gasket 05

5

Valve Cover Scr. M6x12 Ws10 07

Valve Cover Scr. M6x12 Ws10 07

6

Rubber Gasket For Screw 05

Rubber Gasket For Screw 05

7

Cover Plate Breather 05

Cover Plate Breather 05

8

Special Screw M 5, 0x10

Special Screw M 5, 0x10

9

Angle Connector Lc8 03

Angle Connector Lc8 03

10

O-ring 8x2 Silicone

O-ring 8x2 Silicone

11

Special Screw M7x73 Ws 10

Special Screw M7x73 Ws 10

12

Special Screw M7x40 Ws10

Special Screw M7x40 Ws10

14

Collar Nut 7x1 05

Collar Nut 7x1 05

15

Stud 7x1 05

Stud 7x1 05

16

Bush Support A.bridge Cpl '05

Bush Support A.bridge Cpl '05

17

Needle Roller Din5402 5x9, 8

Needle Roller Din5402 5x9, 8

18

Oil Jet 50 05

Oil Jet 50 05

19

Dowel(bush Bridge)7/9/8 05

Dowel(bush Bridge)7/9/8 05

20

Valve Guide Intake

Valve Guide Intake

21

Valve Guide Outlet

Valve Guide Outlet

22

Cylinder Head Screw 05

Cylinder Head Screw 05

23

Washer 10, 8x18, 8x1, 5

Washer 10, 8x18, 8x1, 5

24

Gasket Exhaust Flange 06

Gasket Exhaust Flange 06

25

Exhaust Flange Cpl. 05

Exhaust Flange Cpl. 05

26

Hh Collar Screw M 6x20 Ws=8

Hh Collar Screw M 6x20 Ws=8

27

Hh Collar Screw M 6x25 Ws=8

Hh Collar Screw M 6x25 Ws=8

28

Intake Boot 06

Intake Boot 06

29

Clamp D=56mm B=9mm M4x25

Clamp D=56mm B=9mm M4x25

32

Engine Breather Tube

Engine Breather Tube
