Карбюратор для мотоциклов KTM 105 SX ENGINE (2010)

Москва и регионы России

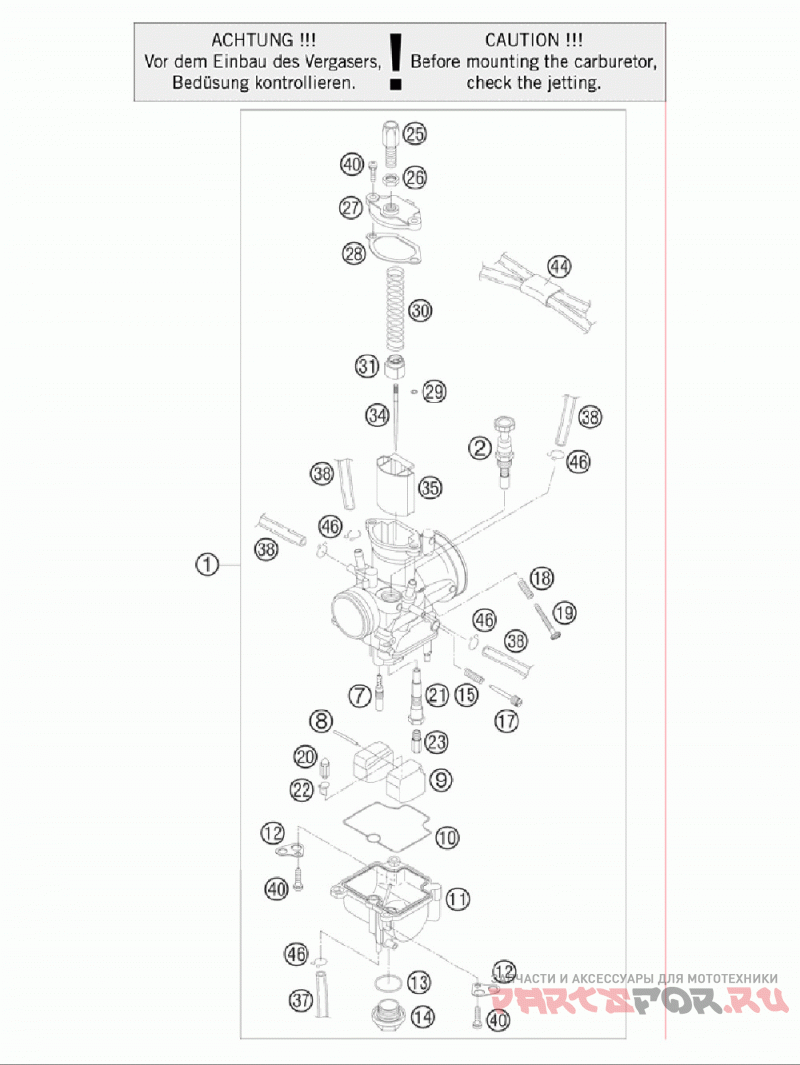

Карбюратор

KTM 105 SX ENGINE

Карбюратор

#

oem код

название

цена

1

Carburetor Keihin Pwk 28 2003

Carburetor Keihin Pwk 28 2003

2

Starter Piston Cpl.

Starter Piston Cpl.

7

Idle Jet 45 Keihin

Idle Jet 45 Keihin

8

Arm Pin Float

Arm Pin Float

9

Float Cpl. Pwk28 03

Float Cpl. Pwk28 03

10

Float Chamber Gasket

Float Chamber Gasket

11

Float Chamber Pwk28 03

Float Chamber Pwk28 03

12

Retaining Plate For Bleeder

Retaining Plate For Bleeder

13

O-ring 18, 00x2, 30 Nbr 70

O-ring 18, 00x2, 30 Nbr 70

14

Plug M 18x1

Plug M 18x1

15

Spring For Adjustment Screw

Spring For Adjustment Screw

17

Регулировочный Винт

Регулировочный Винт

18

Пружина

Пружина

19

Adjustment Screw M 5

Adjustment Screw M 5

20

Float Needle Cpl.

Float Needle Cpl.

21

Needle Jet

Needle Jet

22

Clip For Float Valve

Clip For Float Valve

25

Adjustment Screw M 6x0, 75

Adjustment Screw M 6x0, 75

26

Hexagon Nut M 6x0, 75 Din0439

Hexagon Nut M 6x0, 75 Din0439

27

Carburetor Cover Pwk28 03

Carburetor Cover Pwk28 03

28

Carburetor Cover Gasket Pwk28

Carburetor Cover Gasket Pwk28

29

Clip For Jet Needle

Clip For Jet Needle

30

Throttle Valve Spring

Throttle Valve Spring

31

Spring Cap

Spring Cap

34

Jet Needle N5hg Keihin

Jet Needle N5hg Keihin

35

Throttle Valve 3, 5

Throttle Valve 3, 5

38

Pvc-hose 4x6mm

Pvc-hose 4x6mm

40

Hh Collar Screw M 4x16 Ws=6

Hh Collar Screw M 4x16 Ws=6

44

Plastic-clip

Plastic-clip

46

Clamp 6 Mm

Clamp 6 Mm
